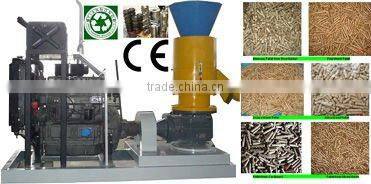

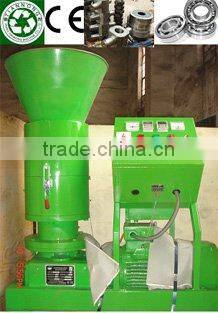

Pellet Press for Small Flat Die MZLP200,300,400

Specifications

MZLP-Series Flat Die pellet press is for farm need with lower output which includes MZLP-200 with output 50-100kg/1hour; MZLP-300 with output 150-250kg/1hour; and MZLP-400 with output 250-350kg/1hour.

 All pure wood sawdust with humidity 14% can suitable for this

machiney.

  Features of MZLP-Series Flat Die Pellet Press from KL-Series and PK-Series:

1. The mechanical strength of MZLP-Series Flat Pellet Press is 3-4 times than our domestic KL-Series / 9PK-Series which are mainly used to make animal feedstuff, while our MZLP-Series is designed specially to make biomass/wood pellet.

2. The life of the roller and template on MZLP-Series pellet press can get to 300-500 hours which is 2 times longer comparing with the domestic manufactures. The raw material of our spare parts is from 20CrMnTi or 40Cr.

3. All the electrical spare parts of MZLP-Series pellet press have CE Certificate.

4. We match the special reducer on MZLP-Series pellet press  which can guarantee the density and good quality of wood pellet.

5. We can make pure wood pellet without any additives and the density of wood pellet is 1.1-1.4.

PELLET STANDARDS:

Fines (fine particles)......1% maximum through a 1/8” screen

Bulk Density..................40 pound per cubic foot minimum

Ash Content..................1% maximum (Premium grade)

                   ..................3% maximum (Standard grade)

Moisture Content...........8% maximum

Heat Content.................approximately 8200 Btu per pound minimum

6. We have CE certificate on our all MZLP-Series Flat Die Pellet Press.

7. We have the self-protection device on our MZLP-Series Flat Die Pellet Press, when the running temperature of pellet machine is over the set normal standard, our machine will stop automatically. It is easier to the fresh operators.

8. The Electricity Consumption of MZLP-Series Flat Die Pellet Press will save 30-50% electricity.

9. The inside structure of MZLP-200 is the Roller Fixed and Template Rotating, while MZLP-300/400 is the Roller Rotating and Template fixed. So MZLP-300/400 is easier to pelletize the loose and light raw material, while MLZP-200 is easier to pelletize the hard material.

Hope our  pellet press can meet  your satisfaction more!thanks! Selina
