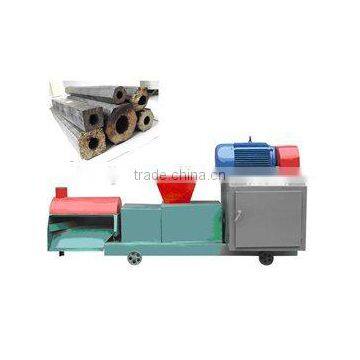

                                                                        Charcoal Briquette Machine


Instruction Of Charcoal Briquette Machine :

Wood briquette machine is the process of converting substantial biomass wastes into high density and energy concentrated bio fuel briquettes. Biomass briquettes are one kind of ultimate green energy source of renewable energy. And the biomass briquettes are non-conventional source of energy, renewable in nature, eco-friendly, non-polluting and economical. In the whole process no binders and chemicals are needed, 100% natural ensured. The higher density, the higher heating value, the biomass briquettes calorific value is up to 3000-4000 Cal/kg. Compared with fire wood and loose biomass, the briquettes show much higher heat because of lower moisture and higher density.

Wood briquette machine are widely used in boilers, refractory, chemicals, home heating, etc. They become more and more popular as fuel all over the world

Flowchart of  Charcoal Briquette Machine :

Crushing---drying---briquetting---carbonizing---final products

Our biomass wood /charcoal briquette machine is equipped with automatic temperature controlling system. The final briquettes are cylindrical or square, whose diameter range is 30-90 mm. The main parts include forming mould, propeller, inner sleeve and heating circle. Our biomass wood /charcoal briquette machines can be operated 24 hours a day.

Characteristics Of Charcoal  Briquette Machine:

1. Crush the raw material into small pieces (diameter is about 3-5mm)

2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%

3. Put the material into feed let of briquette machine

4. Produce the briquette stick from biomass material without any additive

5. Carbonized the briquette stick

Main Technical Parameters:
