No Pollution ISO Approved Carbonization Furnace / Carbonization Stove / Wood Charcoal Carbonization

No pollution ISO approved carbonization furnace / carbonization stove / wood charcoal carbonization

Simple description:

1.Airflow charcoal carbonization furnace;
2.High efficiency;
3.Anoxic distillation device;
4.Capacity:1.5t/day.
5.Good quality.

Product details of carbonization furnace:

This carbonization furnace is ideal equipment for wood briquettes to have anoxic distillation carbonization.

The gas produced inside the carbonization chamber flows down through

the vertical pipes visible on the outside of the stove. These pipes deliver the gas to the firebox under the

chamber to aid combustion and continue heating the carbonization chamber from the outside.

Introduction

Carbonization furnace (gas flow type) is our newest developed products with 3 patents (200610017704.5,

200630100340.8, 200620031713.5), and adopts advanced hot air carbonizing processing technology, which

greatly increased carbonizing ratio (increased from about 88% to 99%) and shortened the carbonizing time

 ( from 24 hours to 6 hours), and shows the features of easy operation, higher safety, high efficiency, and energy saving.

Working principle:

1.Charcoal Stove to gas furnace for heat-grown, use of methane gas through the cyclone, with air into the burner. Combustor outlet temperature can reach to 800°C ~ 1200°C, the flow rate up to 3 to 5 meters per second, resulting in high temperature air in the combustion chamber external heating.
2.Note: during heating, furnace temperature at 100 °C ~ 150 °C maximum humidity when the furnace, per kilogram of fuel rods into the kiln, the into 4 ~ 8% water, 1700kg of raw materials can be brought more than 100 kg of water, the water were is the enemy of carbonization.
3.Because charcoal fuel rods fear damp, wet or crushed into powder, seriously affected the quality of carbonization, so the system is essential tide row key, behind tide time 1 ~ 1.5 hours.
4.When the carbonization chamber furnace temperature rose to 300 °C, the furnace produced a large number of combustible gases. In theory, per kilogram of raw materials can produce 3 cubic methane gas, the gas temperature for carbonization, drying heat source to use, free to adjust the level of furnace temperature, low temperature carbon is generally more than 400 °C (8 hours to complete), high temperature carbon above 600 °C (10 hours to complete)

Main parameters

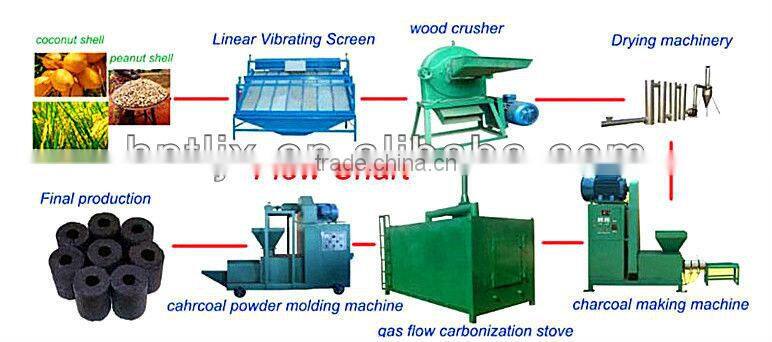

The flow chart of producing charcoal

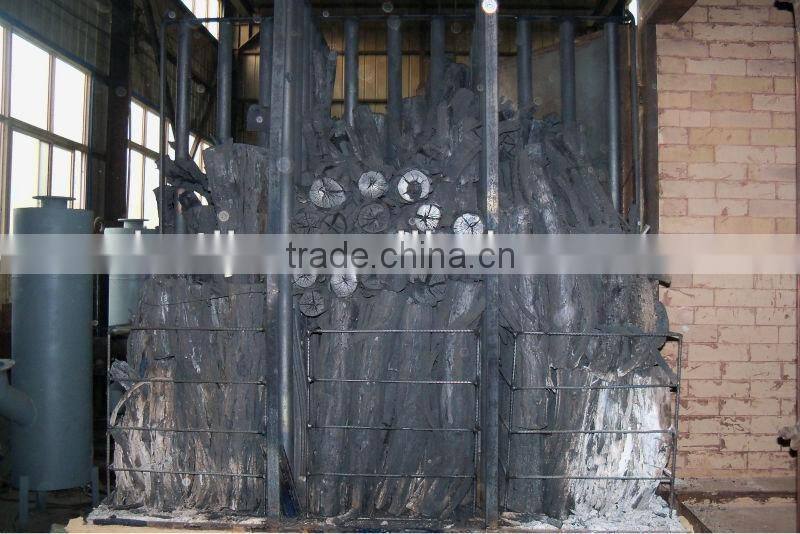

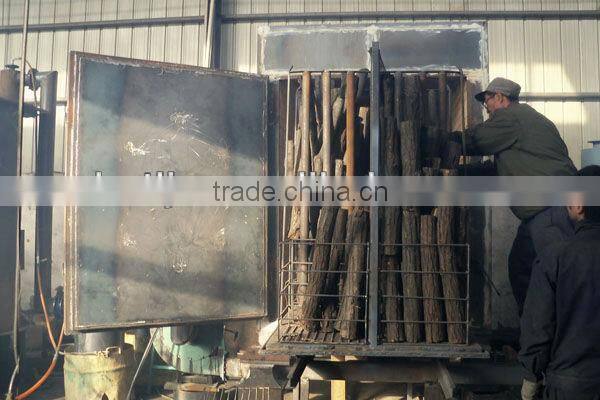

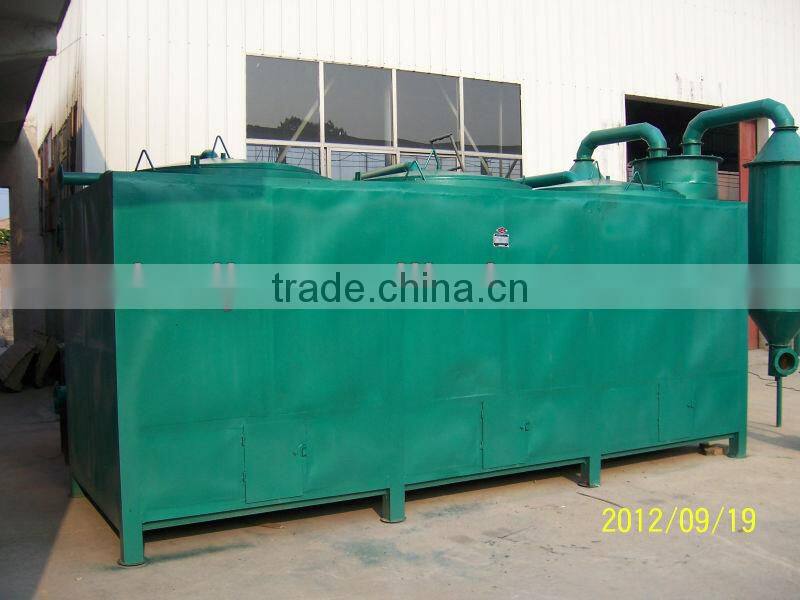

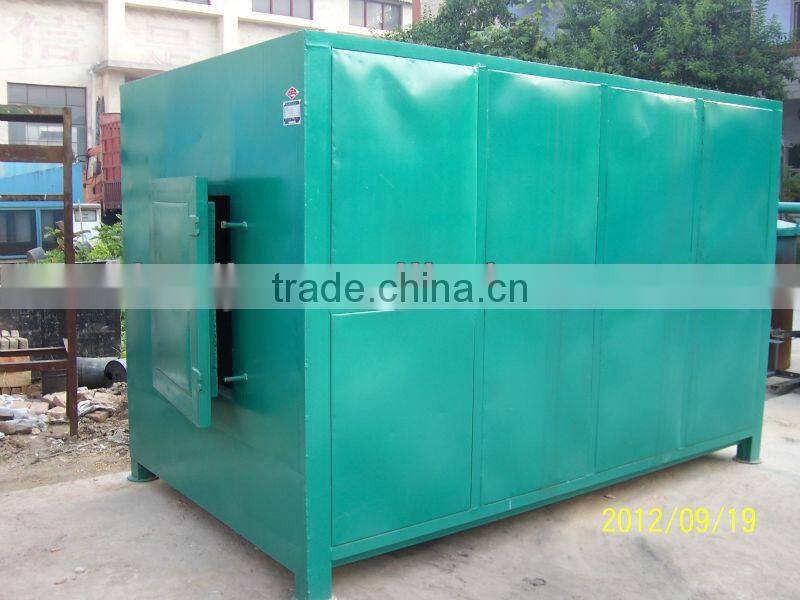

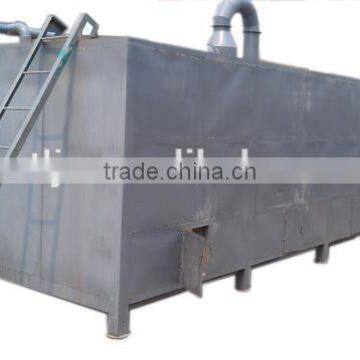

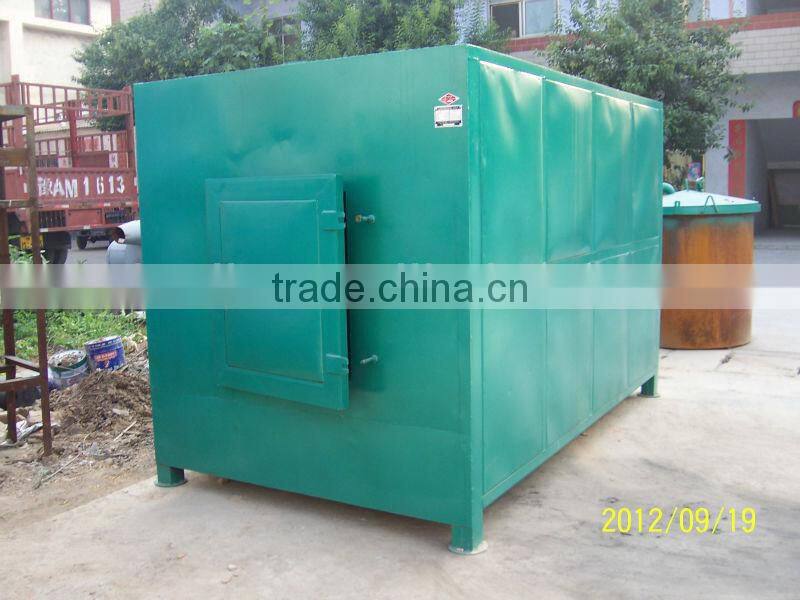

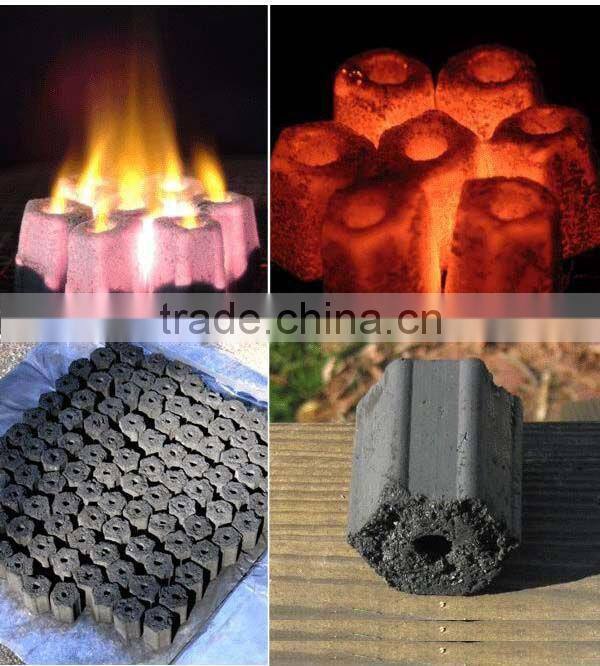

Related pictures

Here're some basic things about our machines, if you want to know more about them, please contact me. I will reply to you in 24 hours.

Looking forward to cooperating with you.
