Multi Function High Capacity Industrial Sawdust Dryer
- Qingdao tianjin Shanghia Shenzhen Urumchi Manchuria etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, Rotary Drying Equipment, Rotary drum dryer | |
| Place of Origin | Henan, China | Brand Name | DX | |
| Model Number | 400,620,950 | Voltage | 380V 3phase 50HZ | |
| Power(W) | 4 - 22kw | Dimension(L*W*H) | 15.6X0.62X3.3m | |
| Weight | 2-6T | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Industrial sawdust dryer
Our Industrial sawdust dryer is our new design, high efficiency, big capacity product, which is applied to reduce moisture content of materials such as sawdust, straw, stalk, corn, etc biomass materials, mineral ores, chemicals, biomass, construction materials and etc.
It canuse coal, wood wastes, oil, gas as fuel to heat.

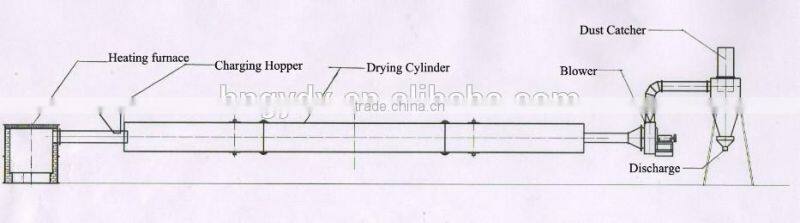

How the machine works:
In this system, wet material is put into the hopper. At the same time fuel furnace produces large volume of hot air, which is
driven into steel pipes, mixed with wet sawdust and attracted through curving pipes and drying chamber by the power of fan blower.
Fast moving hot air sustains and is mixed with raw material sent by spiral feeder in the suspending state through the steel pipe,
and moisture evaporates asthe material traverses along the steel pipe and is rendered dry at the discharge end.
Structure Features:
1. Adopt rolling drum feeding method. Drying is uniform and the motor power is small.
2. Heat supply is external indirect heating method and avoid raw materials burning in high temperature.
3. Equipped special parts in the tail of rotary dryer, only the material that to reach the drying standard can be drove out by blower, ensuring the drying purpose.
4. The machine attached dust catcher equipment in discharge hole so as to separate material and moisture, and reduce the dust in workshop at the same time.
Data of our Industrial sawdust dryer:
| Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
| 600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
| 800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
| 1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
| 1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
| 1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
| 1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
| 1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
| 2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
| 2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
| 2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
| 2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
| 3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
| 3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
We can design different inners depends on your materials:
Regarding delivery, we will choose the most suitable way to ship your machine. Send it directly by truck, or load it into shipping container directly.
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you.
In addition, we provide 2-years warranty to make sure your machine runs consistently.
We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit us at any time! Hope to cooperate with you happly!
In order to recommend most suitable models for your reference and send you reasonable quotation, could please give us more information about your detailed requirement as follows:
--- What is the raw material to be dried?
--- What is the feeding moisture before drying and your required moisture after drying?
--- What is required capacity(t/h)?
