Home > Products > Wood drying machinery > Carbon Steel Sawdust Drying Equipment With ce Iso
Carbon Steel Sawdust Drying Equipment With ce Iso
- tianjin qingdao shanghai urumchi manchuria
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Agricutural Equipment Carbon Steel Biomass Dryer
-
Good Quality Good Service Cement Drying Equipment
-
Gongyi Manufacturer Dongxing Dryer Plant
-
2015 Best Price Best Quality 2 Tons Capacity Dryer Machine
-
Engineers Available to Over Seas 2 Tons Capacity Rotary Dryer
-
2015 Hot Sale Large Capacity Rotary Dryer Price
Product Details
| Condition | New | Type | Drum Drying Equipment | |
| Place of Origin | Henan, China | Brand Name | Dongxing | |
| Model Number | 600,800,1000,1200 | Voltage | 220v | |
| Power(W) | 7.5kw+7.5kw | Dimension(L*W*H) | 18.3* 0.95* 5m | |
| Weight | 5.5 t | Certification | ce, iso9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

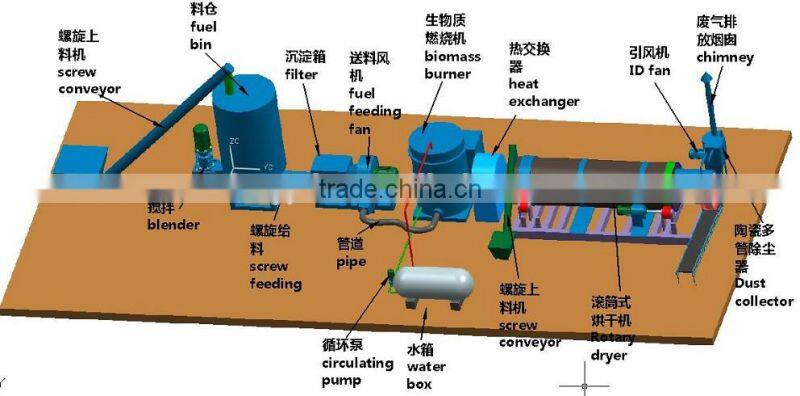

how the machine works
wet materials are sent to dryer by conveyor belt or elecator, or in order to feed materials continuously and smoothly, you can add a feeder, when installation, the drum need hava a 3-5 degree inclination to ensure the materials move from teh upper part to lower parts smoothly, in upper part, we can build up a brick heating stove or coal gas producer, making the hot air into dryer, and materials and hot airs are contacted completely, due to constantly raised and shed materials, then wet materials are dried.

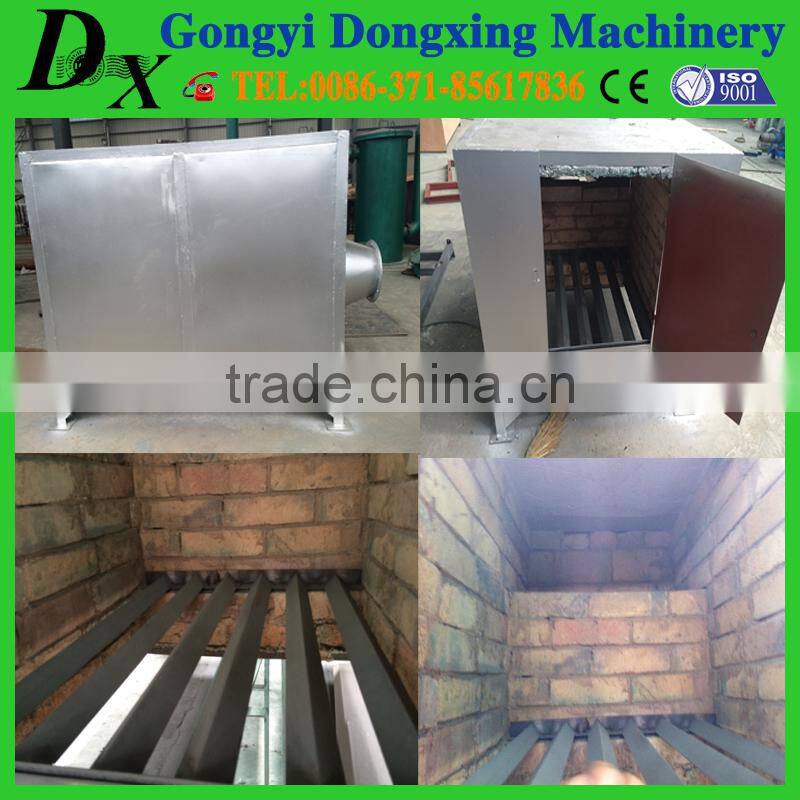

heating furnace
Components of biomass drying equipment
all the equipments consist of feeding system, heating system, transmission system, driving system, dust catching system, discharging system, electricity control system.
available materials of dryer
This device applies to material such as rice shell, saw dust, ground wood chip, tree branch and wood bits, etc (Diameter is less than 3mm; Length, 5mm).
datas of dryer
| Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
| 600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
| 800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
| 1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
costomers from all over the world
2. We can design the machine and provide drawing paper depends on your facts
3. Engineer available to install machinery overseas
4. We will pick you up at airport or railway station when you come to visit our factory
Company uphold: honesty, quality first, customer first for the purpose.
Gongyi Dongxing Machinery company is specialized in the import, export and wholesale biomass charcoal machinery production line, like: wood crusher, sawdust dryer, briquette machine, and carbonization stove,etc. The final briquette or charcoal are best fuel for barbecue or boiler. We have the belief that chance favors the minds who are prepared, so in our company, every worker keeps studying.
Our aim is to supply the market with top quality charcoal equipment, and provide best service and best price for our customer.
Welcome to visit us or free consultancy, networking, and knowledge sharing.
Your trust will give us great help.
Before buying ,can you tell me:
1.What's your raw material and the moisture of the materials ?
2.What's the final moisture after drying you need ?
3.What's the production capacity you want? How many tons or cubic meters per hour?
