Industrial Vibrate Sieve Machine/screening Machine for Powder,liquid
- qingdao
- T/T Credit Card
You May Like
-
Hot Sale Professional Factory Supply Complete Nail Screw Machinery Line Nail Making Machine Price
-
Automatic Iron Nail Making Machine/nail Forming Machine
-
Top Quality Automatic Used Nail Making Machines With Best Service(whatsapp: +86 15238020758)
-
Automatic Industrial Nail Making Machine With Chinese Factory Price
-
Roofing Nail/common Nail/nail Making Machine With Best Price
-
Manufacture Low Noise Cheap Price Nail Making Machine
Product Details
| Condition | New | Type | Other, vertical | |
| Application | Other, filtering liquid and powder, filtering powder,liquid | Place of Origin | Henan, China | |
| Brand Name | HongXin | Model Number | CZ | |
| Voltage | Required | Power(W) | 0.25-2.2kw | |
| Dimension(L*W*H) | 1060*1230*990mm | Weight | 180KG | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Overseas service center available |
Product Description

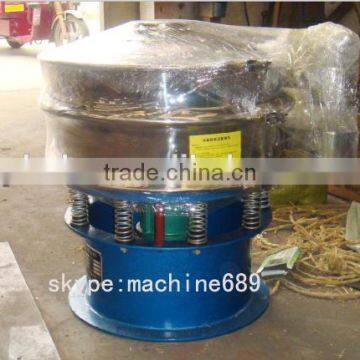

Industrial vibrate sieve machine/screening machine for powder,liquid

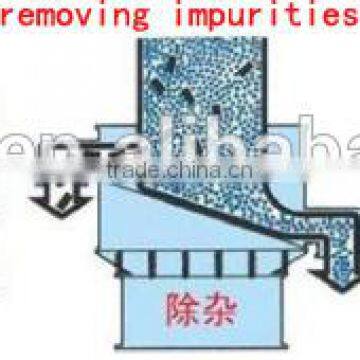

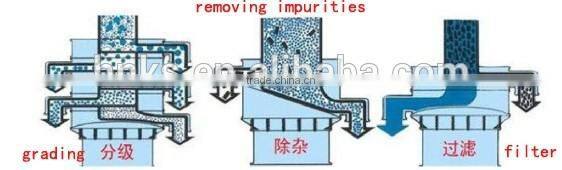

Special vibrating screen can be filtered in a certain range of size, powder,liquid and mucus. It is specialized in the use of liquid, slurry, mud, resin slurry and other materials. Screening range can be from 500 mesh to 0.028mm. The efficiency is high, the design is exquisite and durable, easy to change the net, the operation is simple, easy to clean. The screen was used for a long time, changing the net fast, only 3 - 5 minutes. Small size, space saving, easy to move. Spare parts:U type apron(1piece);spring(1 pieces);wrench(1 pieces);vibrating screen base(4 pcs);rubber hammer(1 piece).
Technical Parameters:
Mold | Power | Screen diameter | Screening area | Dimension | Screen QTY | |
CZ-400 | 1F | 0.25 | 350 | 0.091 square meter | 440*580*580mm | 1 |
2F | 440*580*680mm | 2 | ||||
3F | 440*580*780mm | 3 | ||||
CZ-600 | 1F | 0.37KW | 550mm | 0.2375square meter | 640*770*630mm | 1 |
2F | 640*770*750mm | 2 | ||||
3F | 640*770*880mm | 3 | ||||
CZ-800 | 1F | 0.55KW | 750mm | 0.4416square meter | 850*980*780mm | 1 |
2F | 850*980*930mm | 2 | ||||
3F | 850*980*1080mm | 3 | ||||
CZ-1000 | 1F | 0.75KW | 950mm | 0.7085square meter | 1060*1230*840mm | 1 |
2F | 1060*1230*990mm | 2 | ||||
3F | 1060*1230*1140mm | 3 | ||||
CZ-1200 | 1F | 1.5KW | 1150mm | 1.0382square meter | 1260*1450*920mm | 1 |
2F | 1260*1450*1090mm | 2 | ||||
3F | 1260*1450*1260mm | 3 | ||||
CZ-1500 | 1F | 1.75KW | 1450mm | 1.6505square meter | 1580*1810*1120mm | 1 |
2F | 1580*1810*1300mm | 2 | ||||
3F | 1580*1810*1480mm | 3 | ||||
CZ-1800 | 1F | 2.2KW | 1730mm | 2.3494 | 1880*1970*1400mm | 1 |
2F | 1880*1970*1580mm | 2 | ||||
3F | 1880*1970*1760mm | 3
| ||||
If you want to know more about the vibrate screening machine,pls contact Sophia:
