Sale Mixer Machine for Clay Brick
- Qingdao/ Tianjin/ Shanghai/ Ningbo/ Guangzhou/ Shenzhen port/ Yiwu city
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Full Automatic Brick Making Machine
-
Big Model Automatic Clay Brick Making Mahcine, Clay Brick Production Line Machine
-
2016 Super Vacuum Clay Brick Machine
-
China Supply Chalk Machine/dustless Chalk Machine/school Chalk Making Machine Prices/tailor Chalk Making Machine Cheap Sale
-
China Supply Chalk Machine/high Quality Chalk Making Machine Prices/tailor Chalk Making Machine Chalk Moulding Machine for Sale
-
Concrete Roof Tile Machine/concrete Roof Tile Making Machine/cement Roof Tile Machine
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | JX | Model Number | JXDW2500 | |
| Motor Power | 15KW | Mixing Power | 15KW | |
| Reclaiming capacity | 20-40m3/h | Speed of Mixing Drum | 35r/m | |
| Water Supply Mode | Automatic spray water | Discharge Way | Automatic discharging | |
| Outline Dimension | 4200*800*620mm | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Sale mixer machine for clay brick
Application:
Double shaft coal powder mixer using two symmetrical rotational symmetry axis to synchronous rotation. When conveying powder material mixing with water at the same time.
With the advantage of making the material Uniform humidifying, the material does not run dry ash, humidification without leaking water droplets, compacting the mixed material.
Constituent parts:
mainly consists of encloser, screw shaft assembly, drive unit, piping, cover, chain cover and other components.
Design features:
1.It mainly composed of sheet metal and steel.
2.water pipes mainly components of humidity over, fittings and nozzle components. The nozzle is made of stainless steel,easy to replace,corrosion and durable.By control the manual valve to adjust the moisture of the material.
3.It has six holes on both sides, to facilitate the operator usually overhaul and maintenance.
Main parameter:
Model | JXDW2000 | JXDW2500 | JXDW3000 |
Capacity(T/h) | 10-20m3/h | 20-40m3/h | 40-60m3/h |
Speed of main shaft (r/min) | 35 | 35 | 35 |
Power(kw) | 11KW | 15KW | 22KW |
Machine size | 3100*750*500 | 4200*800*620 | 4700*950*750 |
Machine weight(kg) | 1600 | 2500 | 3200 |

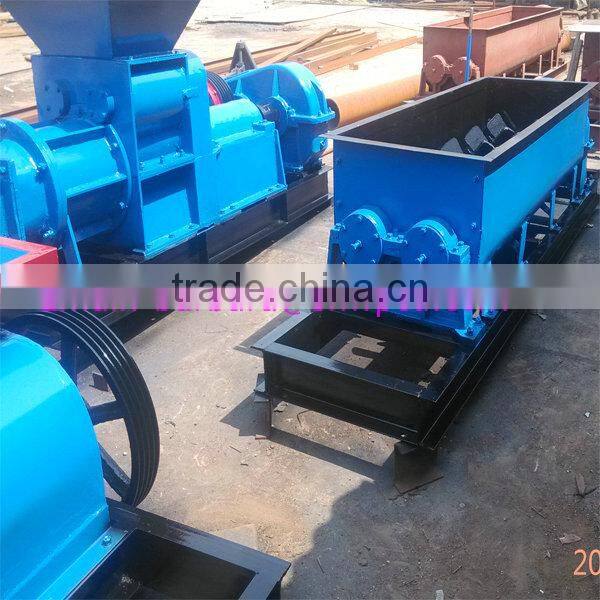

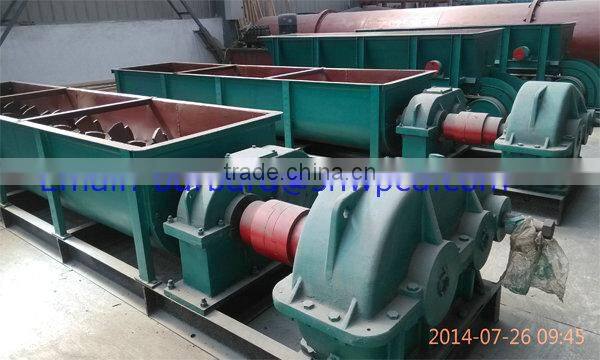

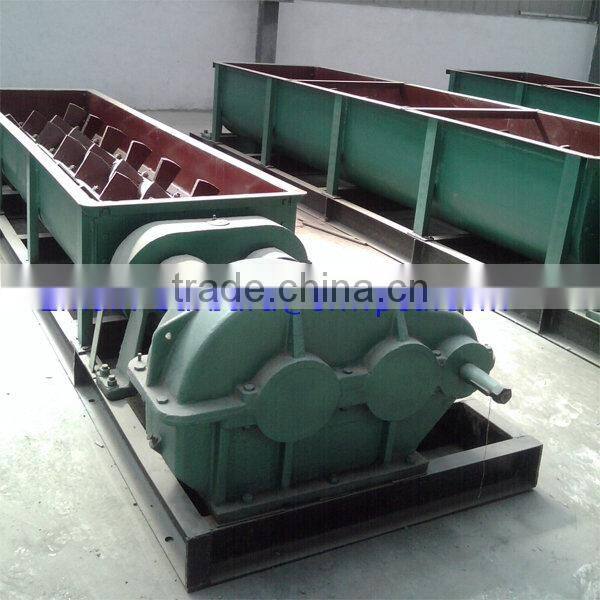

Pictures:
