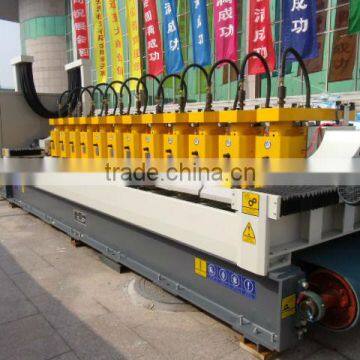

RPM09/9 granite stone polishing equipment

Equipment features:

RPM09/9 Resin Abrasive Polishing Machine is mainly used to polish the slabs with reasonable structure, stable performance and high working efficiency. It adopts PLC control and text display screen, which realizes intelligent control.

1. It adopts patent polishing disc base with long usage life, low trouble rate, high efficiency, low cost, low slab breakage and so on. It uses the resin polishing disk which is light , small consumption of power and high grinding efficiency .

2. The conveying belt is famous brand with same thickness, which assures the thickess of slab uniform.

3.The moving speed of conveying belt and crossbeam swinging is aslo adjustable by frequecy converter. It uses the air pressure to control the up-down of the abrasive disk ,and the pressure is aslo adjustable .

The main technical parameters :

1. polishing width:                             300~950mm

2. polishing thickness:                         10~30mm

3. numbers of the polishing heads:               9

4. total capacity:                               72kw

polishing head motor:                 7.5kw×9

belt drive motor:                         1.5 kw

crossbeam swinging motor:              3 kw

5. belt conveying speed:                      600~2200mm/min

6. air pressure of compressor:                 0.60~0.8Mpa

   air displacemet of the compressor        500L/min

7. pressure of the cooling water:               0.15~0.3MPa

8. water consumption of each head:             25L/min

9.overall dimension::                           5500×2200×2200mm

10. diameter of the polishing disk:                200mm

11. the effective stroke of crossbeam swinging       800mm

12. effective up-down stroke of polishing head       90mm

13. total weight                                   7000kg
