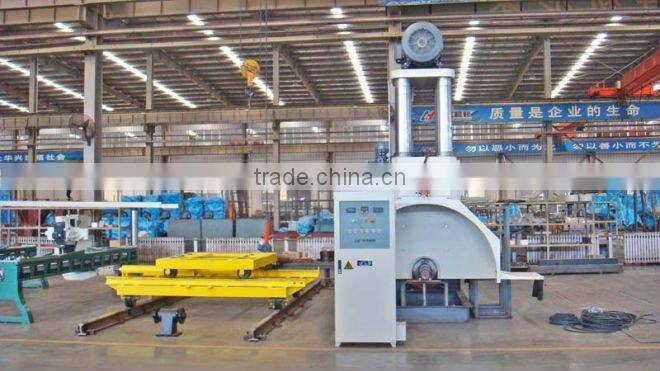

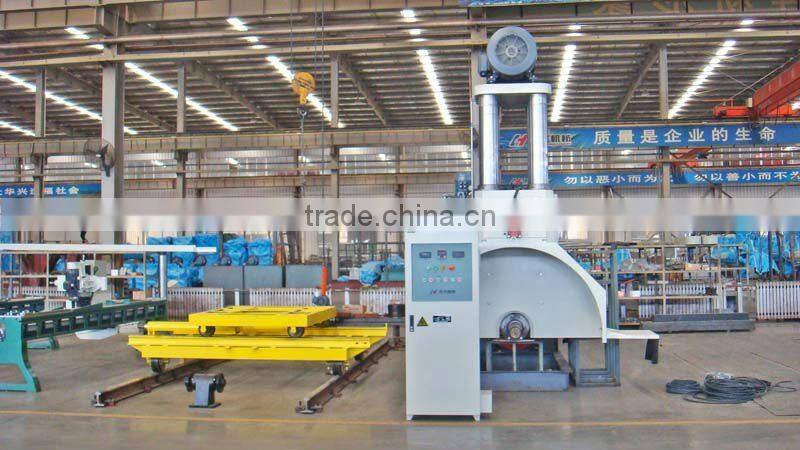

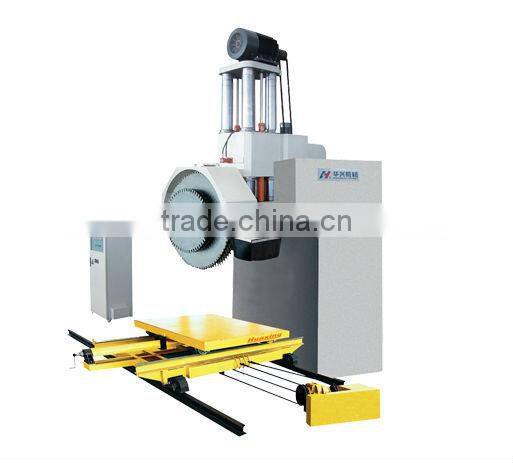

WYDJ160 Leader Hydraulic Multi-disc Stone Sawing Machine
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, stone sawing machine | |
| Use | Other, granite and marble | Place of Origin | Shandong, China | |
| Brand Name | Huaxing | Model Number | WYDJ160 | |
| Weight | 9500KGS | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.Uses and fearures
The WYDJ160 Leader Hydraulic Multi-disc Stone Sawing Machine adopts diamond cutter and high speed grinding technology, and are mainly used for cutting granite and marble etc.
a. The up-dwon part adopting column guiding with high precision and good rigidity.
b. Hydraulic up-downwith high speed and stable movement.
c. With hydraulic locking system, which can minimize the up-down system space during cutting and make the machine more stable.
d. Guide column sliding slove multi-seal with good protecting effective and long-time conservation period.
Parameter | Type: WYDJ160B | Type: WYDJ160C |
Max.diameter of the blade | Φ2200mm (Option:2600mm) | Φ2200mm (Option:2600mm) |
down trolley stroke | 4000mm | 4000mm |
Up trolley stroke | 1700mm | 1500mm |
vertical stroke | 1300mm | 1100mm |
Cutting width | 1500mm | 1200 |
Trolley area | 1850*1300mm | 1950*1400mm |
Diameter of main shaft | 120mm | 120mm |
Shaft length | 620mm | 620mm |
Max.No. of the blade | 16 pcs(φ1600×8+φ940×8) 20mm or 30mm thickness tile | 16 pcs(φ1600×8+φ940×8) 20 or 30mm thickness tile |
total power main motor hydraulic motor walking motor
| 73.5KW 65KW 5.5KW 3.0KW | 83.5KW 75KW 5.5KW 3.0KW |
total weight | 9500Kg | 9500Kg |
overall size L*W*H | 10000×7000×7000mm | 10000×7000×6600mm |
e. Enlarge the main shaft used high strength alloy steel with good rigidity and little distortion.
f. The series machines have reasonable structure, steady working conditions, easy to operate and can be equipped with multi discs.
g. It carries on a good cutting quality without mechanical breakage and high efficiency with lower cost.
