High Quality Low Price Industrial Steel Structure Chicken Coop

System

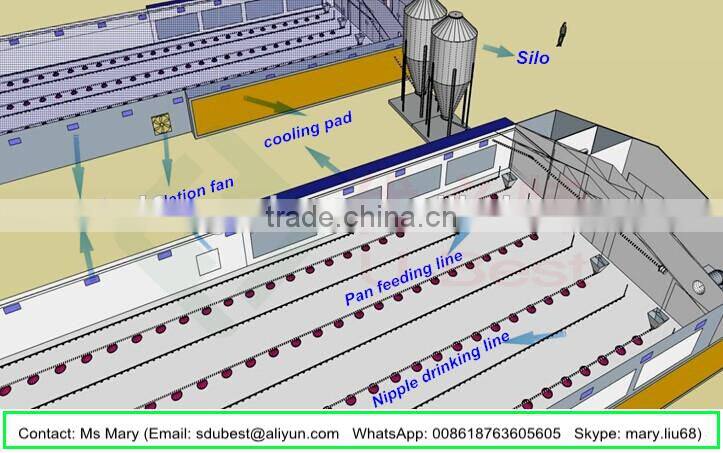

Main Function

1.Main feeding system

Convey feed from silo or manpower hopper into each feedling line hopper automatically.

2.Pan feeding system

Convey feed into each feed pan automatically.

3.Nipple drinking system

Supply clean water to each nipple steadily, the water will be out easily when birds touch nipples and chicken can drink water from 360 degree freely.

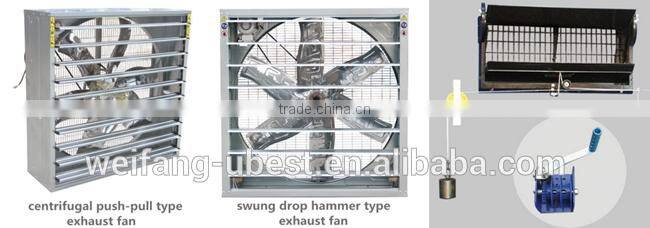

4.Ventilation system

Control climate condition, provide fresh air, proper temperature and humidity for different satge chickes, ensuring your chickens provide maximum production.

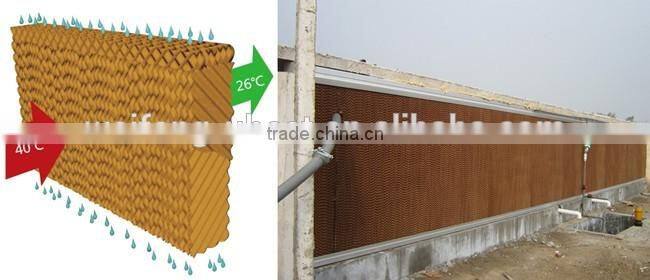

5.Cooling pad system

When the air goes through cooling pads, the heat will be taken down by the evaporation of water, so the air will be cooled before going into your chicken coops.

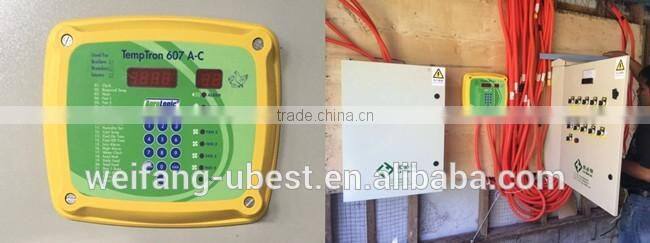

6.Environment control system

Control the temperature in chicken coop by controlling ventilation fans, cooling pads, air inlet

windows and heaters automatically, also control the light, water and feeding.

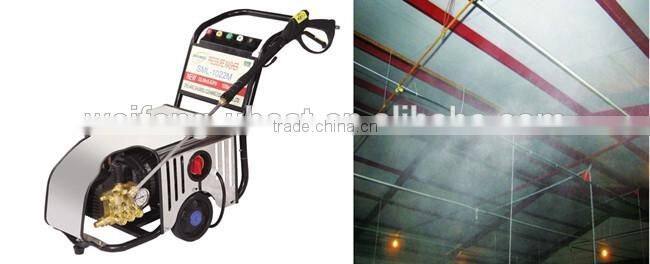

7.Spraying system

Reduce temperature, increase humidity, clean your chicken coops, disinfect your coops.

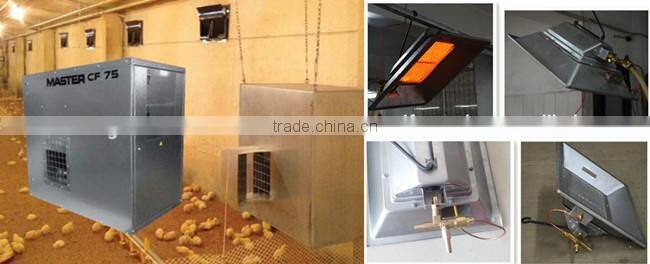

8.Heating system

Warm your chicken coop, provide heating for day-old chicks.

Feed silo

(Option 1)

Manpower hopper

(Option 2)

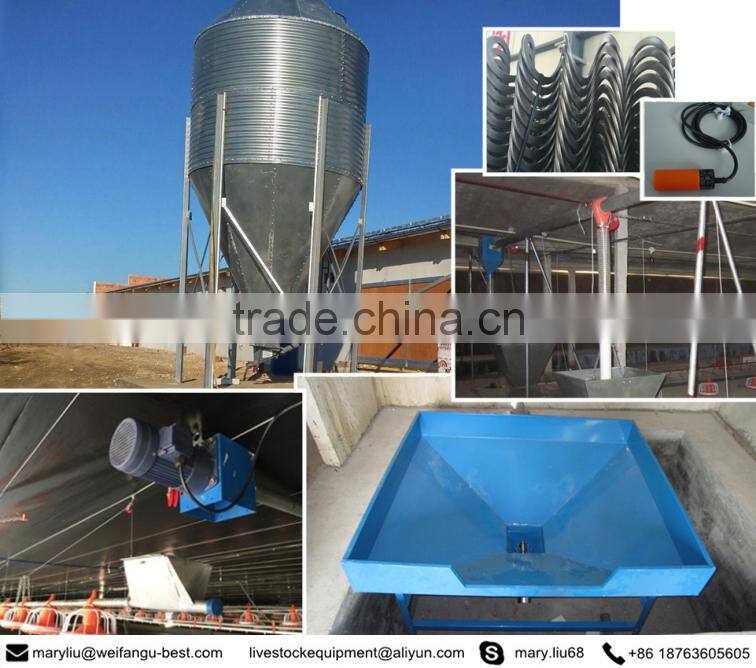

Feed silo:

1). Silo with standard ladder and guard railing, safe and reliable;

2). Firm connection and good sealing performance;

3). Galvanized steel sheet, more than 10 years service life.

4). Size: 3T, 5T, 8T, 10T, 15T, 18T, 20T.

Manpower hopper:

1). Galvanized steel sheet;

2). Size: 600Kg, 800Kg

Power: 0.75Kw

Voltage: 380V/220V/customized, Three-phase/Single-phase

Frequency: 50Hz

Feed conveying pipe

with auger inside

Diamater of conveying pipe: Φ75mm, Material:PVC

Helical spring auger: imported from South Africa, feed ability:1400Kg/h

Conveying length:60m

Vice hopper

Size: 70Kg, 90Kg;

Material: hot-dip galvanized sheet, thickness: 1mm

Drving motor

Power: 0.75Kw/1.1Kw/1.5Kw,

Voltage: 380V/220V/customized, Three-phase/Single-phase

Frequency: 50Hz, AC current

Feed pipe:

Diameter of feed pipe:Φ45mm

Material: hot-dip galvanized sheet pipe with the zinc coating amount—more than 275g/m2.

Helical spring auger: imported from South Africa, feeding ability:400Kg/h

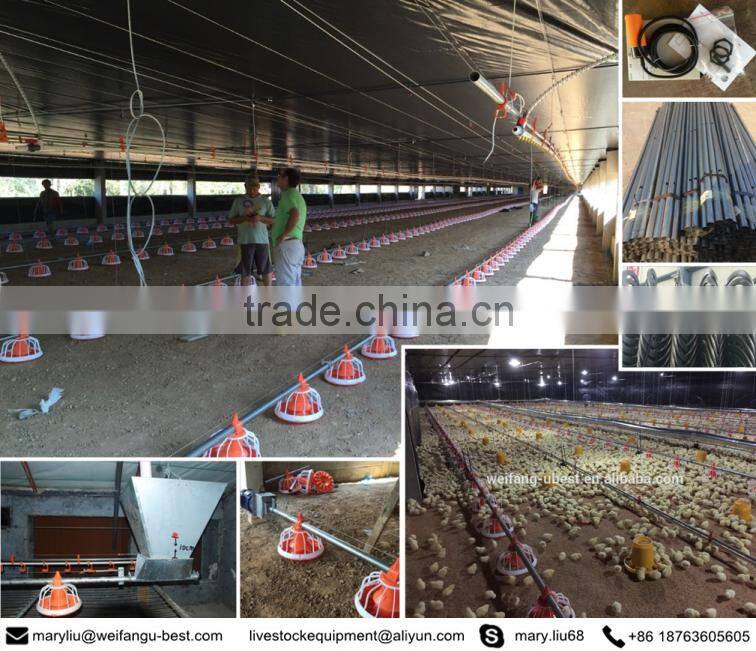

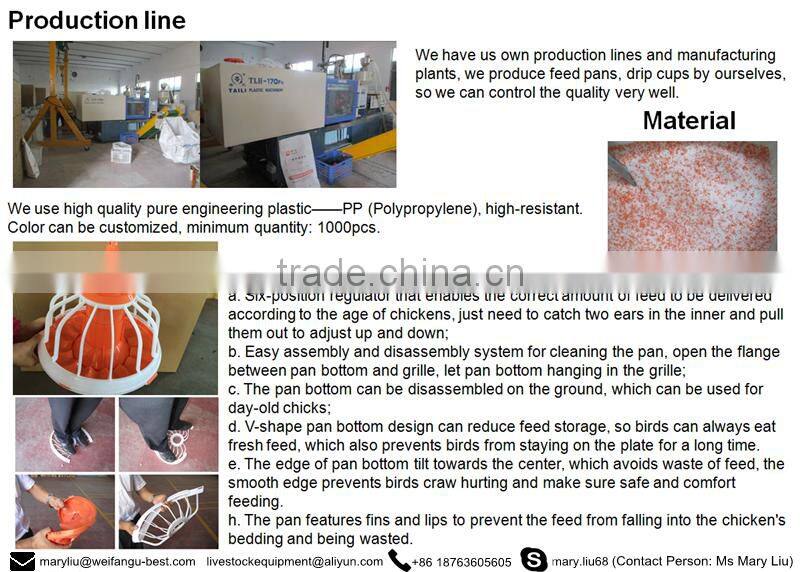

Feed pan:

Feeding line specification: 4 feed pans/3m, 3 feed pans/3m

Feed pan capacity: 50-55 broilers/pan

imported from Germany, time delay range: 0-2hours

The sensor is usually installed at the end of each feeding line which controls motor on and off to achieve feed delivery automatically. The motor will start working and convey feed when sensor doesn't touch feed and will stop working when sensor touchs feed.

It's very convenient to adjust the feeding line height by winch.

Waterline front system

Front part is controller of water, which is usually installed in control room.

*Pressure regulating valve: to make sure to supply stable water to drinking lines.

*Filter: clean water and avoid blocking nipples.

*Water meter: to measure water usage volume.

*Doser(Medicator): add medicine to drinking system automatically to prevent disease.

Regulating stability;

High switching performance;

Water supply is sufficient&equality;

Recoil cleaning with good cleaning result,save time and water;

Good quality movable valve, easy to change.

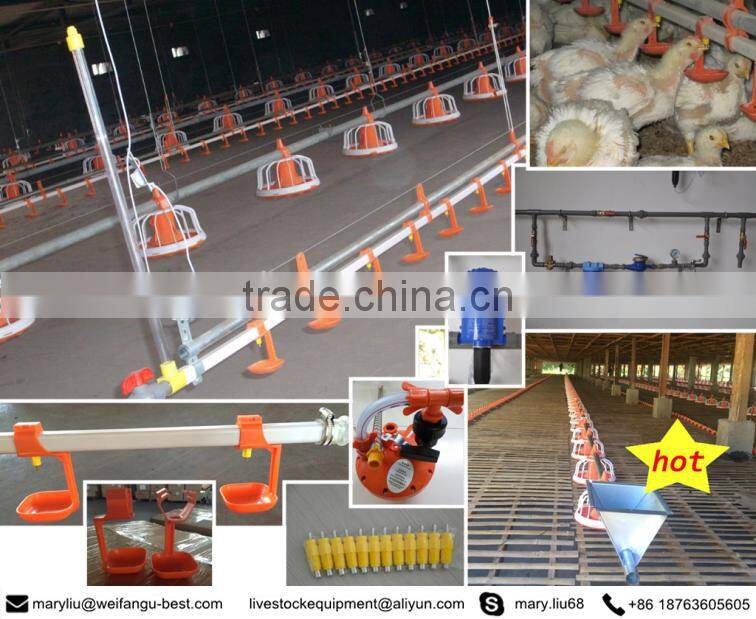

Nipple drinking lines

Nipple:

The outside shell is made of high quality plastic, the valve rod is made of high quality stainless steel.

a. Anti-corrosion, service life over 10 years;

b. Double-sealing structure, avoiding water leakage and its bad influence to chicken house;

c. Valve rod can be movable in 360 degrees, easy to drink;

d. Meet eating demand of different stages chickens.

Drip cup:

Material: pure engineering plastic—PP.

a. One-arm design, more suitable for modern poultry idea;

b. Tight to water pipes, won't drop when touching in cold weathers.

PVC square water pipe&galvanized supporting tube

Drinking line specification: 15 nipples/3m, 12 nipples/3m

Nipple drinker capacity: 8-12 broilers/drinker

Use high transparency&impact resistant material, sturdy and durable, convenient to oibserve water level.
