Poultry Farm Chicken House Cooling Pad System

Cooling pad system

Best combination

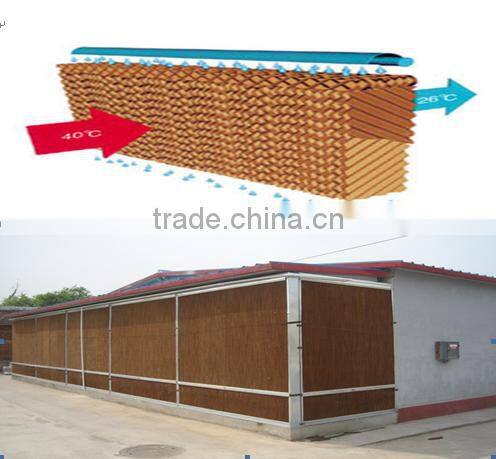

The longitudinal way of cooling-fan ventilation way is the most economical and effective way to reduce temperature of chicken house in summer .

According to many years of practice , even in the hottest summer , with reasonable designed and installed ventilation system ,

it still can control the temperature of chicken house under 30 degree , then make the effect of hot temperature on the growth of poultry to minimum .

Characters

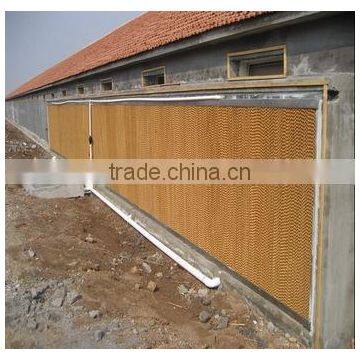

* The cooling pad paper is bonding by corrugated fiber , the paper pulp is imported.

* The raw material of paper is added special chemical component by special craft technology.

* It's anti-corrosion , and long service life.

* The corrugated fiber structure with some angle , it can provide enough surface area for air and     water heat exchange , and purify the air from outside , has the natural filter performance.

Advantages

* Hygroscopicity : Though with the special craft processing crossing linking technology , corrugated paper has high  absorbability, high water resistant , anti-midew and long service life.

* Dry solution : When water stop flowing on the cooling pad surface , the protective coating will dry quickly , so it could prevent   parasitic microbes survive on the surface , thus inhibiting the algae and other organic matter from breeding in the surface.

* Non-porous surface : Prevent the algae and mineral substance from residing in the deep , and drying off the surface.

Cooling pad parameters

* Thickness : 100mm; 150mm                       * Height : 1660mm ; 1960mm;  2160mm

* Frame : Galvanized sheet and Aluminium alloy                * Width : 300mm; 600mm

* Aluminimus alloy frame : Hign strength , good corrosion resistance , water distribution uniformity , beatutiful and practical.

Cooling pad instructions for use

* Installation way : Sinking pump located into the water pool , it can reduce water pollution , and also make the ground clean and clear.

* Water output control : Control the water output by regulator , when supply water , it make the cooling pad wet uniformly , and

   the water will flow down along the cooling pad corrugated ripple.

* Water quality control : Up water location has filter , it can clean the water , the cooling pad surface has special coating , it can  prevent the bacteria and algae from growing effectively .

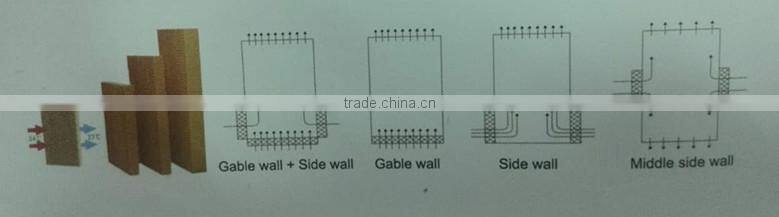

On the ventilation system ,the cooling pad and the fans always oppositely installed , Cooling pad are installed on the wall facing the direction of the monsoon , the normal ways as below:
