Product Description

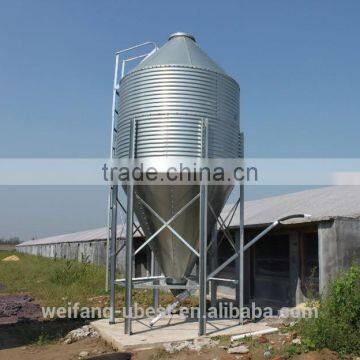

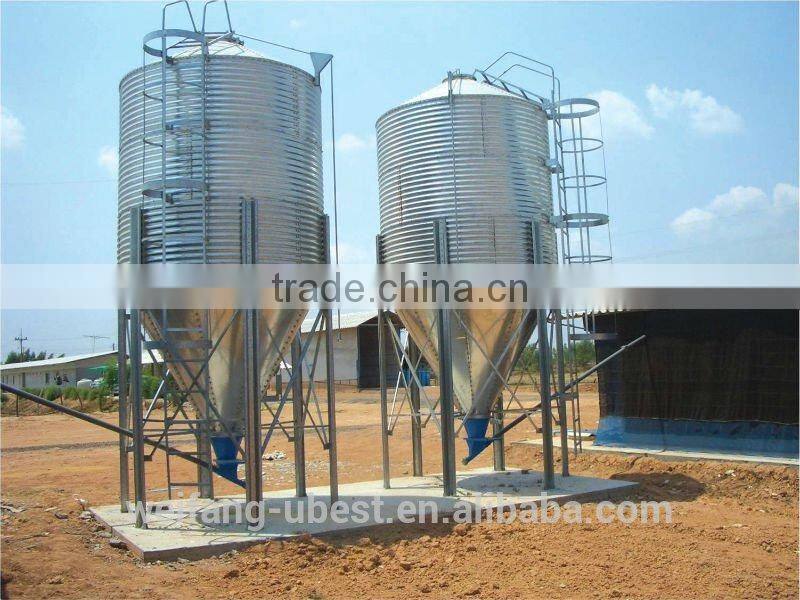

Automatic broiler farm poultry feed silo
1)Description:
Silo Feed delivery system is a complete set of automatic feeding system, included the plastic conveying pipe, silo, auger, drive motor and a feed sensor. Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatic delivery feed.

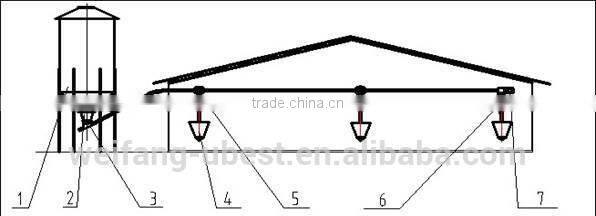

2)Silo feed delivery system structure chart:
1-Silo 2-Deformation exit 3-Boot(single or double) 4-Feed hopper 5-Poly drop outlets 6-Feed sensor 7-Drive motor
3)Detailed Technical parameters:
| Volume | Diameter | Height | Capacity/(TON) | Upper cone thickness (mm) | Silo body thickness | Lower cone thickness (mm) | Supporting leg thickness (mm) | Qty of legs (pcs) |
| (CBM) | (m) | (m) | 0.65T/CBM | (mm) | ||||
| 9.27 | 1.83 | 5.5 | 6 | 1 | 1 | 1.2 | 2.5 | 4 |
| 12.65 | 1.83 | 6.7 | 8.2 | 1 | 1 | 1.2 | 2.5 | 4 |
| 16.52 | 2.75 | 5.5 | 10.7 | 1 | 1 | 1.2 | 2.5 | 6 |
| 20.17 | 2.75 | 6.1 | 14.1 | 1 | 1 | 1.2 | 2.5 | 6 |

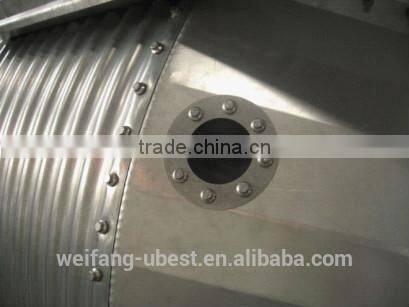

| High quality hot-galvanized steel plate material ensures the solidity of the whole silo; constructed with hot-galvanized corrugated steel plate; Zn-coated thickness ≥275g per square meter | ||||||||
| Silo body is 1250mm wide,fit for different thickness requirements(1.0-1.5mm) | ||||||||
4)Advantages:
1.Lower basic cost with lightweight, low request for foundation, low consumption of steel.
2.Easy and efficient to install due to superior component design which are connected by standard bolts.
3.Silo ladder stair is strong and slip resistant,assembled with guard rail to ensure safety,thus more humanistic.
4.High quality material,for more than 10-year's service life.
Automatic broiler farm poultry feed silo
