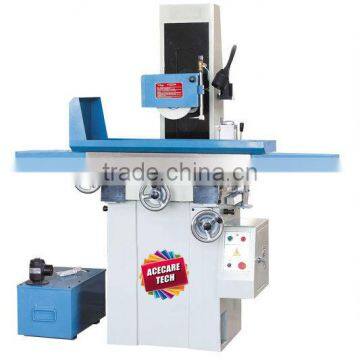

M820 Manual Surface Grinder
- Dalian Port or Shanghai Port
You May Like
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Length | 530mm | |
| Place of Origin | Liaoning, China | Brand Name | Acecare Tech | |
| Model Number | M820 | Voltage | Regular | |
| Power(W) | 1.1KW | Dimension(L*W*H) | 1680*1140*1800mm | |
| Weight | 750kg |
Product Description
M820 Manual surface grinder
1,Adopt the exceeding precise class7(P4 level) ball bearing for spindle.
2,Bring transmission by synchronous belt,operating simple and convenient.
Technical Parameters | Unit | M820 | MS820 | |
piece to be Ground ( L×W×H) | mm | 520×220×490 | 520×220×490 | |
Max. Grinding Length | mm | 530 | 530 | |
Max. Grinding Width | mm | 220 | 220 | |
Distance From Table Surface To Spindle Center | mm | 490 | 490 | |
Slide way |
| V-type rail with Steel-ball | V-type rail with Steel-ball | |
V-type rail with Steel-ball | Kg | 200 | 200 | |
Table Size (L×W) | mm | 480×200 | 480×200 | |
Number of T -Slot | mm×n | 12×1 | 12×1 | |
Speed OF Working Table | m/min | 3-23 | 3-23 | |
Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | |
Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | |
Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | 200×16×31.75 | |
Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
0-6000 | 30-6000 | |||
Spindle Motor | Kw | 1.1 | 1.1 | |
Coolant Pump | Kw | 0.4 | 0.4 | |
Minimum of Numerical Display | mm |
| 0.001-0.005 | |
Machine Size (L×W×H) | mm | 1680×1140×1800 | 1680×1140×1800 | |
Packing Size (L×W×H) | mm | 1140×1240×1960 | 1140×1240×1960 | |
Gross,Net | T | O.80, 0.70 | O.85, 0.75 | |
Any question, feel free to contact us!
