Home > Products > All Kinds of Lathe > M7130G Surface Grinding Machine With Good Performance

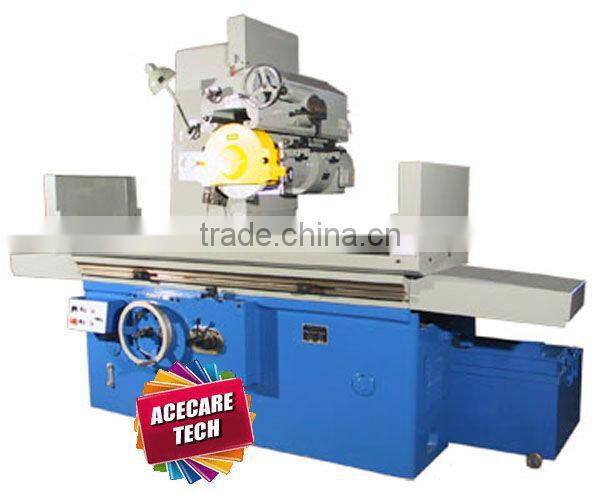

M7130G Surface Grinding Machine With Good Performance
US$ 8,000 - 20,000
/ Set
1 Set(Min. Order)
- Dalian Port or Shanghai Port
You May Like
-
M7130 Surface Grinding Machine, Precision Grinding Machine
-
Automatic Grinder, M7132H Surface Grinding Machine
-
M7132H Surface Grinding Machine With Horizontal Spindle and Rectangular Table
-
MGB1432E High Precision Universal Cylindrical Grinding Machine
-
Surface Grinder, M818A Surface Grinding Machine
-
CK6150 CNC Lathe Machine
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Place of Origin | Liaoning, China | |
| Brand Name | Acecare Tech | Model Number | M7130 | |
| Power(W) | 5.5kw | Dimension(L*W*H) | 2295*1500*2062mm | |
| Weight | 3500kg |
Product Description
M7130 Surface Grinding Machine
| Model | M7130G/F | M7130G/FG | ||
| Table working surface(W×L) | 320×1000 mm | 320×1000 mm | ||
| Max. size of workpiece to be ground(W×L×H) (mm) | 320×1000×400 | 320×1000×600 | ||
| Table longitudinal travel (hydraulic) | 200-1100 mm | 200-1100 mm | ||
| Table speed (stepless) | 3-25 m/min | 3-25 m/min | ||
| Table | T slots | 3 | 3 | |
| Width | 18mm | 18mm | ||
| Distance from grinding wheel spindle-axis to table surface | 135-575mm | 135-775mm | ||
| Max. travel of wheel-head | Cross (manual or hydraulic) | 380mm | 380mm | |
| Vertical (manual or ower-operated) | 400mm | 400mm | ||
| Automatic cross-feed of wheel-head (stepless) | Continuous | 0.3-3m/min | 0.3-3m/min | |
| Intermittent mm/stroke of table | 3-30 | 3-30 | ||
| Wheel-head feed for each turn of hand-wheel | Cross | 2.6mm | 2.6mm | |
| Vertical | 0.5mm | 0.5mm | ||
| Min. down-feed hand-wheel dial graduated to | 0.005mm | 0.005mm | ||
| Grinding wheel size(O.D×W×I.D) | 350×40×127mm | 350×40×127mm | ||
| Wheel-head rapid up-down traverse speed | 310mm/min | 310mm/min | ||
| Hydraulic pump | type | YB1-100 | YB1-100 | |
| Delivery | 96L/min | 96L/min | ||
| Electrical equipment total capacity | 10kVA | 10kVA | ||
| Grinding wheel motor | power | 5.5kW | 5.5kW | |
| Speed | 1440r/min | 1440r/min | ||
| Hydraulic pump motor | power | 3kW | 3kW | |
| Speed | 960r/min | 960r/min | ||
| Wheel-head rapid elevation motor | power | 0.37kW | 0.37kW | |
| Speed | 1400r/min | 1400r/min | ||
| Coolant pump | Type | DB-25A | DB-25A | |
| Delivery | 25L/min | 25L/min | ||
| Coolant pump motor | power | 0.125kW | 0.125kW | |
| Speed | 3000r/min | 3000r/min | ||
| Max. allowable weight of workpiece (Including electromagnetic chuck) | 468kg | 468kg | ||
| Electromagnetic chuck(W×L) | 300×680mm | 300×680mm | ||
| Overall dimensions(L×W×H) (mm) | 2295×1500×2062 | 2295×1500×2262 | ||
| Packing case dimensions(L×W×H) (mm) | 2610×1670×2420 | 2610×1670×2620 | ||
| N.W/G.W | 3500/4000kgs | 3600/4100kgs | ||
