Home > Products > All Kinds of Lathe > Automatic Grinder, M7132H Surface Grinding Machine

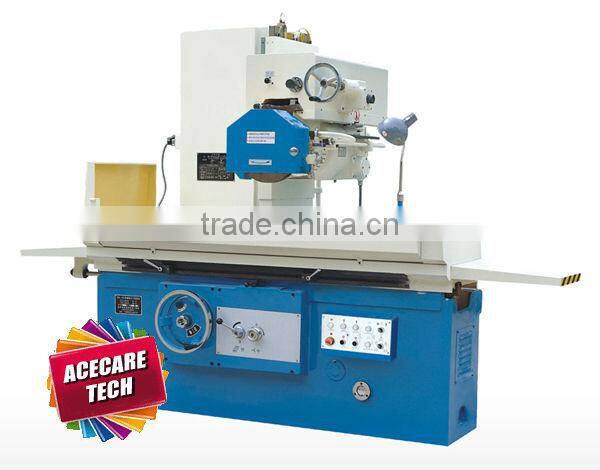

Automatic Grinder, M7132H Surface Grinding Machine
- Dalian Port or Shanghai Port

You May Like
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Length | 300*1000*400mm | |
| Place of Origin | Liaoning, China | Brand Name | Acecare | |
| Model Number | M1732H | Voltage | N/M | |
| Power(W) | 9KW | Dimension(L*W*H) | 2295*1673*2045mm | |
| Weight | 5000KG | Certification | GB |
Product Description
M7132H Surface Grinding Machine
1.The machinse can be used for grinding slot and flange side.
2.The crossfeed movement of wheelhead can be carried out either manually or hydraulically, convenient for operation.
3. A rapid elevation mechanism is used for vertical movement of the wheelhead.
4.The grinding head and the oil pump both employ the Y series motor, carrying out the National safety standard for electric equipments.
5.With the attractive appearance, there is the position on the machine for installing digital-display device.
| Model | M7132H | |||
| Work Precision | Table Size(width ×length) | mm | 320×1000 | |
| table | Maximum Grinding Size (Width×Length×Height) | mm | 300×1000×400 | |
| Table Longitudinal Travel(Maximum) | mm | 1100 | ||
| Speed(Stepless) | m/min | 3-27 | ||
| Table T-Slot Quantity×Width | 3×18 | |||
| Load of Table | kg | 499 | ||
| Grinding Head | Distance from the Centre of Grinding Wheel Head to Table (Maximum) | mm | 575 | |
| Max Travel of Grinding Head | Horizontal(manually or hydraulically) | mm | 360 | |
| Vertical(manually) | mm | 400 | ||
| Vertical Feed | Manually per grid | mm | 0.01 | |
| Manually per round | mm | 1 | ||
| Continuous Feed Speed (Stepless) Longitudinal movement should stop when measuring | m/min | 0.5-3 | ||
| Intermittent Feed of Table per travel(variable speed) | mm | 5-25 | ||
| Rapid Motor Speed | mm/min | ≥500 | ||
| Spindle Speed | rpm | 1440 | ||
| Grinding Wheel Size(Outside Diameter×Width×Inner Diameter) | mm | φ350×40×φ127 | ||
| Motor Power | Total Motor Power | kw | 9 | |
| Grinding Head Motor Power | kw | 5.5 | ||
| Work Precision | Parallel Degree of Processing Surface to Basic Surface | mm | 00:00.0 | |
| Surface Roughness | µm | Ra0.63 | ||
| Machine Weight | Net Weight | kg | 3500 | |
| Gross Weight | kg | 5000 | ||
| Overall Dimension(L×W×H) | mm | 2295×1673×2045 | ||
| Container Dimension(L×W×H) | mm | 2800×1830×2450 | ||
