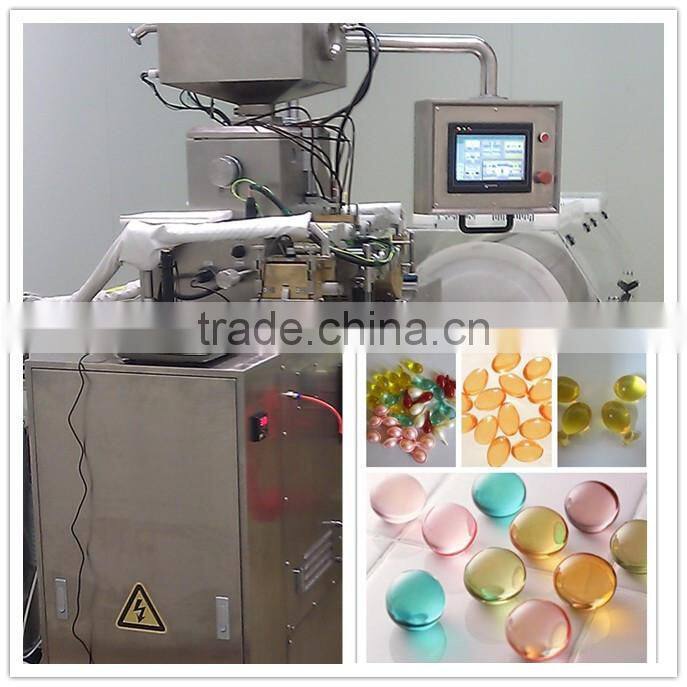

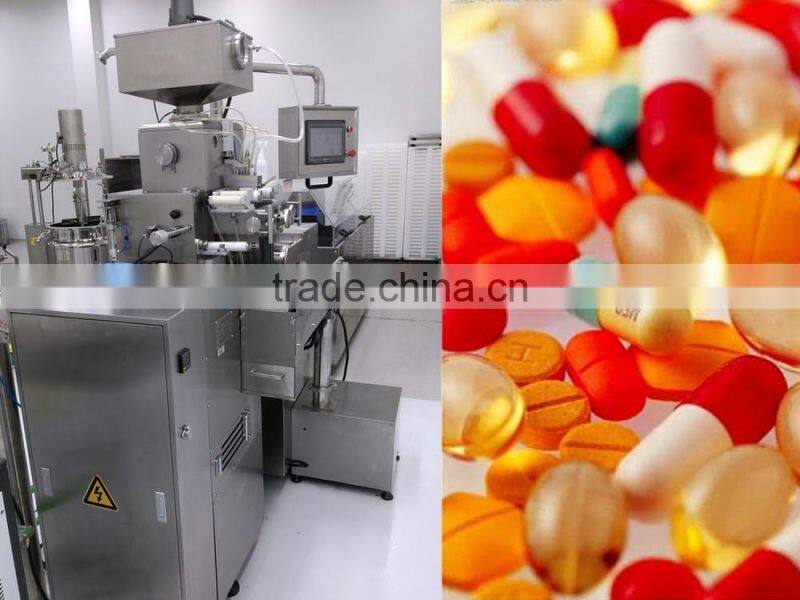

Factory Direct Softgel Encapsulation Line | Softgel Encapsulation Machine

 Micro-production Softgel Encapsulation Line |Soft capsule filling machine

Features:

Softgel encapsulation machine can quantificationally inject the oil, mixing suspenion and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and paintball and so on.

This product has passed provincial-level appraise of new product and the certification of EU, adopted two items of patent technology in manufacturing with exquisite workmanship.

One of the earliest in China to do in-depth research on softgel die roll

The first in China to export paintball equipment to North America which is capable of making

tournament grade paintball.

The first in China to produce paintball machine in large quantities.

We have more choice of different models of tumble dryers.

The first in China to export tumble dryers in quatities

We have more machining equipments than any competitors in China. Besides High accuracy CNC

milling centers, we have our own lathe,milling machine,griding machine,EDM machine,electrical wire

cutting machine,lap machine, deburring machine,welding machine, we also own optical image

measuring machine,hardness tester,super high flatness inspection platform,etc., which is essential for

high quality softgel and paintball equipments manufacturing.

Our technical officer is the major drafter of national softgel machine standard

We’ve been focusing on equipment reliability for many years,which many Chinese companies neglected.

We have staff who have very strong technical background and speak fluent English,This make things easier to communicate technically with the customer.

Specification of S403 Micro-production Softgel Encapsulation Line:

1. Filling tolerance<±1.5%
2. Maximum single plunger dosage- 2ml

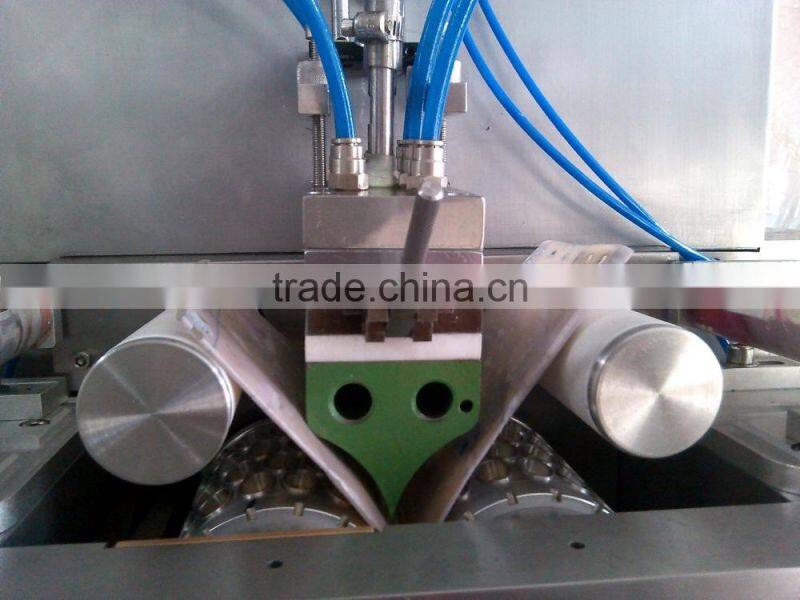

3. Die Roller Size— 80x100mm
4. Die Roller Speed — 0~5rpm, steplessly adjustable
5. Main Motor Power— 0.75 kW
6. Main Machine Power — 3kW
7. Power — 3 Phase 220V/380V415V,50Hz/60Hz
8. Overall Dimensions(L x W x H)— 1050 x 500 x 900)mm
9. Weight— 600kg
10. The cooling drums are cooled by both water and air.
11. Consumption of compressed air— 50NL/h
12. Consumption of gelatin— 2.5L/h( at 3 rpm)
13. Material consumption — 4.6L/h(at 3 rpm)
14. Lubrication oil consumption — 70g/h(Based on 3 rpm)
15. The requirement for space — 20m2

Tumble Drier   (2 baskets)

To be fit for the main machine

 (Basket size)—580 x 900mm

 Effective loading storage> 20kg (each basket)

    Motor Power —three Phase 380V/415V, 50Hz/60Hz,0.37Kw

    Fan Motor Power —3 Phase 380V/415V, 50Hz/60Hz,0.32Kw

    Running speed —0-20rpm (The speed is variable steplessly)

    Weight—310Kg

 Gelatin Melting and Service Tank (Model: GST—105)

1. Electrical heating
2. Three layers ( Thermal insulation and heating)
3. Top compressed air supply
4. Stirring speed—51rpm
5. Motor power—single Phase 220V/240V,50Hz,0.55kw
6. Heating power—220V/240V,50Hz 4kw
7. Temperature adjusting scope—20~100ºc
8. Weight —160kg

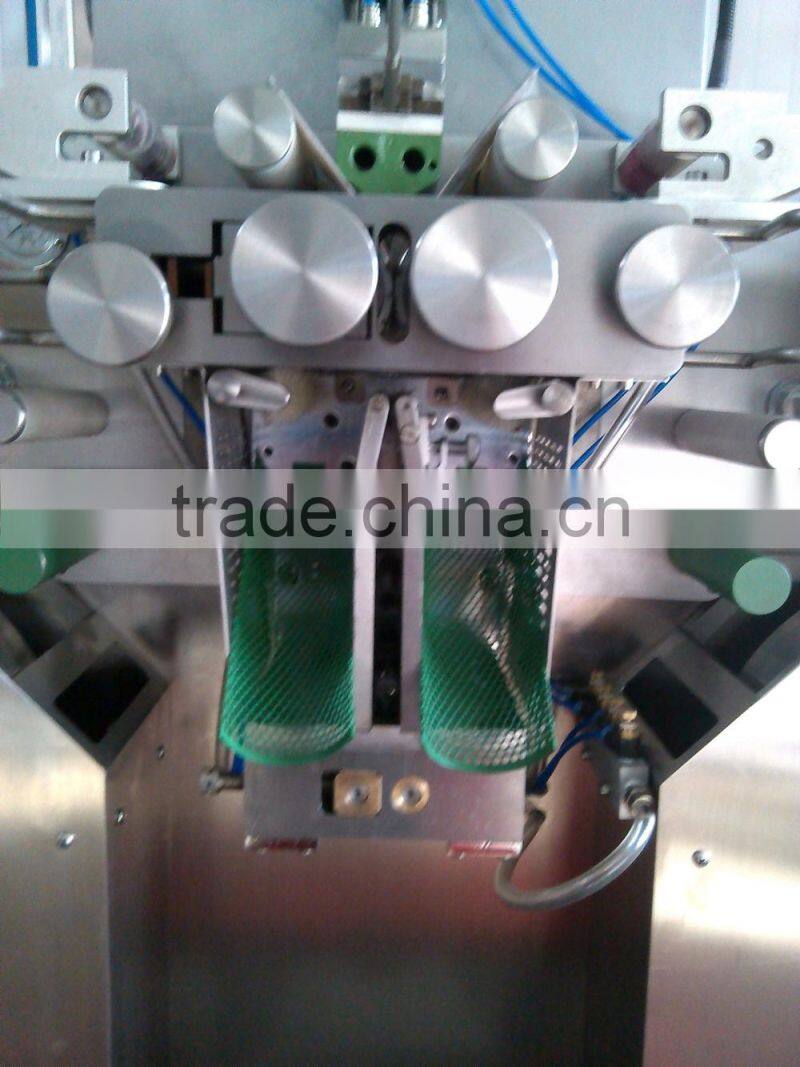

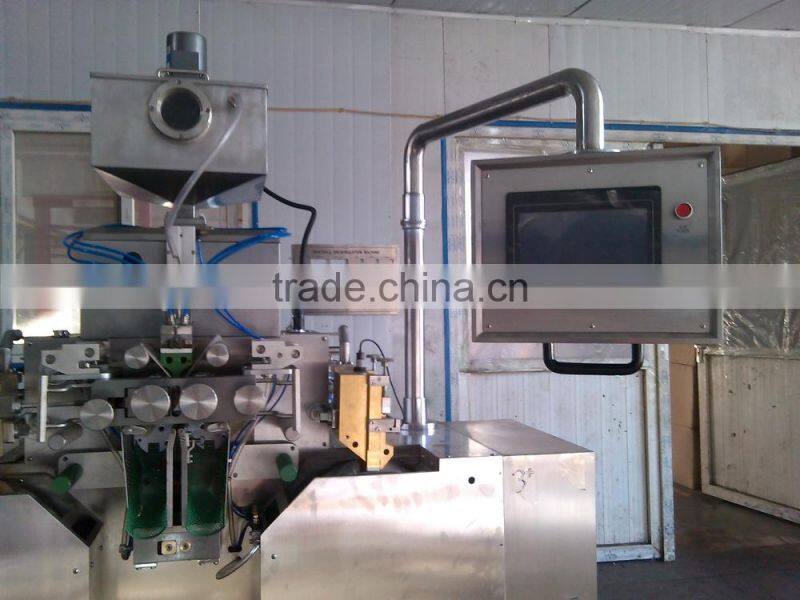

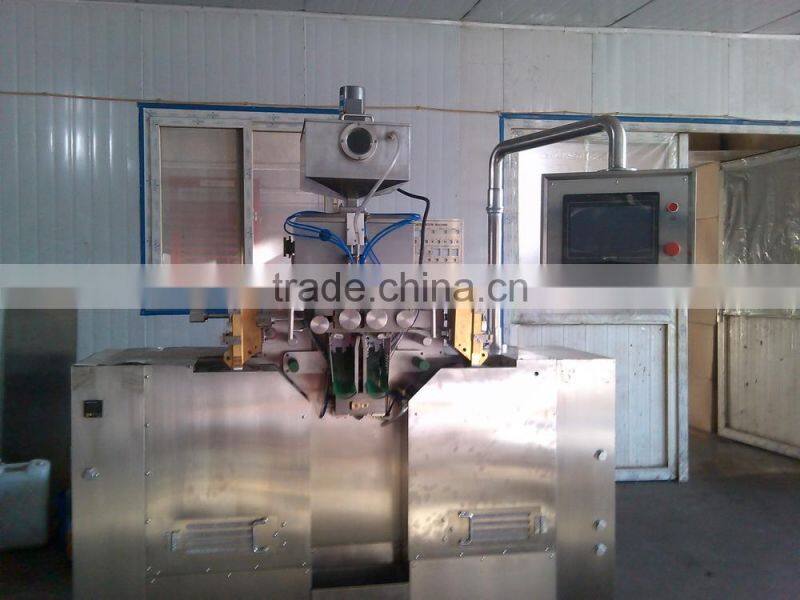

Main machine and drying machine:

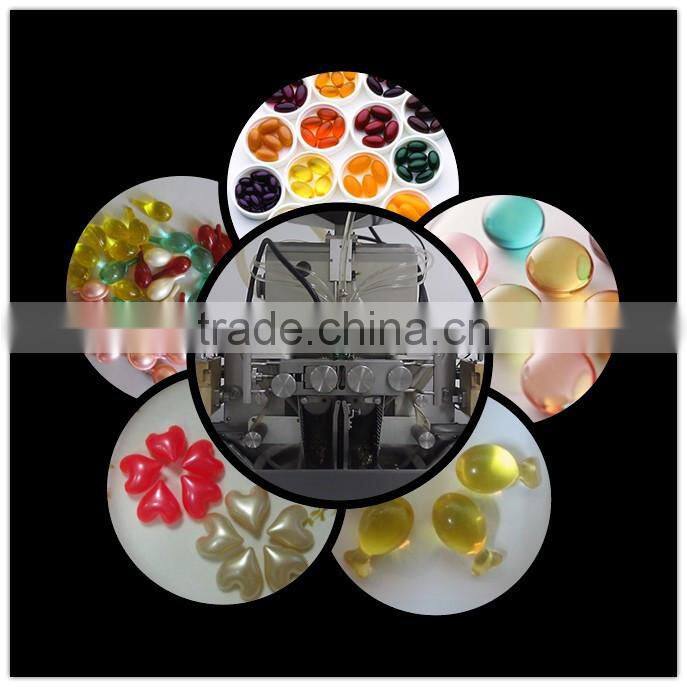

Capsules shapes:

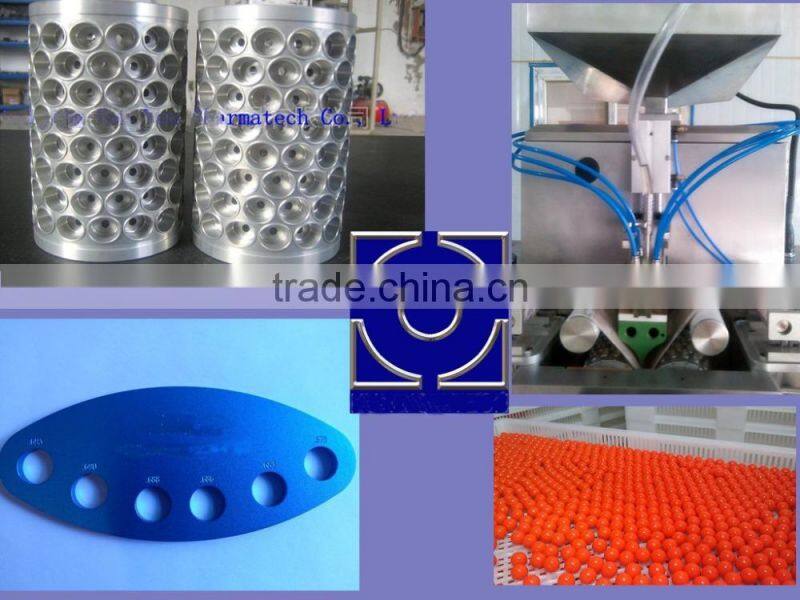

Spare parts of S403 Micro-production Softgel Encapsulation Line :
