Low Power GPS Receiver Module GM25 laptop

FOB Price

USD $1 - $100 / Piece

10 Pieces(Min.Order)

Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	hkshanhai
Model Number	GM25

Product Description

Specifications

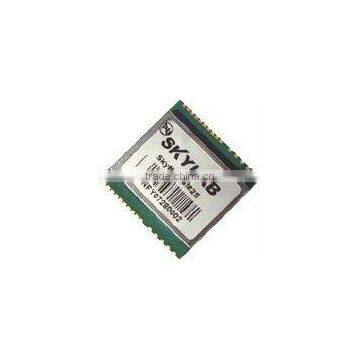

Low Power GPS Receiver Module GM25 laptop is a complete GPS engine module that features super sensitivity, ultra low power

	Low Power GPS Receiver Module GM25 laptop General Description The SkyNav GM25 is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol. Its 160dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems. Features Ultra high sensitivity: -160dBm Extremely fast TTFF at low signal level Built in high gain LNA Low power consumption: Max 35mA 3.3V NMEA-0183 compliant protocol or custom protocol Operating voltage: 2.85V to 3.3V Operating temperature range: -40 to 85 SMD type with stamp holes Small form factor: 25x25x3.0mm RoHS compliant (Lead-free)Performance Specification

Low Power GPS Receiver Module GM25 laptop

General Description

The SkyNav GM25 is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

Its 160dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.

Features

Ultra high sensitivity: -160dBm
Extremely fast TTFF at low signal level
Built in high gain LNA
Low power consumption: Max 35mA 3.3V
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 2.85V to 3.3V
Operating temperature range: -40 to 85
SMD type with stamp holes
Small form factor: 25x25x3.0mm
RoHS compliant (Lead-free)Performance Specification

...
