Home > Products > GPS module > 2014 New Product Gmm-g3 GPS+GLONASS Module Manufacturer in China Wholesale
2014 New Product Gmm-g3 GPS+GLONASS Module Manufacturer in China Wholesale
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | GlobalTop | |
| Model Number | Gmm-g3 |
Product Description
Specifications
Gmm-g3 GPS+GLONASS Module1.good after-sales service
2.Support multifrequency-channel GPS
3.Fast TTFF at low signal level
2014 new product Gmm-g3 GPS+GLONASS Module manufacturer in China wholesale
Gmm-g3 GPS+GLONASS Module
Product Description
The GlobalTop Gmm-g3 module utilizes MediaTek's new generation GNSS chipset "MT3333" supporting various location and navigation applications including autonomous GPS, GLONASS, GALILEO*,QZSS, SBAS, DGPS (RTCM) and AGPS. It supports up to 210 PRN channels with 99 search channels and 33 simultaneous tracking channels. (*GALILEO will be supported)
This chipset has the industry's highest level of sensitivity (-165dBm) as well as instant Time-to-First Fix (TTFF). It also combines many advanced features including AlwaysLocate™, EASY™, EPO™ and logger function.
Gmm-g3 is the ideal SMD solution for those who wish to incorporate GPS functions into their very small form factor device.
Feature
- MediaTek MT3333 Chipset, 33 tracking/ 99 acquisition-channel GPS/GLONASS receiver
- Dimension 11.5 x 13 x 2.1 mm; SMD
- Ultra-high Sensitivity, -165 dBm, TCXO Design
- Gtop Firmware Customization Services
- GPS+GLONSS Consumption current (@3.3V)
Acquisition: 35mA Typical
Tracking: 29mA Typical - E911, RoHS Compliance
- DGPS (QZSS/WAAS/EGNOS/MASA/GAGAN*)
*GAGAN will be supported
Specification
| Dimension | 11.5 x 13 x 2.1 mm, SMD type |
| GPS Solution | MTK MT3333, 99 Channels |
| Frequency | GPS L1, 1575.42MHz GLONASS L1, 1598.0625~1605.375MHz |
| Sensitivity | Acquisition -148 dBm Tracking -165 dBm |
| Position Accuracy | Without aid: 3.0 m (50% CEP) DGPS (SBAS(WAAS,EGNOS,MSAS,GAGAN*)): 2.5 m (50% CEP) |
| TTFF (Time to First Fix) | Cold Start: Warm Start: Hot Start: |
| Timing Accuracy (1PPS Output) | ±10ns RMS |
| Protocol | NMEA 0183, MTK Command |
| DGPS | SBAS(default) [QZSS,WAAS, EGNOS, MSAS,GAGAN*] |
| AGPS | Supported (Offline Mode) |
| Interface | 2 UART |
| Baud Rate | 4800 ~ 115200 bps |
| Update Rate | 1 ~ 10 Hz |
| Power Supply | VCC: 3.0 V to 4.3 V VBACKUP: 2.0 V to 4.3 V |
| Current Consumption | Acquisition: 35 mA Tracking: 29 mA |
| Working Temperature | -40 °C to +85 °C |

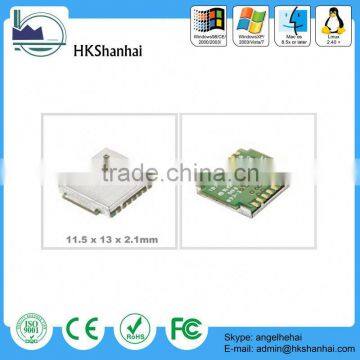

Product Photos:
Our Certifications
Our Advantages:
1.Rapid response on any inquiry.
2.Competitive price.
3.Professional inspection department to guarantee quality.
4. We supply 1 year warranty , and free technology support .
5.Good after-sales service and fast delivery.
FAQ(Frequently Asked Questions)
Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in metalized polypropylene film capacitor and polyesterfilm capacitor since 1986.
Q:How is your product quality?
A:We have the guarantee from the material,even every procedure,all our products are as good as the samples that send you free for testing.
Q:Can you make sure all of the products consistent?
A:Yes,we have passed the ISO9000 certification,all products will be as good as the samples.
Why choose Shenzhen shanhai technology Co;LTD ?
Professional:Since 2004 specailzed in GSM GPRS modem module
Honor: 5 Years old gold supplier of Alibaba,6 years old export experience
