Hot sale quad band wavecom Q2686 G2686RD Q2686G gsm/gprs module
US$ 10 - 30
/ Piece
1 Piece(Min. Order)
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | WAVECOM, WAVECOM | |
| Model Number | Q2686, Q2686 |
Product Description

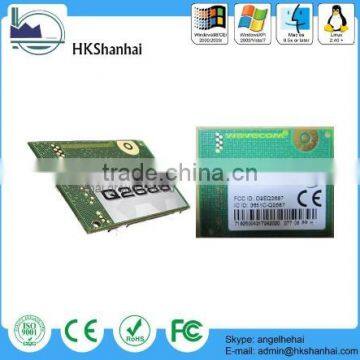

wavecom Q2686 G2686RD Q2686G gsm/gprs module
The AirPrime Q2686 embedded wireless module is a feature-rich, programmable quad-band GSM/GPRS module. Thanks to footprint compatibility with the rest of the Q Series, it can easily be evolved to EDGE, 3G and 3.5G when required. Equipped with on-board audio recording facilities and up to 44 GPIOs, the Q2686 is well suited to alarm and voice-response systems or to applications requiring a high number of connections.
Key features:
- Quad-band GSM/GPRS communications on the 800, 900, 1800 and 1900MHz bands
- Programmable ARM9 32-bit processor at 104MHz
- Advanced audio features
- Up to 44 GPIOs
- Compact size, just 40 x 32.2 x 4mm
- Automotive-grade
- Footprint compatibility with entire Q Series of intelligent embedded modules
Interface ConnectorPower SupplyRF ConnectorAudioRF SensitivityLocation SolutionDimensionsTemperatureMemoryOperating SystemOPEN-AT OptionsOPEN-AT IDEDebug ToolsROHS Compliancecarrier-approvalsEMC Approvals
| GSM / GPRS class 10 |
| 900 / 1800 MHz & 850 / 1900 MHz |
| ARM7 32-bit 52MHz w/ cache memory |
| (1) RTOS interrupt (6/4/1) GPIO / GPO / GPI (4) Analog Audio (1) ADC (1) SPI (1) I2C (2) RS232 (1) Led Driver (1) Buzzer Driver (PWM) 5x5 - Keyboard 1.8V / 3.3 V SIM / RUIM |
| 60-pin board-to-board connector |
| 3.6 VDC (nom) 5uA/3mA/1.8A (min/idle/max) |
| U.FL / IMP / Solder Pad |
| Codecs: FR/EFR/AMR, Quality: VDA2C (with AEC/NR) |
| '-110 dBm @ 900 MHz |
| external NEMA supported |
| 58 x 32 x 3.9mm |
| Class A: -20°C to +55°C |
| Flash: 1.5MB / RAM 128kB |
| Open AT / 13 MIPS / |
| TCP/IP Internet + Email (POP3/SMTP) + File Transfer (FTP) Open SIM Access Bluetooth IBM MQ-TT Orange SIM Access |
| Remote Task Env Step-by-step execution Break Points Traces Application Examples |
| Compliant with RoHS Directive (2002/95/EC) |
| See |
| Entire GSM products are approved to R&TTE, GCF-CC (900/1800 MHz), PTCRB (850/1900MHz), FCC (USA) - CE (EMC & Safety |
