wavecom fastrack m1306b gsm/gprs modem

Specifications

wavecom fastrack m1306b gsm/gprs modem

Our gsm modem are mainly based on the brand new wavecom modules, the model number are as below:

if you are not sure which one is suitable for you, pls check your country frequency (/) or talk with me directly
Dual-band GSM/GPRS 900/1800MHz ( Please confirm the support dual frequency and interface of your state before you buy.)

Application :

- Voice function call emergency telephone

Voice Codec: full-speed, full-speed and semi-enhanced rate (FR / EFR / HR)

DTMF functions (DTMF)

- Data / fax function     Non-synchronous data circuit     Transparent and non-transparent to the highest standards 14400 bits/s

The third category automatically fax (Class1 and Class2)

MNP2, V42bis

- Short message service     text and PDU     peer-to-peer (MT / MO)     district Broadcast

Hardware features:

Basic features :

RS232 /USB optional

AT command used for the remote control (GSM07.07 and 07.05)

Link bit rate from 300 to 115,200 bits / s

Automatic bit rate (300 to 38,400 bits / s)

Through micro - FIT4 Plug power connector

SMA Antenna Interface

Down the SIM card memory

Dual-band GSM external modem

Small size and aluminum shell shock

Install and us, connect Internet instantly

Has been through all the technical standards certification

Voice, messaging, fax and data transmission of GSM Phase2 +

Designed for a specific application of the AT command control system

Support DUAL SIM CARD(OPTION)

Supported Operating Systems:

Windows 7/ Windows Vista/ Windows XP/ Windows Server 2003/ Windows 2000/

Windows 98SE/ CE/Linux 2.40/ MAC 9.8X

Packing List

-Modem x1(USB)

-AntennaX1

-Cable X1

-CD driverX1

-Modem x1(RS232)

- Power Supplyx1

 -AntennaX1

-RS232 Cable X1

-CD driverX1

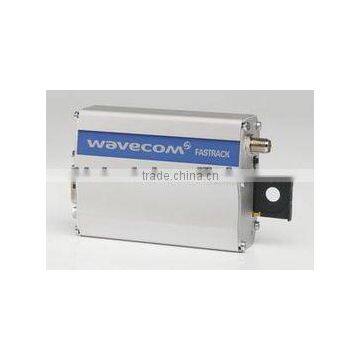

Picture :
