Home > Products > Arduino Compatible + BT module + WiFi module > wavecom module q2687 q2686

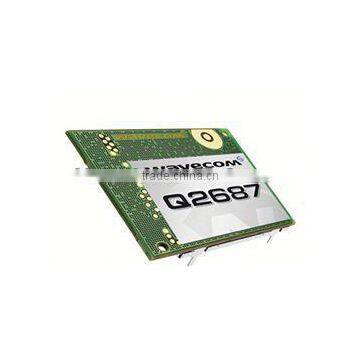

wavecom module q2687 q2686
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | WAVECOM, WAVECOM | |
| Model Number | Q2687, q2687 |
Product Description
Specifications
wavecom module q2687 q26861.wavecom gsm modem Q2403A Q24PL001 Q2406B
2.GSM standard SMS, Fax
2.GSM standard SMS, Fax
3 RS232,USB interance
G-Q24R (INDUSTRIAL GSM/GPRS MODEM)
General Features:
Industrial design
Aluminum casing
Wireless access to internet
Based onWavecom module Q24 Plus
With TCP/IP stack
Internet Services: PPP,TCP, UDP, HTTP, SMTP,
POP3
Open AT
Flash memory 32MB, PSRAM 16MB
850/900/1800/1900MHZ
3V SIM card slot
DB9 RS232 interface
SIMApplication Toolkit
Double tone multi-frequency function (DTMF)
Send and receive data, e-mail, SMS
GPRS Class 10
Antenna with high sensitivity
Always on-line
Comply with ETSI GSM Phase2+ standard
Output Power:
Class 4(2W@ 850/900MHz)
Class 1(1W@ 1800/1900MHz)
I Input voltage:5V-36V DC
Input current:1A-2A
Standby current: 56mA
Working current: 100-140mA
Working temperature :-20 -+55 degrees
Storage temperature:-25 -+70 degrees
Size:76*54*25mm
Weight:100g
Accessories:AC/DC adaptor, RS232 cable,
antenna, 2 mounting plates, CD
Specification for data
GPRS Class 10 max.85.6kbps(downlink
PBCCH support
Coding schemes CS 1,2,3,4
CSD up to 14.4kbps
USSD
Non-transparent mode
Transparent mode
Specifications for SMS via
GSM/GPRS
Point to point MO and MT
SMS cell broadcast
Text and PDU mode
Specification for Fax
Group 3, class 1,2
