High Mica Content Phlogopite Mica Tape
- shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | anshi | |
| Model Number | LT8-16 | Type | Insulation Tape | |
| Material | Other, mica paper+glass fabrics, mica paper | Application | Other, High Temperature, wire and cable | |
| Tensile Strength | >80N/cm |
Product Description
High mica content phlogopite mica tape
Description for High mica content phlogopite mica tape

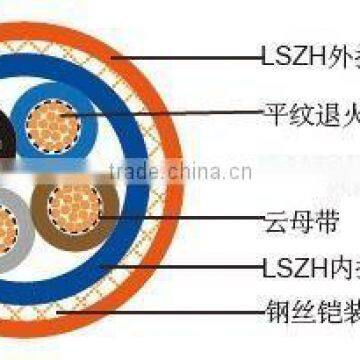

phlogopite mica tape for fire-resistant wire and cable, a band-shaped electrical and thermal insulation material, consists of the high quality phlogopite mica paper, bonded to supporting materials of non-alkaline glass fabric or polyethylene film, impregnated with high temperature resistant silicone resin.
Technical data for High mica content phlogopite mica tape
| normal thickness | 0.08±0.015 | 0.11±0.015 | 0.125±0.015 | 0.14±0.015 |
| total substance(g/m2) | 117±11 | 148±11 | 172±11 | 216±14 |
| mica content(g/m2) | 80±5 | 100±5 | 120±5 | 160±8 |
| glass content(g/m2) | 24±3 | 32±3 | 32±3 | 32±3 |
| film content(g/m2) | --- | --- | --- | --- |
| Bond content(g/m2) | 13±3 | 16±3 | 20±3 | 24±3 |
| dielectric strength(Kv/layer) | >1.0 | >1.2 | >1.2 | >1.4 |
| Tensile strength(N/cm) | >80 | >120 | >120 | >120 |
