High Dielectric Strength Phlogopite Mica Tape
- shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | anshi | |
| Model Number | LT8-26 | Type | Insulation Tape | |
| Material | Other, mica paper, mica paper | Application | Other, High Temperature, wire and cable | |
| Tensile Strength | >120N/cm |
Product Description

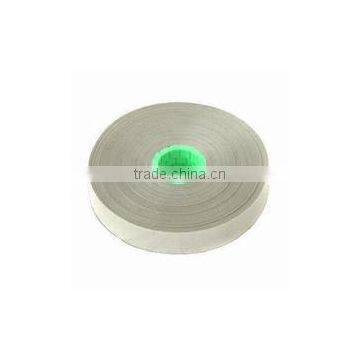

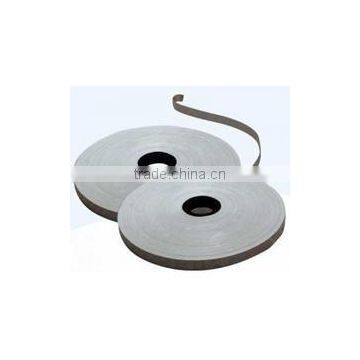

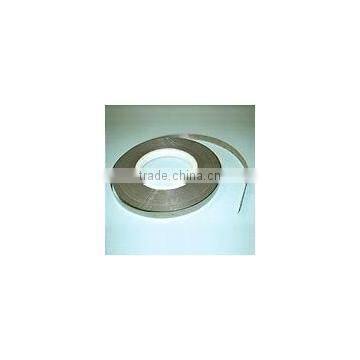

high dielectric strength phlogopite mica tape
Description for high dielectric strength phlogopite mica tape
phlogopite mica tape for fire-resistant wire and cable, a band-shaped electrical and thermal insulation material, consists of the high quality phlogopite mica paper, bonded to supporting materials of non-alkaline glass fabric or polyethylene film, impregnated with high temperature resistant silicone resin.
Technical data for high dielectric strength phlogopite mica tape
| normal thickness | 0.12±0.015 | 0.17±0.015 |
| total substance(g/m2) | 181±13 | 225±16 |
| mica content(g/m2) | 120±5 | 160±8 |
| glass content(g/m2) | 22±2 | 22±2 |
| backing material content(g/m2) | --- | --- |
| film content(g/m2) | 21±3 | 21±3 |
| Bond content(g/m2) | 18±3 | 22±4 |
| dielectric strength(Kv/layer) | >1.6 | >1.6 |
| Tensile strength(N/cm) | >120 | >120 |
