automatic coil winding machine/wire reel winding machine

FOB Price

USD $1,000 - $3,000 / Set

1 Set(Min.Order)

Port qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	LANKAI
Model Number	KG630		After-sales Service Provided	No overseas service provided

Product Description

coil winding machine/wire reel winding machine features:
1.easy operate
2.high output
3.low labour
4.high efficiency

High-speed automatic wire-arranging coiler is suitable for coiling of 0.5-6mm2 cable wires and a small section cables. It is characterized by high production efficiency and superiority in high quality wire-arranging among its peers.

wire coil winding machine

1.automatic wire-arranging: the take-up rate is 2-3 times that of traditional models.

2.Rapid coiling installation: loop after being coiled can be removed quickly and easily, reducing labor intensity an saving time.

3.Three processes of wire coiling, reeling and plastic film packaging by one person can reduce the labor intensity and labor costs.

4.the wire tension in wire-arranging can guarantee that the wire-arranging space will not be affected by cable diameter and wire-arranging is in order and in better quality.

The use of automatic wire-arrange won’t be affected by manmade faction.

KG630wire /cable Coil winding machine
Wire/cable rage	Wire /cable:0.5 mm²-6 mm²
Pay-off reel diameter	≤φ630mm	Binding wire slot qty	3 slot
Binding wire inner diameter	Φ120mm φ130mm-φ180mm	Pay-off way	Automatic tension way
Binding wire outer diameter	≤φ320mm	Main shaft rotary speed	0-800r/min adjustable
Measure way	Data measure	Wire arrange way	Automatic arrange

KG1250 wire /cable Coil winding machine
Wire/cable rage	Wire :10 mm²-75 mm² Cable outside diameter:18mm
Pay-off reel diameter	≤φ1250mm	Binding wire slot qty	3 slot
Binding wire inner diameter	φ200mm-φ250mm	Pay-off way	Automatic tension way
Binding wire outer diameter	≤φ700mm	Main shaft rotary speed	0-250r/min
Binding wire height	70mm-150mm	Motor power	4KW
Measure way	Data measure	Wire arrange way	Automatic arrange

KG1400 wire /cable Coil winding machine
Wire/cable rage	Wire :10 mm²-75 mm² Cable outside diameter:18mm
Pay-off reel diameter	≤φ1400mm	Binding wire slot qty	3 slot
Binding wire inner diameter	φ200mm-φ300mm	Pay-off way	Automatic tension way
Binding wire outer diameter	≤φ700mm	Main shaft rotary speed	0-250r/min
Binding wire height	100mm-180mm	Motor power	4KW
Measure way	Data measure	Wire arrange way	Automatic arrange

KG1600 wire /cable Coil winding machine
Wire/cable rage	Wire :10 mm²-75 mm² Cable outside diameter:18mm
Pay-off reel diameter	≤φ1600mm	Binding wire slot qty	3 slot
Binding wire inner diameter	φ200mm-φ300mm	Pay-off way	Automatic tension way
Binding wire outer diameter	≤φ700mm	Main shaft rotary speed	0-250r/min
Binding wire height	100mm-200mm	Motor power	4KW
Measure way	Data measure	Wire arrange way	Automatic arrange

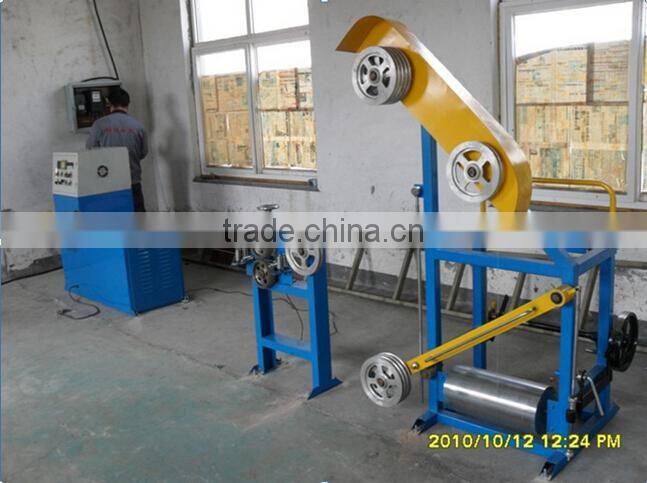

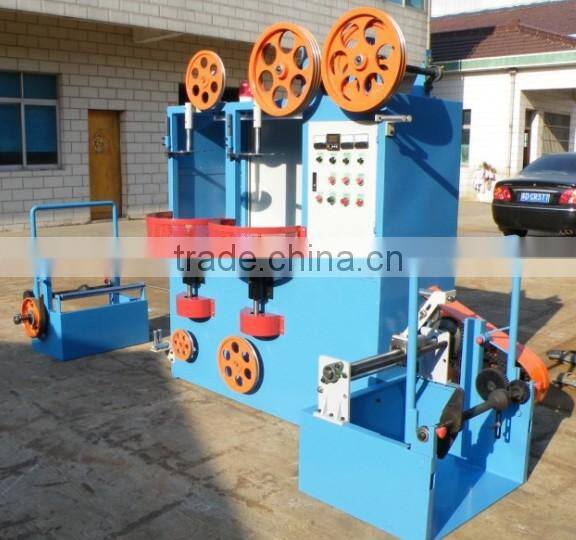

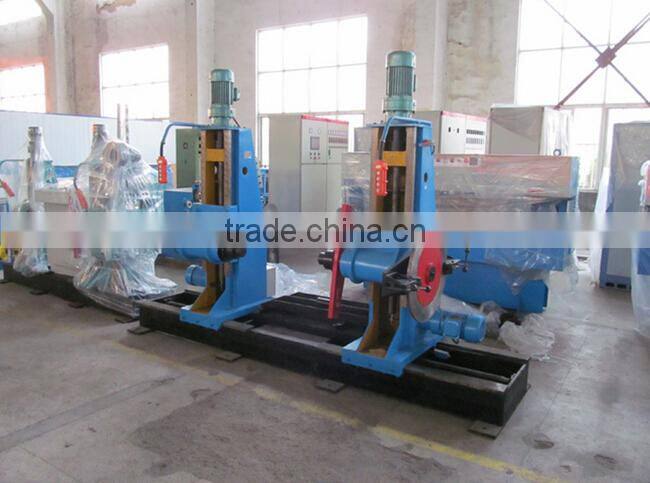

pictures of the wire reel winding machine :

if you are interested in this machine, please contact Miss Lemon

mobile phone:008613140123617
