Product Details
| Place of Origin | Henan, China | Brand Name | LANKAI | |
| Model Number | KG1600 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic cable coil winding machine/copper cable wire coil winding machine/cable coil winding machine
High-speed automatic wire-arranging coiler is suitable for coiling of 0.5-6mm2 cable wires and a small section cables. It is characterized by high production efficiency and superiority in high quality wire-arranging among its peers.
Cable coil winding machine
1.automatic wire-arranging: the take-up rate is 2-3 times that of traditional models.
2.Rapid coiling installation: loop after being coiled can be removed quickly and easily, reducing labor intensity an saving time.
3.Three processes of wire coiling, reeling and plastic film packaging by one person can reduce the labor intensity and labor costs.
4.the wire tension in wire-arranging can guarantee that the wire-arranging space will not be affected by cable diameter and wire-arranging is in order and in better quality.
The use of automatic wire-arrange won’t be affected by manmade faction.
Model | HL-800 |
Wire rage | 0.8-12 mm square |
Pay off plate size | Outside diameter:800mm Inside diameter:80mm Width:450mm |
Pay off way | Automatic tension way |
Wire arrange way | Automatic arrange wire |
Main rotary speed | 0-360r/min(adjustable) |
Coil part plate size | Outside diameter less than:400mm Inside diameter less than:120mm Width of plate:30-100mm |
Coil plate channel | 3 channels |
Power | 5HP(3.7kw) |
Capacity | 400 plate per 8hours |
Wire/cable rage | Wire /cable:0.5 mm2-6 mm2 | ||
Pay-off reel diameter | ≤φ630mm | Binding wire slot qty | 3 slot |
Binding wire inner diameter | Φ120mm φ130mm-φ180mm | Pay-off way | Automatic tension way |
Binding wire outer diameter | ≤φ320mm | Main shaft rotary speed | 0-800r/min adjustable |
Measure way | Data measure | Wire arrange way | Automatic arrange |
KG1250 wire /cable coil winding machine | |||
Wire/cable rage | Wire :10 mm2-75 mm2 Cable outside diameter:18mm | ||
Pay-off reel diameter | ≤φ1250mm | Binding wire slot qty | 3 slot |
Binding wire inner diameter | φ200mm-φ250mm | Pay-off way | Automatic tension way |
Binding wire outer diameter | ≤φ700mm | Main shaft rotary speed | 0-250r/min |
Binding wire height | 70mm-150mm | Motor power | 4KW |
KG1600 wire /cable coil winding machine | |||
Wire/cable rage | Wire :10 mm2-75 mm2 Cable outside diameter:18mm | ||
Pay-off reel diameter | ≤φ1600mm | Binding wire slot qty | 3 slot |
Binding wire inner diameter | φ200mm-φ300mm | Pay-off way | Automatic tension way |
Binding wire outer diameter | ≤φ700mm | Main shaft rotary speed | 0-250r/min |
Binding wire height | 100mm-200mm | Motor power | 4KW |
KG630wire /cable coil winding machine | |||
Wire/cable rage | Wire /cable:0.5 mm2-6 mm2 | ||
Pay-off reel diameter | ≤φ630mm | Binding wire slot qty | 3 slot |
Binding wire inner diameter | Φ120mm φ130mm-φ180mm | Pay-off way | Automatic tension way |
Binding wire outer diameter | ≤φ320mm | Main shaft rotary speed | 0-800r/min adjustable |
Measure way | Data measure | Wire arrange way | Automatic arrange |

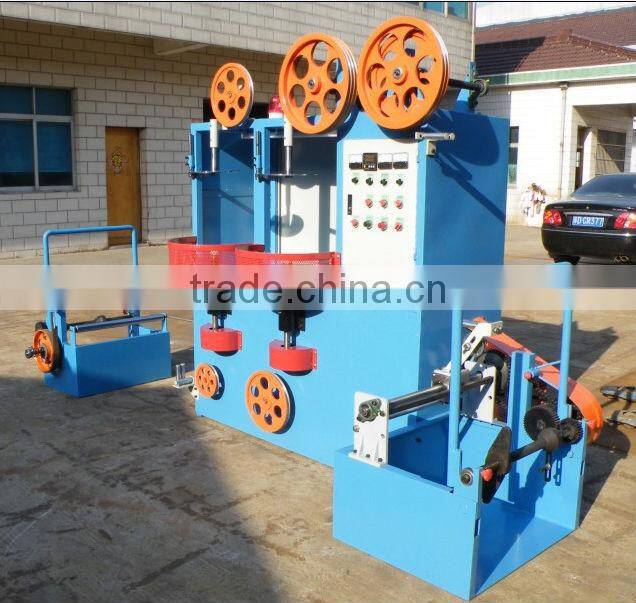

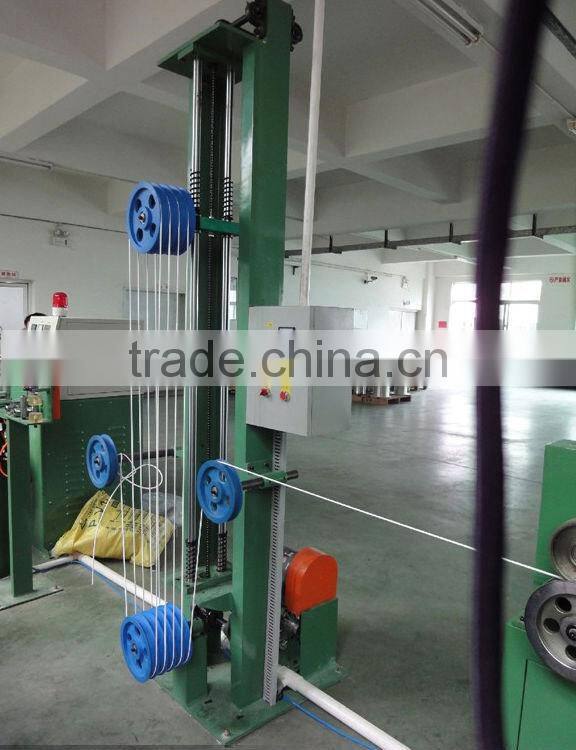

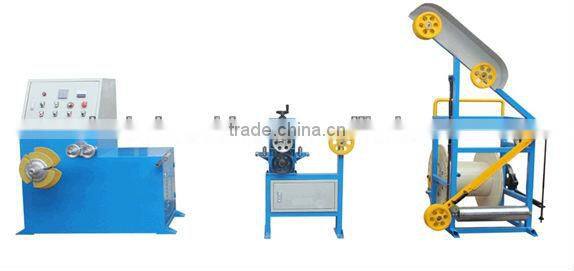

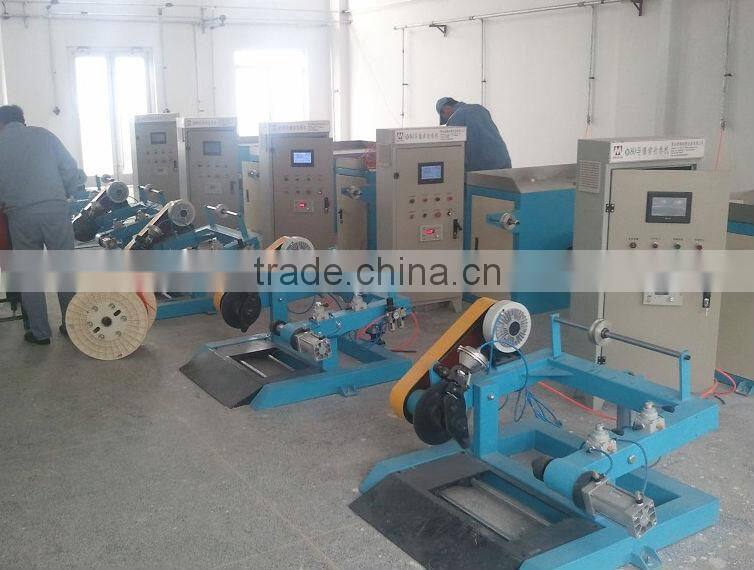

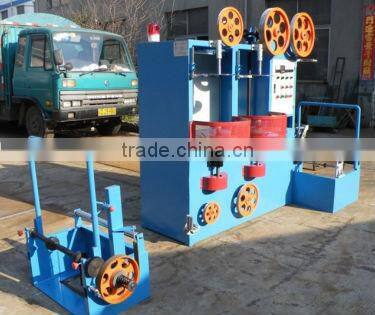

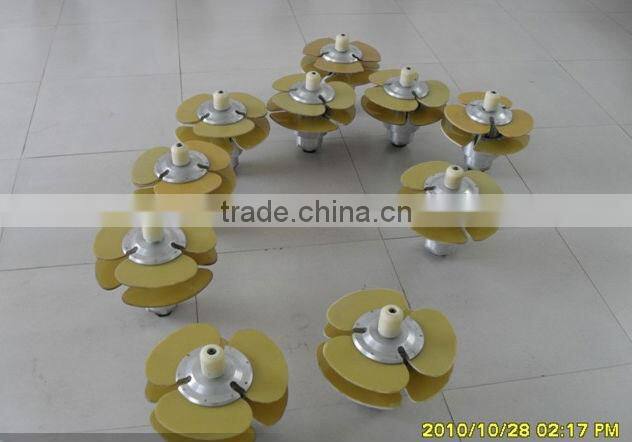

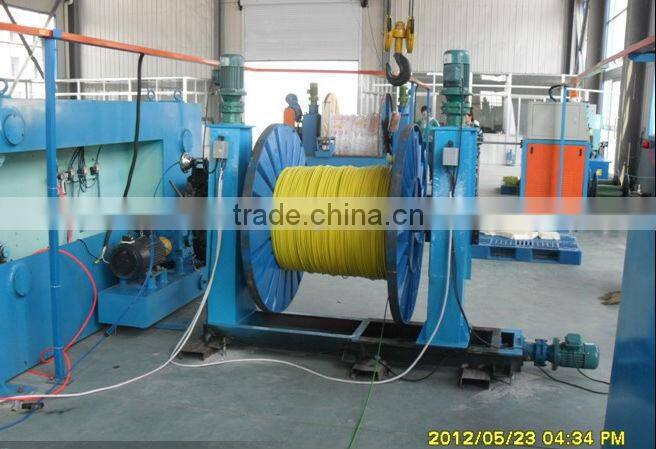

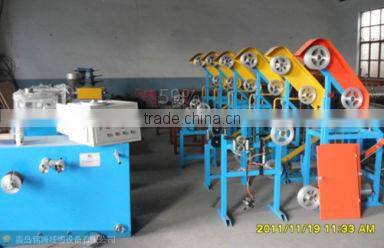

Here are some pictures of Automatic cable coil winding machine :
If you are interested in this Automatic cable coil winding machine ,please feel free to contact Phyllis zhang,it is an pleasure to cooperate with you.
TEL:0086 15939029164
