Automatic Good Performance Coil Winding Machine /wire Coiling Machine
- qingdao
- Credit Card
You May Like
-
Good Quality ! Automatic Cable Coil Winding Machine/copper Cable Coil Winding Machine/cable Coil Winding Machine
-
Good Quality ! Automatic Wire Coil Winding Machine/copper Wire Coil Winding Machine/cable Wire Coil Winding Machine
-
Good Quality ! Wire Winding Machine Automatic Wire Winding Machine/copper Wire Winding Machine/cable Wire Winding Machine Cost
-
Good Quality ! Automatic Cable Coiling Machine for Sale
-
Good Quality ! Cable Coiling Machine Wire Ccable Coiling Machine Automatic Cable Coiling Machine for Sale
-
Good Quality ! LAN Cable Coiling Machine Power Cable Coiling Machine Automatic Cable Coiling Machine for Sale
Product Details
| Place of Origin | Henan, China | Brand Name | LANKAI | |
| Model Number | KG630 | After-sales Service Provided | No overseas service provided |
Product Description
coil winding machine /wire coiling machine features:
1.easy operate
2.high output
3.low labour
4.high efficiency
Machine Composition
No | Item and Specification | Quantity |
1 | Φ630 shaft type pay off rack | 1 pc |
2 | 0.22-6 mm2 coiling machine | 1Unit |
3 | High precision meters | 1Unit |
4 | Machine painting blue and yellow | |
5 | Machine setting: right for paying off Left for coiling | |
6 | The whole line installation please check the installation draft | |
Max production speed | 500m/min | |
Production range | Cable cross-section (Flexible Cu ) | 0.5-10 mm2 |
| Cable outer dia (Including insulation) | Less than 12mm |
Spool size | Flange diameter:400mm Winding width: less than 400mm You can easy to change the spools. | |
Spool change | Handle type | |
Way of wire arrange | Automatic | |
Motor power | 3HP(2.2KW) | |
Machine performance
Φ630 shaft type pay off rack
(1) machine manufacture according the model 630
(2) suitable pay off spool size:400-630mm.(400mm500mm630mm)
(3) control way of pay off tension: spring control
(4) guide pulley outer diameter:250mm (aluminum alloy rollers : upper four roller ,lower three rollers)
(5) Braking mode: Friction brake linkage
(6) Lifting spool way:lever type
High precision meters
(1)meter Pinch roller which use the single direction bearings so wire can only walk forward cannot walk back
(2)Max wire speed:500m/min
(3)Measure accuracy:0.1%
(4)Sensing method: Inductance type
(5)Intelligent meter counter: can adjustable , and easy to correct error
Coiling machine
(7) Main shaft center height:560mm
(8) Wire arrangement way: pulley type automatic arrange
(9) Rotary speed:0-500r/min
(10) Coil plate inner diameter : 120mm(standard size) can make 80mm 100mm 120mm 140mm 160mm 200mm 300mm according customer requirements
(11) Coil plate outer diameter: 310mm(standard size)
(12) Coil width or height:30mm-100mm (adjustable)
(13) Channel of coil:3 channels
(14) Power:380v/2.2kw
Coil plate:
Inner diameter | 80mm 100mm 120mm 140mm 160mm 200mm 300mm |
Outer diameter | Can make according requirements |
Width(height) | More than 30mm can make according requirements |

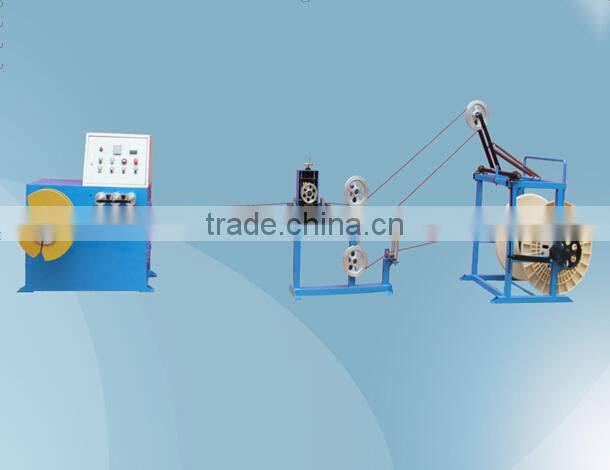

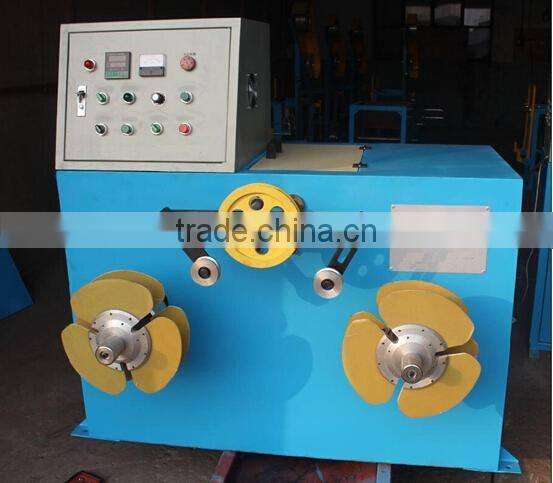

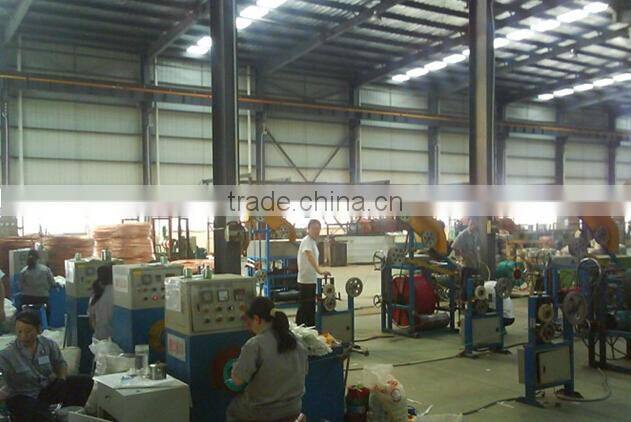

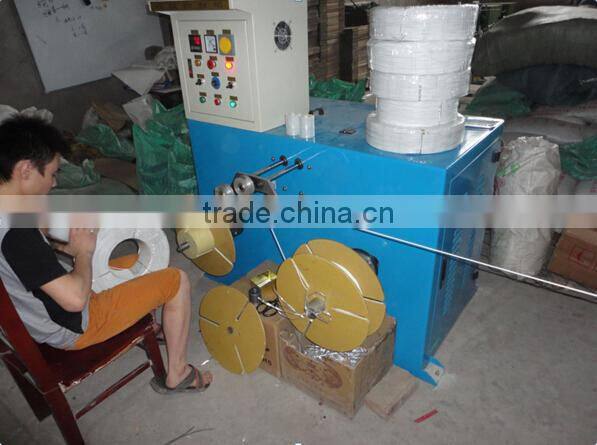

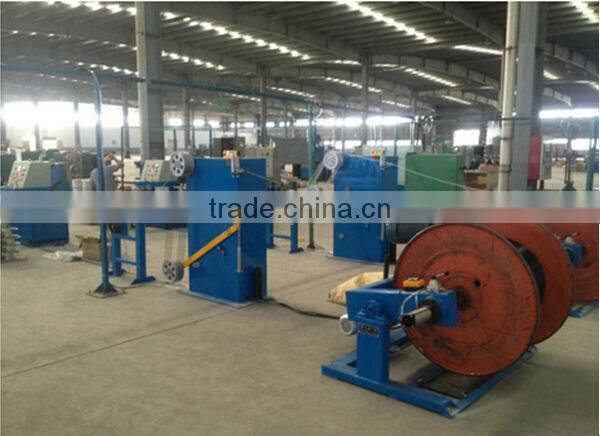

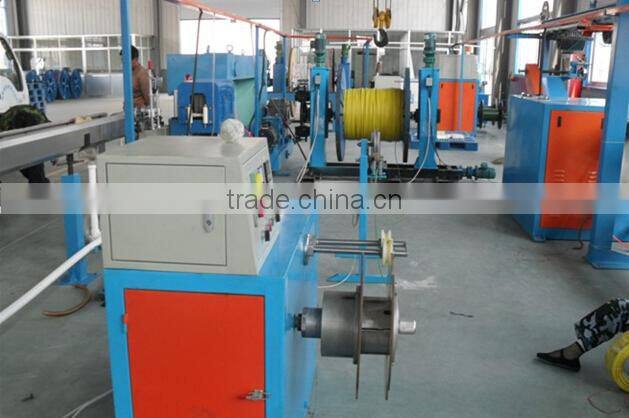

pictures of the wire coiling machine:
if you are interested in this machine,please contact Miss Lemon Zhao
mobile phone:008613140123617
