Home > Products > Paper Tube Forming Machine > Normal High Speed Paper Tube Machine

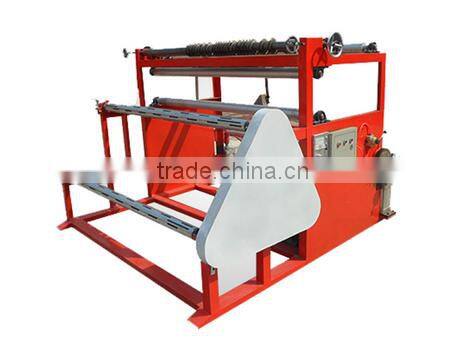

Normal High Speed Paper Tube Machine
Negotiable
/ Set
1 Set(Min. Order)
- tianjin
You May Like
Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Winding Machine | Place of Origin | Hebei, China | |
| Brand Name | unipand | Model Number | UNI-2150 | |
| Voltage | 380V 3phase 4wire 50Hz | Power(W) | 7.5KW | |
| Dimension(L*W*H) | 3000*1800*1680 mm | Weight | 2400kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
UNI-2150 Paper Tube Machine with two head Main Specification and Equipment
Parameter
| Tube Diameter | 15-100mm | Number of Roller | 16 plies |
| Tube Max Thickness | 8mm | Rewinding Head | 2 noses |
| Operator | 1-2 | Productive Speed | 3-16m/min |
| Way of Cutting | pneumatic | Way of Gluing(Auto) | double sides |
| Paper-shelf Type | Crisscross | Way of Tube Down | withdraw |
| Power of Mainframe | 7.5KW | Power input | 380V 3phase 4wire 50Hz |
Size (mm)
| Mainframe(L*W*H) | 3000*1800*1680 | Area Space(L*W) | 10000*8000 |
| Wheel Hub Diameter | 270 | Wheel Hub Height | 400 |
| Tread | 900*1200 | Total Weight | 2400kg |
Driving System
| Modle of Main Motor | 7.5KW Weihai | Mainframe Rotate Speed | 1400r/min |
| Hub Max Rotate Speed | 48r/min | Hub Output Torque | 850N.m |
| Reductor Type | WPO120 | Modle of Driving Chain | 12A*1 |
| Wheel Hub Drive | 2 wheel | Cutting Motor | A ball |
| Glue Pump | 1.5KW gear pump | Screw | China |
| Slideway | 40mm round slideway | Bearing | Haerbin |
Control System
| PLC Controller | Delta DVP-24ES00R2 | Edition of Program | JS-A3.1 |
| Inverter | 7.5KW Sanjing | Driving Components | CHNT |
| Signal Components | Omron | Pneumatic Components | AIRTAC |
| Angle Setting Motor | —— | Cutting Blade Control Device | Pneumatic |
| Way of Fixing Length | Infrared | Synchronism Control Cutting System | —— |
