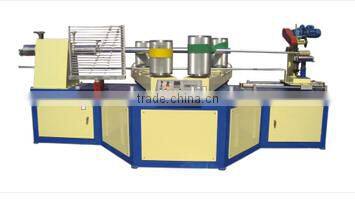

Paper Core Forming Making Machine With 4 Heads Good Quality
                            Negotiable
                                                            / Set


                                                1 Set(Min. Order)

                    - tianjin

You May Like
-


Paper Tube Making Forming Machine
 -


Fireworks Paper Tube Machine With High Quality
 -


UNI-2150 High Speed Paper Tube Machine With 2 Heads
 -


UNI-2150 Fireworks Paper Tube Core Machine With 2 Heads
 -


UNI-4250 Spiral Paper Tube Machine With 4 Heads High Quality
 -


UNI-4250 Spiral Making Paper Tube Machine for Big Tube

Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Winding Machine | Place of Origin | Hebei, China | |
| Brand Name | unipand | Model Number | UNI-4350 | |
| Voltage | 380V,3phase,4wire,50Hz | Power(W) | 18KW | |
| Dimension(L*W*H) | 4500*2000*2000mm | Weight | 3100kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
UNI-4350 Paper Tube Making Machine with four head1.Diameter: 20-350mm
2.Max Thickness: 16mm
3.Productive Speed:3-15m/min
UNI-4350 Paper Tube Making Machine with four head Main Specification and Equipment
Parameter
| tube diameter | 20-350mm | number of roller | 24plies |
| tube max thickness | 16mm | rewinding noses | 4noses |
| operator | 2-4 | productive speed | 3-15m/min |
| way of cutting | pneumatic | way of gluing(auto) | double sides |
| paper-shelf type | crisscross | way of tube down | withdraw |
| power of mainframe | 18KW | power input | 380V,3phase,4wire,50Hz |
Size (mm)
| mainframe(L*W*H) | 4500*2000*2000 | area space(L*W) | 16000*9000 |
| wheel hub diameter | 325 | wheel hub height | 400-600 |
| tread | 1100*1400 | total weight | 3100kg |
Driving System
| modle of main motor | 18KW Weihai | mainframe rotate speed | 1400r/min |
| hub max rotate speed | 50r/min | hub output torque | 2850N.m |
| reductor type | WPO155 | modle of driving chain | 16A*1 |
| wheel hub drive | 4wheel | cutting motor | A ball |
| glue pump | 1.5KW,gear pump | screw | China |
| slideway | 400mm,round slideway | bearing | Haerbin |
Control System
| PLC controller | Delta,DVP-24ES000R2 | edition of program | JS-A3.1 |
| inverter | 18KW,Anchuan | driving components | CHNT |
| signal components | Omron | pneumatic components | AIRTAC |
| angle setting motor | -- | cutting blade control device | pneumatic |
| way of fixing length | infrared | synchronism control cutting System |        -- |
