Home > Products > Paper Tube Forming Machine > UNI-4250 Paper Tube Core Forming Machine

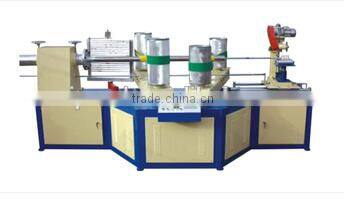

UNI-4250 Paper Tube Core Forming Machine
US$ 5,000 - 8,000
/ Set
1 Set(Min. Order)
- tianjin
You May Like
Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Winding Machine | Place of Origin | Hebei, China | |
| Brand Name | unipand | Model Number | UNI-4250 | |
| Voltage | 380V,3phase,4wire.50Hz | Power(W) | 11KW | |
| Dimension(L*W*H) | 3600*1850*1800mm | Weight | 2600kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
UNI-4250 Paper Tube Machine with three headMain Specification and Equipment:
Parameter
| tube diameter | 30-250mm | number of roller | 3-16 plies |
| tube max thickness | 15mm | rewinding noses | 4noses |
| operator | 1-3 | productive speed | 3-15m/min |
| way of cutting | pneumatic | way of gluing(auto) | double sides |
| paper-shelf type | crisscross | way of tube down | withdraw |
| power of mainframe | 11KW | power input | 380V,3phase,4wire.50Hz |
Size (mm)
| mainframe(L*W*H) | 3600*1850*1800 | area space(L*W) | 15000*8000 |
| wheel hub diameter | 270 | wheel hub height | 450 |
| tread | 1000-1300 | total weight | 2600kg |
Driving System
| modle of main motor | 11KW,Weihai | mainframe rotate speed | 1400r/min |
| hub max rotate speed | 48r/min | hub output torque | 1800N.m |
| reductor type | WPO155 | modle of driving chain | 12A*2 |
| wheel hub drive | 3wheel | cutting motor | A ball |
| glue pump | 1.5KW,gear pump | screw | China |
| slideway | 40mm,round slideway | bearing | Haerbin |
Control System
| PLC controller | DVP-F232 | edition of program | JS-A3.1 |
| inverter | 18KW,Anchuan | driving components | CHNT |
| signal components | Omron | pneumatic components | AIRTAC |
| angle setting motor | -- | cutting blade control device | pneumatic |
| way of fixing length | infrared | synchronism control cutting system | -- |
