YT-R3 High Speed Roll Former

FOB Price

US$ 1 - 70,000 / Set

1 Set(Min. Order)

Port shanghai or ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Yutong
Model Number	YT-R3		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

C shape purlin Roll Forming Machine
1). It can produce many types of C-shaped purline.
2). Material Thinckness:1.8mm-3.0 mm

1. Components for the Machine

The purline forming machine includes in automatic hydraulic decoiler, sheet leveling equipment, roll forming system, punching equipment, post-cutting equipment, hydraulic station, electric controlling system and supporter for purline.

2. Main technical Parameters

Item		Specification
Material	Type	chromed coils
	Thickness(mm)	1.8-3
	Yield strength(mpa)	235
Roller material		Cr12 mould steel
Forming speed(m/min)		10-15
Output speed(m/min)		12-15
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		15KW
Total power(kw)		20.5KW

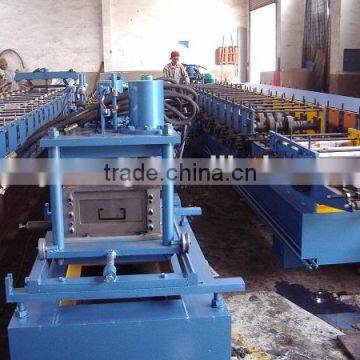

3.Pictures

4. Process flow:

Decoiler -- Feeding & Guiding – Leveling--Punching--Roll forming---Hydraulic Cutting – product to run out table 4. Process flow:

5.Packaging

1.One 40ft container for one machine with mechanical decoiler;

2.Main machine body and decoiler is load naked (tighten to container with steel wire rope)

3.PLC cabinet be packaged by PLYWOOD

4.Some spare parts and tools are loading in tooling box.

Delivery Detail: 45 days after receiving deposit

If you have any question pls let us know when you feel free, thank you!
