YT-R7 sheet roll forming machine
- 10 Set / Sets per Month
- shanghai or ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Yutong | |
| Model Number | YT-R7 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Floor deck Forming Machine
1) Diameter of shaft: 90mm
2) Thickness of wall panel: 20mm
3) rollers be digital processed
1.Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – Run out table
2.Technical parameter
Item | Specification | |
Material | Type | galvanized coils |
Thickness(mm) | 0.8-1.2mm | |
Yield strength(mpa) | 235 | |
Roller material | 45#Chrome steel | |
Forming speed(m/min) | 15-18 | |
Output speed(m/min) | 8 | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control system | Mitsubishi PLC & transducer | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power(kw) | 11KW x 2(Up to profile) | |
Hydraulic station motor power(kw) | 4 KW | |
3. Components of machine
Decoiler | 1set |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |
4. Pictures

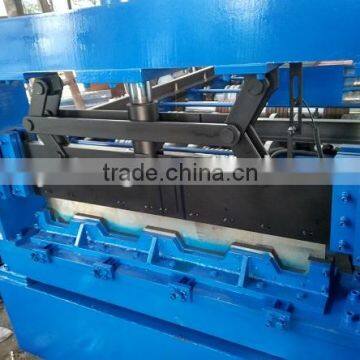

Roll forming machine
CNC processed high precision roller with chrome coated, ensure the roll forming precision and lifetime
Profile
Container Loading
If you have any question pls let us know when you feel free, thank you!
