YT-R2 High quality roll former
- 10 Set / Sets per Month
- shanghai or ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Yutong | |
| Model Number | YT-R2 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
What makes us better than others
YT-R2 High quality roll former
This Roll Forming Machine consist of 5T uncoiler, sheet feeding device, roll forming system, hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.
Optional: hydraulic decoiler /automatic stacker
Working Flow
Decoiling--sheet feeding--roll forming--automatic cutting--run out table
Main Parameter
No | Item | Parameter | Note | |
1 | Suitable
Material | Type | Pre-paint Steel Aluminum |
|
Width | According to profile |
| ||
Thickness | 0.30—0.70mm |
| ||
2 | Product
Specs | Cover width | According to profile | Refer to drawing |
Wave height | According to profile | |||
Length | Any length | |||
3 | Machine
Material | Active shaft | No. 45 steel tempered | Up to final design |
Roller | No. 45 steel chrome plated | |||
Cutting Blade | Cr12 quenched | |||
4 | Power Requirement | Type | 380V/3PH/50HZ | Customized |
Main motor | Up to final design | |||
Hydraulic | 5.5kw | |||
5 | Speed | Forming speed | 30-35m/min |
|
7 | Forming Stand | Up to profile | ||
8 | Transmission style | Chain, sprocket |
| |
9 | Main machine structure | Wall Panel |
| |
10 | Type of Cutting | length-set cutting | Hydraulic cutter | |
11 | Control System | Mitsubishi PLC& transducer |
| |
12 | Product support | Run out table | ||
Detailed Picture& Decription
1. Decoiler
Manual Decoiler with brake
Hydraulic decoiler
Hydraulic decoiler with loading car
2. CNC processed high precision roller with chrome coated, ensure the roll forming precision and lifetime

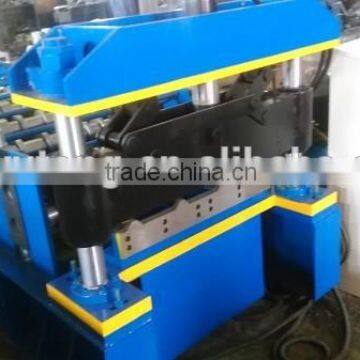

3.Pillar style post-cutting equipment, photoelectric switch ensure cutting precision and lifetime.
4. PLC system
5.Hydraulic unit
6.Container Loading
If you have any question pls let us know when you feel free, thank you!
