Factory Price Mini Fully Automatic Blister Packaging Pills Machine

FOB Price

US$ 1 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Commodity, Medical
Automatic Grade	Semi-Automatic	Driven Type	Electric
Voltage	380V/220V 50Hz 1.8Kw	Power	0.75Kw
Place of Origin	Zhejiang, China	Brand Name	JD
Model Number	JDPP-80	Dimension(LWH)	1400X460X950mm
Weight	450KG	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

factory price mini fully automatic blister packaging pills machine

Features:

1, Main transmission part adopts parallel shaft helical gear box, novel structure, smooth operation, long life, low noise.

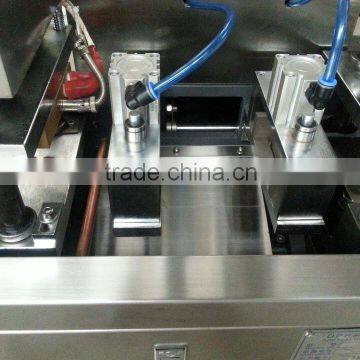

2, heat sealing station is fixed, forming, indentation, punching parts move freely adjust the spacing, easy operation .

3, manipulator traction, adjustable stroke, can be adapted to the packaging of different sizes.

4, flat structure, can be packaged article of a special shape, such as oval, square, triangular, liquid, paste, such as syringes.

Note:

1, optional the cursor trace sealing device.

2, optional plexiglass cover.

3, optional ink-jet printer (word) device.

Punching frequency	20-40times/min
Capacity	2000 plates/ hour
Max forming area and depth	70×100×12mm(designed according user’s requirement )
Standard Plate	80×57(designed according user’s requirement)
Adjustable scope of travel	30-80(designed according user’s requirement)
Air-compressor	0.6-0.8Mpa
Total power	380V/220V 50Hz 1.8Kw
Main motor power	0.75Kw
PVC	0.15-0.5×80mm
PTP	0.02-0.035×80mm
Dialysis paper	50-100g×80mm
Mold cooling	Use of water cooling or chiller cooling
dimensions	1400×460×950mm(L×W×H)
weight	450Kg
Noise indicators	≤75dBA

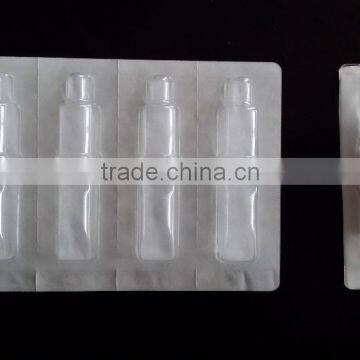

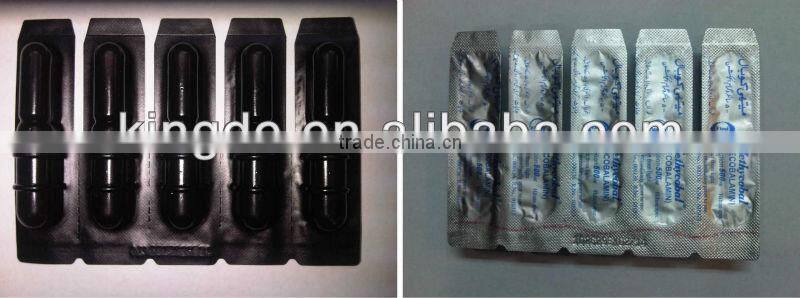

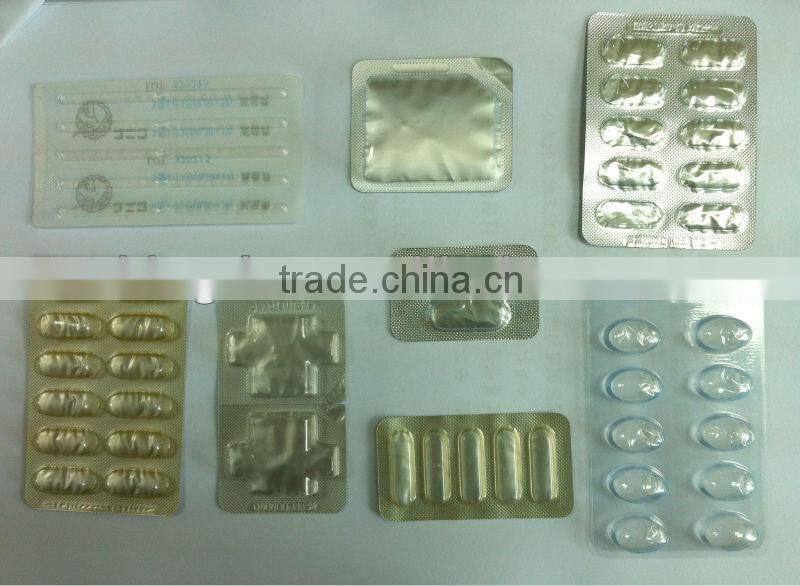

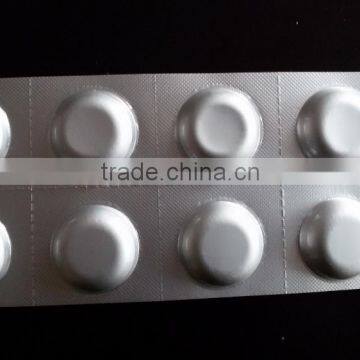

Samples :
