Home > Products > 250 blister packing machine > DPH-220K High Speed Blister Machines(Roller Plate)

DPH-220K High Speed Blister Machines(Roller Plate)

FOB Price

US$ 30,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Medical
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380V 50Hz	Power	9kw
Place of Origin	Zhejiang, China	Brand Name	JINDE
Model Number	DPH-220K	Dimension(LWH)	30509401400mm
Weight	2000KG	Certification	CE
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

blister machines
1.CE, GMP
2. PLC ,easy operation
3.Save labor, save material
4.High speed

blister machines

DPH-220K High Speed blister machines (Roller Plate)

Applications:

1. The material from steam or dust, thus improve product packing degree, and increase the additional value.

2. This machine mainly be used in packing pharmaceutial products such as tablets, pills, capsules, drugs, honey pills,

Characteristic:

1.high quality and a high output.

2. The machine can be linked to produce with boxing machine and pillow packing machine.

3. Board-shape mould, Forming with air pressure, Being suitable for standard of any former.

4.Roller-thread hot-sealing, good sealing effect, light-electricity location, accurate synchronization. Across non-waste sides’punching

5.can save about 200,000’s materials every year. Production’s landscape orientation’s

Main Technical Parameter

Production Capacity	20-120times/min 2plates/time
Packing Material	PTPAlu:Width :220mm; Thickness: 0.020-0.03mm; Medicine PVC: Max Width: 220mm, Thickness: 0.25mm
Packing efficiency	2400-14400plates/hour
Main function	Stepless speed regulation of the converter motor; non-waste sides’punching
Max forming depth(mm)	12mm
Max forming area(mm)	21012012mm
Power supply	380V 50Hz(according to the customer’s requirement)
Total power	9kw
Pressure	0.5-0.7Mpa
Air-compressor	≥0.22
Water-cooler(m3/h)	Cooled by cycle-water
Yawp(dB)	60-70dB
Packaging dimension	30509401400mm
Weight	2000kg
The speed regulation of motor	0-50Hz
Automatic working	Forming, Sealing, Batching No. Cutting, Plate conveyor etc
Standard	GMP standard; Highnow Machinery graduate school of blister packing machine standard etc.
Certificate	ISO9001:2000; CE;

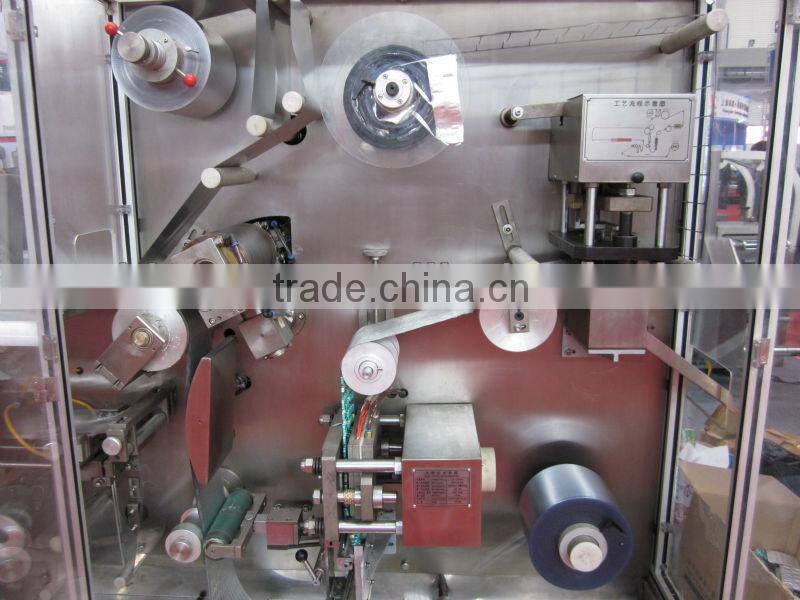

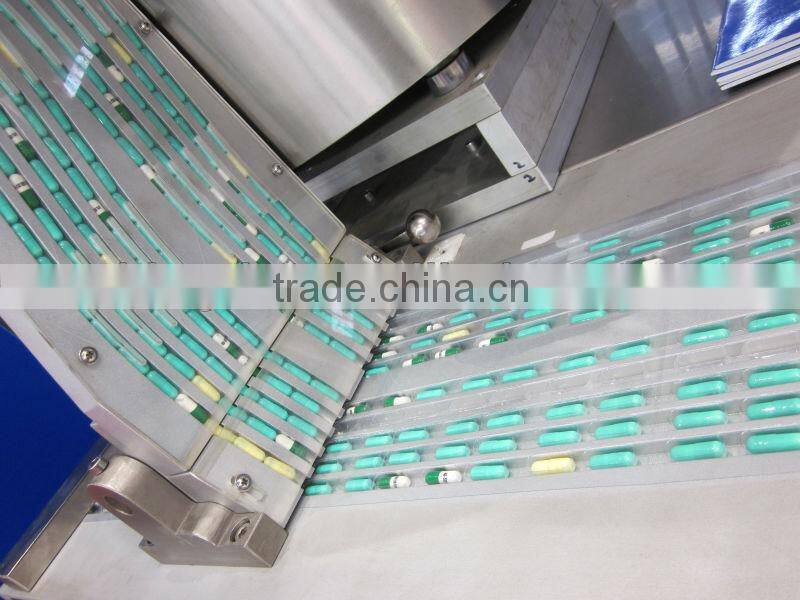

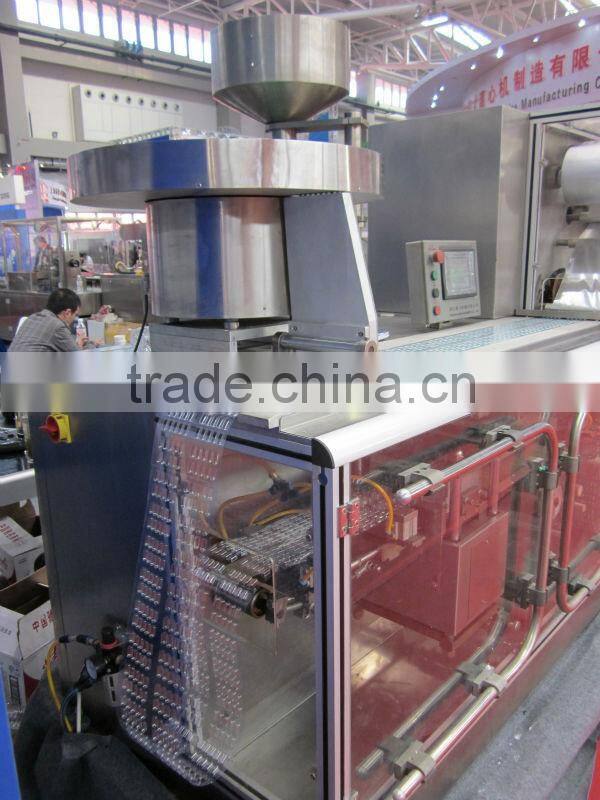

Some Part of this Machine:

Samples

We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
