433Mhz RF transmitter and receiver link kit for Arduino/ARM/MCU WL
US$ 0.43 - 0.59
/ Piece
1 Piece(Min. Order)
- SHENZHEN/HK
- Credit Card
You May Like
-
1100 Meter Long-Distance NRF24L01+PA+LNA NRF24L01P Wireless Transceiver Communication Module (with antena) DC 3.3V
-
motherboard 60-N3EMB1300-025 REV 5.1 100% tested for Asus K53SD laptop
-
N76VJ N76VB N76VZ N76VM N76V REV:2.2 Laptop Motherboard 2G For ASUS 100% tested & working perfect
-
DC Power Jack Switch Board New For ASUS N53 N53S N53J N53TA N53TK N53SM N53DA N53SL N53SN N53JG N53SV N53JN N53JF N53JQ
-
A1794331A A1771566A MBX-223 Motherboard M960 M971 for Sony
-
Orange Pi One Support ubuntu linux and android mini PC Beyond and Compatible with Raspberry Pi 2
Product Details
| Place of Origin | Guangdong, China | Brand Name | 433Mhz transmitter Module | |
| Model Number | 433Mhz transmitter Module |
Product Description
Technical parameters of Receiver module
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4MA
4.Receiving frequency: 433.92MHZ
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral

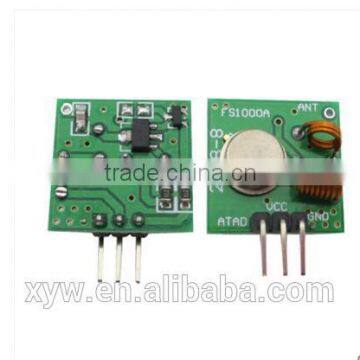

Technical parameters of the transmitter head
1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency: 433M
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left → right: (DATA; VCC; GND)
Application environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Remark
1.VCC voltage module operating voltage and good power filtering;
2.Great influence on the antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor, the length of the antenna 433M of about 17cm;
3.Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source; frequency used to receive, decode and oscillation resistor should match with the transmitter.
