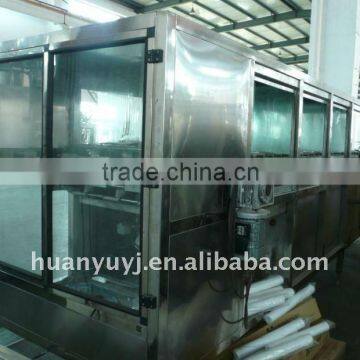

5 Gallon Washing Machine QGF-600

Machine

Model

QGF-300

Capacity

(b/h)

300

Filling head

2

Overall size

(mm)

4060*1500*1800

Power

Main machine

(kw)

8.8

Heating(kw)

6

Compressed air

Air pressure

0.6

Air consumption

0.3

Working steps

Manual barrel loading or automatic barrel loading

Main shaft run; the barrels pushed into the washer/filler/capper 3in1 machine

1. Lye liquid rinse

Inside rinse

20s*2

2. Drain

3. Sterilizing water rinse

Inside rinse

20s*2

4. Drain

5. Circle water rinse

Inside rinse

20s*2

Outside spray

20s*2

6. Pure water rinse

Inside rinse

20s*2

7. Drain

8. Water filling

9. Cap put-on

10. Pressing cap

                 Barrels out-feeding automatically with 3meters conveyor.

                        Finish the washing, filling,capping.

Pure water

rinsing consumption(liters)

1000

Model

QGF-100

QGF-200

QGF-300

QGF-450

QGF-600

QGF-900

QGF-1200

Filling heads

1

2

2-3

3

5

8

8

Volume(L)

18.9

18.9

18.9

18.9

18.9

18.9

18.9

Barrel size(mm) (Φ×H)

270×490

270×490

270×490

270×490

270×490

270490

270×490

Capacity(b/h)

100

200

300

450

600

900

1200

Air pressure(Mpa)

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.6

0.6

0.6

Air consumption (m³ /min )

0.37

0.37

0.6

0.8

1

1.5

1.8

Motor power

1.38

1.75

3.8

3.8

7.5

9.75

13.5

Rated voltage(V/HZ)

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

Weight(kg)

680

800

1500

2100

3000

3500

4500
