Home > Products > 3&5 Gallon Filling Line > 5 Gallon Barrel Drink Water Filling Machine(QGF-300)

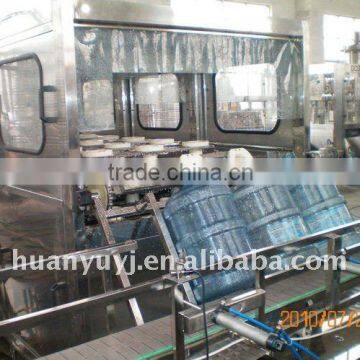

5 Gallon Barrel Drink Water Filling Machine(QGF-300)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Barrel | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Power | 1.38-13.5Kw | Place of Origin | Jiangsu, China | |
| Brand Name | HUANYU | Model Number | QGF-300 |
Product Description
Specifications
5 gallon barrel drink water filling machine1.Capacity: 60-800BPH
2.Volume:18.9L/5Gallon
3.With CE,UL,ISO,SGS..
4.Economy...
5 gallon barrel drink water filling machineBarrel water filling and packaging machine
QGF series barrel production line is specially used for 3&5 Gallon barrel drinking water. This machine integrates washing,filling,capping into one unit. It is the good ideal for produce the mineral water,distilled water,pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing. Mostly electric components are adopt SIEMENS,OMRON etc famous company. Electric component adopt import Air TAC famous brand product. The machine is advanced in construction,occupying small area,steady in performance,high in produce efficiency, high in automatization degree.easy in operation,which integrates machinery, electricity and pneumatics technologies together into one unit full automatic barreling machine.
TYPE | QGF-100 | QGF-240 | QGF-300 | QGF-600 | QGF-900 | QGF-1200 |
Filling heads | 1 | 2 | 3 | 8 | 8 | 4 |
Barrel Size (mm) | Φ276×490 | Φ276×490 | Φ276×490 | Φ276×490 | Φ276×490 | Φ276×490 |
Capacity (b/h) | 60-100 | 100-240 | 250-300 | 800 | 800 | 800 |
Gas Pressure | 0.4-0.6Mpa | |||||
Gas Consumption | 0.37 | 0.37 | 0.6 | 1 | 1.5 | 1.8 |
Power (KW) | 1.38 | 1.75 | 3.8 | 7.5 | 9.75 | 13.5 |
Voltage | 380V/50HZ | |||||
Outline Size (mm) | 3100×650×1550 | 3190×650×1550 | 3100×900×1650 | 3100×900×1650 | 3550×1100×1800 | 3800×1100×1800 |
Weight (kg) | 680 | 800 | 1500 | 3000 | 3500 | 4500 |
| Barrel Capability | 18.9 L | |||||
