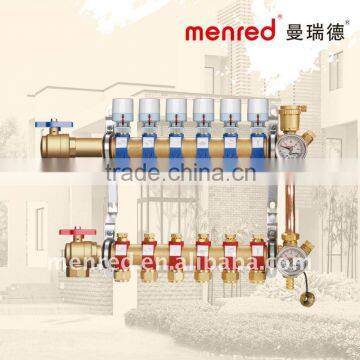

electric actuator+ 6-way brass manifold

FOB Price

USD $42.3 - $192 / Set

10 Sets(Min.Order)

Port FOB Shanghai or Ningbo
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	menred
Model Number	A9....		Type	HVAC Systems

Product Description

Specifications

1.Scaling prevention(keep powe online)
2..Body 9 zone large diameter
2,High Quality Yellow brass
3.Up-Cycling,Down-flowing

Water Heating Manifold Equipment System

2011 newest Manifold

Introduction

The distribution manifolds are designed for low-temperature hot water radiant panel heating systems.
The supply distribution manifold equipped with built-in balancing valves, and the return distribution manifold equipped with built-in shut-off valves suitable for electro-thermal actuator which is controlled by room thermostat to meet your individual requirement for comfortable room temperature

Features

Hot-stamped brass body
Nature color, surface anticorrosion processing
Outlets in composite with the main body to exterminate the leakage possibility of manifolds
Axial static seal technology
No O-ring for pipe fittings
Freestyle combination for multi-loops

Technical data

Connection : 1'' or 1-1/4''
Operating pressure : PN10
Medium temperature : +1'C....+110'C
Medium : water (Max. percentage of glycol is 60%)
Material : main pipe - brass
stem - stainless steel
O-ring - EPDM

Selection table

Model No.	Description	No.	Outlets	Composition
902	1''or 1-1/4''	2-loop	3/4'M	902*1
903	1'' or 1-1/4''	3-loop	3/4'M	903*1
904	1'' or 1-1/4''	4-loop	3/4'M	904*1
905	1'' or 1-1/4''	5-loop	3/4'M	905
906	1'' or 1-1/4''	6-loop	3/4'M	906
907	1'' or 1-1/4''	7-loop	3/4'M	9031+9041
908	1'' or 1-1/4''	8-loop	3/4'M	904*2
909	1'' or 1-1/4''	9-loop	3/4'M	903*3
910	1'' or 1-1/4''	10-loop	3/4'M	9032+9041


...................................................................................................

A7...Manifold Standard Access List:
