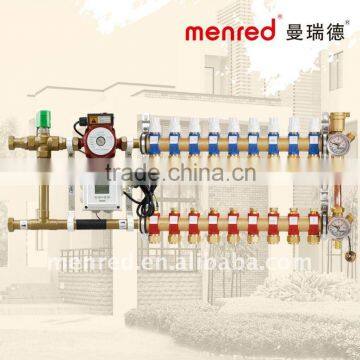

water-mixing center with floor heating manifold
USD $42.3 - $192
/ Set
10 Sets(Min.Order)
- 30 Piece / Pieces per Month
- FOB Shanghai or Ningbo
- Credit Card
You May Like
-
Stainless Steel Intelligent Manifold For Floor Heating, High Quality Stainless Exhaust Manifold
-
2014 menred water manifold For Under Floor Heating System
-
electric actuator+ 6-way brass manifold
-
menred european standard underfloor heating actuator manifold
-
Menred Stainless Steel Interlligent Manifold For Floor Heating, High Quality Stainless Manifold,2014 hot-selling Manifold
-
Stainless steel Water Manifold, High Quality stainless steel Water Manifold,Brass Plumbing Manifold for heating
Product Details
| Place of Origin | Zhejiang, China | Brand Name | menred | |
| Model Number | A9.... | Type | HVAC Systems |
Product Description
Specifications
1.Scaling prevention(keep powe online)2..Body 9 zone large diameter
2,High Quality Yellow brass
3.Up-Cycling,Down-flowing
Water Heating Manifold Equipment System
2011 newest Manifold
Introduction
The distribution manifolds are designed for low-temperature hot water radiant panel heating systems.
The supply distribution manifold equipped with built-in balancing valves, and the return distribution manifold equipped with built-in shut-off valves suitable for electro-thermal actuator which is controlled by room thermostat to meet your individual requirement for comfortable room temperature
Features
Hot-stamped brass body
Nature color, surface anticorrosion processing
Outlets in composite with the main body to exterminate the leakage possibility of manifolds
Axial static seal technology
No O-ring for pipe fittings
Freestyle combination for multi-loops
Technical data
Connection : 1'' or 1-1/4''
Operating pressure : PN10
Medium temperature : +1'C....+110'C
Medium : water (Max. percentage of glycol is 60%)
Material : main pipe - brass
stem - stainless steel
O-ring - EPDM
Operating pressure : PN10
Medium temperature : +1'C....+110'C
Medium : water (Max. percentage of glycol is 60%)
Material : main pipe - brass
stem - stainless steel
O-ring - EPDM
Selection table
Model No. | Description | No. | Outlets | Composition |
902 | 1''or 1-1/4'' | 2-loop | 3/4'M | 902*1 |
903 | 1'' or 1-1/4'' | 3-loop | 3/4'M | 903*1 |
904 | 1'' or 1-1/4'' | 4-loop | 3/4'M | 904*1 |
905 | 1'' or 1-1/4'' | 5-loop | 3/4'M | 905 |
906 | 1'' or 1-1/4'' | 6-loop | 3/4'M | 906 |
907 | 1'' or 1-1/4'' | 7-loop | 3/4'M | 903*1+904*1 |
908 | 1'' or 1-1/4'' | 8-loop | 3/4'M | 904*2 |
909 | 1'' or 1-1/4'' | 9-loop | 3/4'M | 903*3 |
910 | 1'' or 1-1/4'' | 10-loop | 3/4'M | 903*2+904*1 |
................................................................................................... | ||||
A7...Manifold Standard Access List:
