Home > Products > 10. Solar Inverter > 300W DC to AC Inverter With Battery Charger (FD-IC-300P)

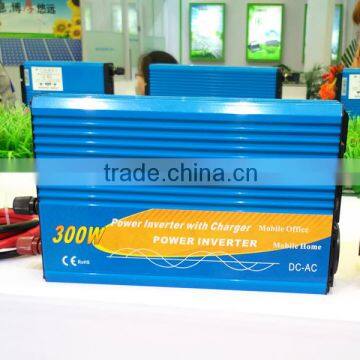

300W DC to AC Inverter With Battery Charger (FD-IC-300P)
- Shanghai /Ningbo
- T/T Credit Card
You May Like
-
500W DC to AC Inverter With Charger (FD-IC-500P)
-
3000W Off Grid DC to AC Pure Sine Wave Inverter (FD-IV-3000P)
-
1000W Off Grid DC to AC Pure Sine Wave Inverter With Several Protections For Applications (FD-IV-1000P)
-
1500W Off Grid DC to AC Pure Sine Wave Inverter (FD-IV-1500P)
-
2500W DC to AC Inverter With Charger (FD-IC-2500P)
-
30KW DC to AC Power Inverter (FD-GW-30000TL3)
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Inverter With Charger ,OEM,FADI | |
| Model Number | FD-IC-300P | Specification | Normal | |
| Application | Commercial | Output Voltage (V) | AC 220V | |
| Load Power (W) | Depend | Solar Power (W) | 300W | |
| Work Time (h) | 24 Hours |
Product Description
Inverter with charger:
Model: FD-IC-300P
Inverter with charger function:
1. Overload shutdown
2. Over temperature shutdown
3. Low voltage alarm
4. Low voltage shutdown
5. High battery voltage shutdown
6. Short circuit protection
7. Polarity reverse connection protection
Inverter with charger features:
1. Automatic protection against overload
2. Over temperature and low/high battery conditions
Inverter with charger Application:
1. Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans
2. Power Tools: drills, jigsaws, sanders and buffers
3. Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment
LED display shows output power and watt consumption
Inverter with charger specification:
Model No. | FD-IC-300P | |||
Output | AC Voltage | 110V 120V 220V 230V 240VAC | ||
Rated Power | 300W | |||
Peak Power | 600W | |||
Waveform | Pure sine wave(THD<3%) | |||
Frequency | 50 or 60Hz(±2%) | |||
LED Indicator
| Green LED for power on | |||
Red LED Fault Status | ||||
Input | No Load Current Draw | <0.8A | <0.8A | |
DC Voltage | 12V / 24V / 48V | |||
Voltage Range | 10.5~15.0VDC / 21.0~30.0VDC / 42.0~60VDC | |||
Efficiency | about 90% | about 90% | ||
Charger | Max circuit charger | 12V | 20A | |
24V | 10A | |||
Feature | Automatic switching | |||
Protection | Bat. Low Alarm | 10.5V / 21.0V / 42.0VDC | ||
Bat. Low Shutdown | 10.0V / 20.0V / 40.0VDC | |||
Over Load | Shut off output voltage, re-power on to recover | |||
Over Voltage | 15.5+/-0.5V / 31.0+/-1V / 62.0+/-2VDC | |||
Over Temperature | Shut off output voltage, re-power automatically after temperature goes down | |||
Output Short | Shut off output voltage, re-power on to recover | |||
Environment | Working Temp. | 0~+40°C | ||
Working Humidity | 20% ~ 90% RH non-condensing | |||
Storage Tem. Humidity | -30°C~+70°C/22°F~+158°F | |||
Others | Dimension | 420×340×430mm(L×W×H) | ||
Packing | 4+/-0.5 kg | |||
Application | Home and Office appliances, Power tools and Portable equipment, Vehicle,Yacht and Solar power system… | |||
Inverter with battery charger workshop:
