China top quality coal plate chain bucket elevator manufacturer for hot sales

China top quality coal plate chain bucket elevator manufacturer for hot sales

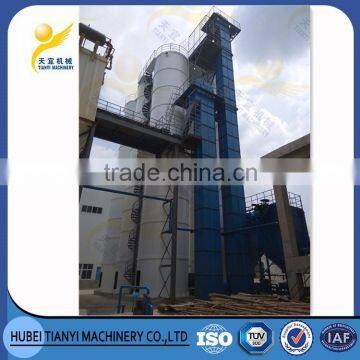

TB(NE) Series Bucket Elevator, the full name is plate sleeve roller chain bucket elevator (Plate chain bucket elevator for short),with the plate sleeve roller chain, it suits for conveying those dry, loose and easy to throw materials such as coal, gravel, ore, pebbles, etc., the temperature of the material is no more than 250℃.

Capacity of this model is 16 ~ 480 m3/h, lifting height is 5 ~ 40 m.

Main Features

7 Engineered and manufactured to meet specific customer requirements .

Machine Parts

Name:  Plate link chain & buckets

Brand: TIANYI

Original: CHINA

Chain is the short pitch plate type sleeve roller drag chain.

Name:   steel buckets
Brand: TIANYI
Original:CHINA

Head section & Tail section

Upper section(head section) is made of drive sprocket, top case, in half cover and drive plate. Drive sprocket running make the chain buckets move from bottom to top, then lift the material.
Lower section (Tail section) is made of take-up sprocket group, bottom case, heavy hammer tension device, inlet, skirt plate and inspection door. Take-up device with the aid of a heavy hammer and the self weight of take-up sprocket group. Make the chain’s tension constant. When the chain wear elongation, can automatic adjustment the wheel base.Inspection door is convenient for take apart the buckets and chains.Lower door is used for cleaning the material.

HU BEI TIANYI MACHINERY CO.,LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprises, which specialize in designing & producing & installing some specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province, it is only 50 kilometers far from the Three Gorges Dam & 20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital assets reaches nearly about 89 millions and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal, building materials industry.
Our main products: conveying equipment, crushing equipment, screening equipment, dust removal equipment.
Integrated system: material conveyor system, dust removal system.
Tianyi Machinery have strong technical force, with research and development center, technical department, and we have got 25 national patent technologies.
