Chain Bucket Elevator Conveyor for Powder or Granular Materials Lifting

Chain bucket elevator conveyor for powder or granular materials lifting

TB(NE) Series Bucket Elevator, the full name is plate sleeve roller chain bucket elevator (Plate chain bucket elevator for short),with the plate sleeve roller chain, it suits for conveying those dry, loose and easy to throw materials such as coal, gravel, ore, pebbles, etc., the temperature of the material is no more than 250℃.

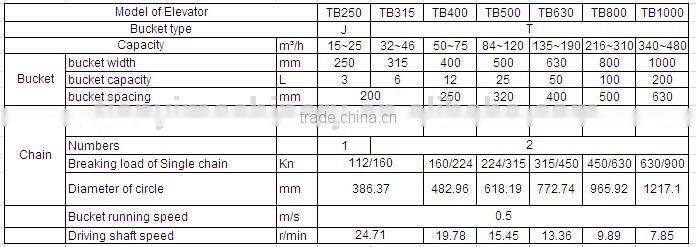

Capacity of this model is 16 ~ 480 m³/h, lifting height is 5 ~ 40 m.

Main Features

7 Engineered and manufactured to meet specific customer requirements .

Machine Parts

Name:  Plate link chain & buckets

Brand: TIANYI

Original: CHINA

Chain is the short pitch plate type sleeve roller drag chain.

Name:   steel buckets
Brand: TIANYI
Original:CHINA

Head section & Tail section

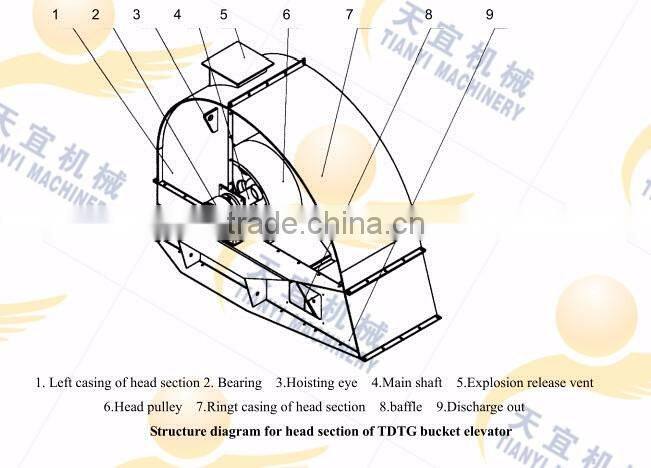

Upper section(head section) is made of drive sprocket, top case, in half cover and drive plate. Drive sprocket running make the chain buckets move from bottom to top, then lift the material.

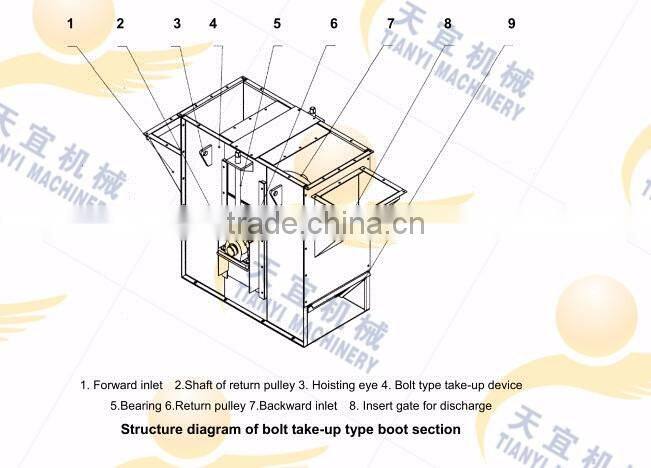

Lower section (Tail section) is made of take-up sprocket group, bottom case, heavy hammer tension device, inlet, skirt plate and inspection door. Take-up device with the aid of a heavy hammer and the self weight of take-up sprocket group. Make the chain’s tension constant. When the chain wear elongation, can automatic adjustment the wheel base.Inspection door is convenient for take apart the buckets and chains.Lower door is used for cleaning the material.
