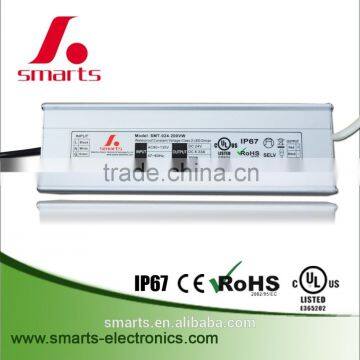

ce ul 230v 110v ac 12v dc 200w transformator

FOB Price

US$ 15 - 21 / Piece

1 Piece(Min. Order)

Port xiamen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	SMARTS
Model Number	SMT-012-200VW	Output Power	Other, 200W
Output Type	Single	Input Voltage	Other, 90-135/ 170-265v
Output Voltage	12V	Output Frequency	47-63Hz
Output Current	16.67A

Product Description

ce ul 230v 110v ac 12v dc 200w transformator

Product Description

SPECIFICAION
MODEL		SMT-012-200VW	SMT-024-200VW	SMT-036-200VW
OUTPUT	DC VOLTAGE	12V	24V	36V
	RATED CURRENT	16.67A	8.33A	5.55A
	CURRENT RANGE	0~16.67A	0~8.33A	0~5.55A
	RATED POWER	200W	200W	150W
	RIPPLE&NOISE(max)	150mV	150mV	150mV
	VOLTAGE TOLERANCE	±0.5V	±0.5V	±0.5V
	SETUP RISE TIME	80ms/110VAC, 220VAC
	HOLD UP TIME(Typ.)	60ms/110VAC, 220VAC
INPUT	VOLTAGE RANGE	90~135VAC / 170~265VAC
	FREQUENCY RANGE	50~60Hz
	POWER FACTOR(Typ.)
	EFFICIENCY(Typ.)	>82%	>82%	>82%
	AC CURRENT(Typ.)	1.85A/110VAC, 220VAC
	INRUSH CURRENT (Typ.)	COLD START 50A/110VAC, 220VAC
PROTECTION	Short circuit	Protection type:recovers automatically after condition is removed
	Overload	overload protected@145-160% above peak rating
	Over temperature	Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT	WORKING TEMP.	-30~+55℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20~99% RH non-condensing(Waterproof)
	STORAGE TEMP.,HUMIDITY	-40~+80℃,10~99%RH
SAFETY&EMC	SAFETY STANDARDS	CE UL Mark(EMC,LVD),IP67
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC IP-GND:1.5KVAC
	EMC Test Standards	EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
		EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006

Feature:

* IP67 design for indoor or outdoor installations
* Protections:Short circuit/Overload/Over temperature
* Cooling by free air convection
* 100% full load burn-in test
* Suitable for LED lighting
* Products through UL CE,RoHS Certification
* 2 years warranty

Packing and Shipping

	G.W/ctn	Qty/ctn	Carton Size(mm)
ce ul 230v 110v ac 12v dc 200w transformator
1300g/pcs	13.5kg/ctn	10pcs	475298185mm

MOQ: 1 pcs
Payment: T/T, Western Union, Paypal, Trade Assurance.
Delivery: 7 working days for sample order,12 working days for 500pcs.
FOB , EXW and CIF all are available.
Shipping freight are quoted under your requests.
Loading port: Xiamen
Discounts are offered based on large quantities.
