Home > Products > 0-10v dimmable LED driver > led light bulbs driver ac dc pwm dimmable 300ma 500ma constant current

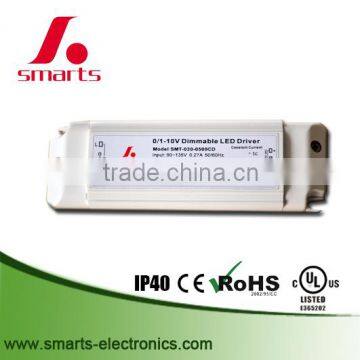

led light bulbs driver ac dc pwm dimmable 300ma 500ma constant current
- xiamen
- Credit Card
You May Like
-
PWM 0-10v dimmable led power supply 12V 100W led driver FCC ETL listed
-
10A transformer 230v to 12v dali dimmable 120w
-
0-10v PWM dimming led driver CE FCC ETL 1400ma 100w led driver
-
ac to dc ul 80w led downlight dimmable power supply
-
ETL FCC listed 2000ma 100W 0-10v dimmable Waterproof power supply
-
waterproof 700ma led 0-10v dimmable driver for 60w led panel light
Product Details
| Place of Origin | Fujian, China | Brand Name | SMARTS | |
| Model Number | SMT-030-0500CD | Output Power | Other, 15watt | |
| Output Type | Single | Input Voltage | Other, 100-265vac | |
| Output Voltage | 15-30V | Output Frequency | 47-63Hz | |
| Output Current | 500mA |
Product Description
led light bulbs driver ac dc pwm dimmable 300ma 500ma constant current
Specification
Model | SMT-030-0500CD | SMT-025-0700CD | SMT-035-0500CD | SMT-018-0350CD | ||
Output | DC Current | 500mA | 700mA | 500mA | 350mA | |
Current Accuracy | ±3% | |||||
Voltage Range | 15-30V | 15-25V | 20-35V | 10-18V | ||
Rated power | 15W | 17.5W | 17.5W | 6W | ||
Input | Voltage Range | 100~265VAC | ||||
Frequency Range | 47~63HZ | |||||
PF(Typ.) | PF>0.9 | |||||
Full Load Efficiency(Typ) | >86%(110V) >88%(220V) | >86%(110V) >88%(220V) | >86%(110V) >88%(220V) | >86%(110V) >88%(220V) | ||
AC Current (Typ.) | 0.104A(110V) 0.106A(220V) | 0.102A(110V) 0.103A(220V) | 0.102A(110V) 0.103A(220V) | 0.101A(110V) 0.103A(220V) | ||
Leakage current | <0.72mA/110VAC / <0.75mA/220VAC | |||||
Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||
Over Current | ≤1.4*Iout | |||||
Over temperature | 100℃±10℃ shut down o/p voltage, re-power on to recover | |||||
Environment | Working TEMP. | -40~+50℃ | ||||
Working Humidity | 20~95%RH,non-condensing | |||||
Storage TEM., Humidity | -40~+80℃,10~95%RH | |||||
efficient | ±0.03%/℃(0~50℃) | |||||
Vibration | 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes | |||||
Safety&EMC | Safety standards | EN61347-1 EN61347-2-13. IP20 | ||||
Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||||
Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | |||||
EMC EMISSION | Compliance to EN55015,EN61000-3-2 (≥50%Load) | |||||
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level | |||||
Others | Weight | 0.2Kg | ||||
Size | 140*45*27mm(L*W*H) | |||||
packing | 320*280*215mm/50pcs /CTN , 145*50*36mm for inner box | |||||
Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation . | |||||
smarts LED drivers application
constant volatge led drivers
| constant current led drivers
| switching power supplies
|
triac dimmable led drivers
|
AC-DC adapter
|
DALI dimmable led drivers
|
what is the packing situation ??
MOQ: 1 PCS
Payment : T/T Western union Paypal Trade Assurance
Delivery : 7 working days for sample order , 12 working days for 500pcs
Shipping term : FedEx DHL UPS TNT
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd??
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity
power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 3 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
Why choose us?
1. We are UL/cUL audited LED drivers/power supplies enterprise in China.
2. Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. It will guarantee your order 100% safe!
3. Price is negotiable if you have large quantity demand.
4. 100% QC inspection Before Shipping.
5. Best Quality & Best Service with Competitive price.
6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.decision for the shipping terms will be made according to your requirements.
7. We have our engineer team, if you have any question about your LED applications, let us know freely, we will give you the best solution.
8. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
9. OEM design & OEM packing welcome.
10. Samples will be ready within 7 working days
Our service & FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 10pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Our goal is to provide you the right product and make you satisfied, so please don’t hesitate to contact us !
