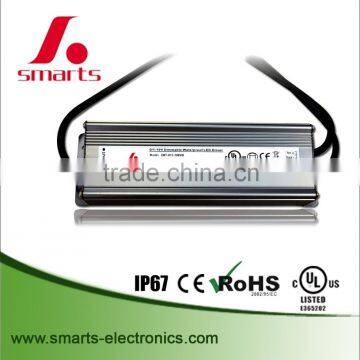

dimmable led driver LED power supply IP67 120W CE UL approved DALI dimming driver

 Specifications:

1. Dimming type: 0-10v  led power supply; AC-DC Dimmable LED power supplly
2. I/P:100~265V, 47~63Hz
3. Ambient temp.:-20 degree~40 degree full load
4. Efficiency > 88%
5. PFC> 0.92
6. size: 230*68*45mm
7. packing: 10pcs/ctn
8. RippleI & Noise (max.) : 150mVp-p
9. Voltage Tolerance : ±5%
10. Line Regulation : ±1%
11. Load Regulation : ±2%
12. Setup, Rise Time : 500ms, 120ms / 230VAC
13. 3 years warranty

(We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

1. waterproof rate: IP67
2. High reliability, Dualiable operation.
3. Cooling by nature.
4. 100% full load burn-in test
5. Protections: Short circuit / Overload / Over voltage / Over temperature
6. Current Limit : ±5% rated output current
7. Protection type : Constant current limiting type; Shut down o/p voltage, re-power on to recover
8. Over Voltage : Shut down and latch off o/p voltage, re-power on to recover
9. Over Temperature : 85°C±10°C

Environment:

1. Working Temperature : -25 ~ +50°C
2. Working Humidity : 20 ~ 90% RH non-condensing
3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety:

1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2. Withstand Voltage : I/P-O/P: 3000KVAC
3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC
4. MTBF : 50Khrs min. MIL-HDBK-217F (25°C )

Product parameters:

item NO.	INPUT VAC	Input  Frequence (Hz)	OUTPUT CURRENT (Amp)	OUTPUT VOLTAGE (vDC)	OUTPUT POWER (Watt)	IP rate
SMT-012-120VD	100-265Vac /170~305Vac	47-63Hz	0-10A	12V	120W	IP67
SMT-024-120VD	100-265Vac /170~305Vac	47-63Hz	0-5A	24V	120W	IP67
SMT-012-150VD	100-265Vac /170~305Vac	47-63Hz	0.37-12.5A	12V	150W	IP67
SMT-024-150VD	100-265Vac /170~305Vac	47-63Hz	0.18-6.25A	24V	150W	IP67
SMT-012-180VD	100-265Vac /170~305Vac	47-63Hz	0.45-15A	12V	180W	IP67
SMT-024-180VD	100-265Vac /170~305Vac	47-63Hz	0.25-7.5A	24V	180W	IP67
SMT-012-200VD	100-265Vac /170~305Vac	47-63Hz	0.6-16.67A	12V	200W	IP67
SMT-024-200VD	100-265Vac /170~305Vac	47-63Hz	0.25-8.3A	24V	200W	IP67





Applications:
Our products are widely used in various industries, such as

• indoor/outdoor LED illuminating lights,
• LED Neon,
• LED urban Decoration
• LED Lighting Advertising,
• LED Display,
• Safety Protection Apparatus,
• Telecommunications,
• Networks,
• Vehicle Lights, Controller Panels, etc.
