electric hard seal knife gate valve stainless steel material
- shanghai tianjin qingdao
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Low Pressure | Power | Other, Electric | |
| Material | Other, SS,CS,CI | Temperature of Media | Medium Temperature | |
| Media | Other, slurry,syrup,pulp,sewage,coal ash,slag and water mixture,etc | Port Size | dn50-dn600 | |
| Place of Origin | Henan, China | Brand Name | gaoshan | |
| Application | General |
Product Description

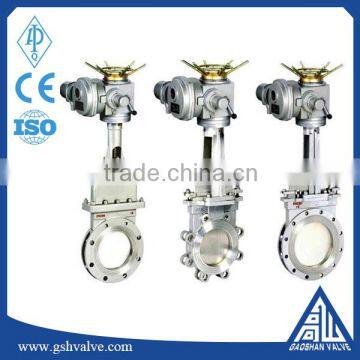

Electric hard seal knife gate valve stainless steel material
Specification
1.Size:DN50-DN600(2"-24")
2.Pressure:PN0.6MPa,PN1.0MPa,PN1.6MPa(Class150)
3.Standard:API600,API603,BS1414,DIN3352,ISO10434
Description of products
1. Vlave disc controls opening and closing. Motion direction is perpendicular to flow direction.
2. Small fluid resistance,sealing surface withstand less erosion and erosion by the media.
3. Knife gate valve has smaller installation space,work pressure is low,no accumulation of debris.
Materials of main parts
valve body:stainless steel,carbon steel,cast steel
Valve stem:stainless steel
Valve gate:stainless steel
Sealing surface:Rubber,PTFE,S.S, metal seal
The main technical data
1.Shell test(MPa):1.5PN
2.Seal test(MPa):1.1PN
3.Working temperature:Rubber ≤ 80℃,PTFE seal ≤ 180℃,hard seal ≤ 425℃
4.Suitable Media: slurry,syrup,pulp,sewage,coal ash,slag and water mixture,etc
Pictures of products
Our factory and equipments
Application
Our advantage
1.Professional manufacturer for over 40 years
2.Provide sample ,if necessary
3.Sufficient stock can guarantee delivery on time
4.OEM is acceptable
