Home > Products > Digital Headend equipment > DVB- C SD IRD digital satellite receiver DVB digital TV digital headend

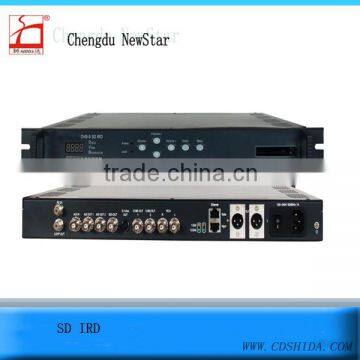

DVB- C SD IRD digital satellite receiver DVB digital TV digital headend
- 1 Piece / Pieces per Month
- chengdu
- T/T Credit Card
You May Like
-
DVB-S SD IRD SD IRD digital satellite receiver DVB digital TV digital headend
-
DVB-T SD IRD digital satellite receiver DVB digital TV digital headend
-
DVB-S2 SD IRD digital satellite receiver DVB digital TV digital headend
-
star max digital satellite receiver
-
DVB-T Basic Model SD IRD digital satellite receiver DVB digital TV digital headend
-
DVB-S2 Basic model SD IRD digital satellite receiver DVB digital TV digital headend
Product Details
| Place of Origin | Sichuan, China | Brand Name | SHIDA | |
| Model Number | SDC-3000I |
Product Description
Specifications
decode transport stream (compliant with MPEG2) from ASICAM module( option)
2 ASI outputs and digital video & audio output
Features
1,MPEG-2 digital & Fully DVB compliant
2.QPSK demodulation support
3.Two routes MPEG-2 transport stream output
4.QPSK modulation frequency: 950~2150MHz, symbol rate:2~45Msps 5.User can edit various satellites and transponders information
6.PAL / NTSC format TV
7.Can receive C / Ku-band SCPC / MCPC information from Satellite
8.256 colors display
9.PAL / NTSC automatic conversion
10.Channels automatically saved
11.2 CVBS outputs, 2 AUDIO outputs
12.2 PCMCIA Interfaces
13.One RJ45 interface, support NMS, TCP / IP network transport protocols to convenient network management 14
14.2 TS stream outputs, One TS Stream Input
15.One S-Video
16.2 separate CIM modules, each supports up to decrypt 8 channel Programs
17.One LNB input, one LNB output
18.2 Video outputs
DVB-C SD IRD:
Input Frequency Range: | 47-862MHz |
Symbol rate: | 0.45-7.0MBauds |
Input Level: | -15-20dBmV |
Demodulation Mode: | 16/32/64/128/256 |
Series Specification
Ethernet | Connector | RJ-45 |
Interface Type | 10/100 Base-T | |
Protocols | TS Over IP: UDP ; NMS: UDP | |
DVB-CI | Descrambler | DVB-CSA |
Smart Card interface | ISO7816 | |
Separate (between TS, converter and card), interface | PCMCIA | |
Video output | 2 CH CVBS | BNC interface, |
Audio output | Stereo unbalanced audio | BNC interface, |
ASI input | BNC interface | Input impedance 75 |
Max transport rate | 54Mbps | |
ASI output | BNC interface | Output impedance 75 |
Max transport rate | 54Mbps | |
Physics interface | DB9 Female | |
General | Voltage | AC :110-240V~, 50/60Hz |
Power | <20W(Max) | |
Temperature | 0~40°C(Operation); 10°C~35°C(Storage) | |
Humidity | 10%~90% | |
Dimension | 44mm*482mm*360mm | |
Approx weight | 3.2kg |
