Common Single Side Printed Circuit Board PCB
- Shanghai Common Single Side Printed Circuit Board PCB
You May Like
-
Customized Service for Flexible Printed Circuit Membrane Switch
-
Factory Exported Directly Double Side Polyimide PCB Very Fast Produce Time and Best Quality
-
Common High Quality Custom-made Multilayer Pcba Manufacturer
-
Customized PCB Assembly With OEM Service
-
High Quality Double Layers PCBA Manufacturer in China
-
Inverter Pcb Assembly Pcb Copy Service Manufacturer
Product Details
| Place of Origin | Jiangsu, China | Brand Name | FLEXKYS | |
| Model Number | Custom | Application | Telecommunication Equipment | |
| Keypad Button Material | Other, PC |
Product Description
Common Single Side Printed Circuit Board PCB

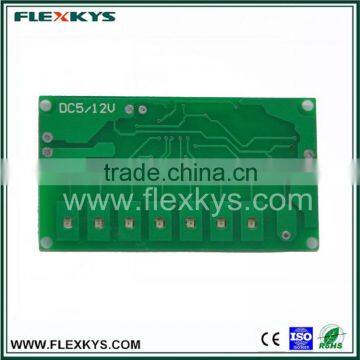

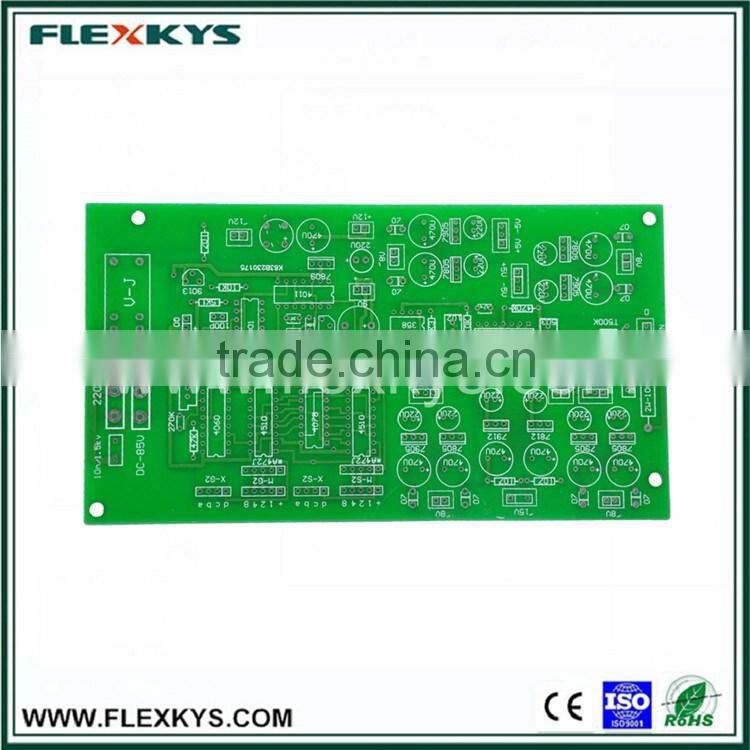

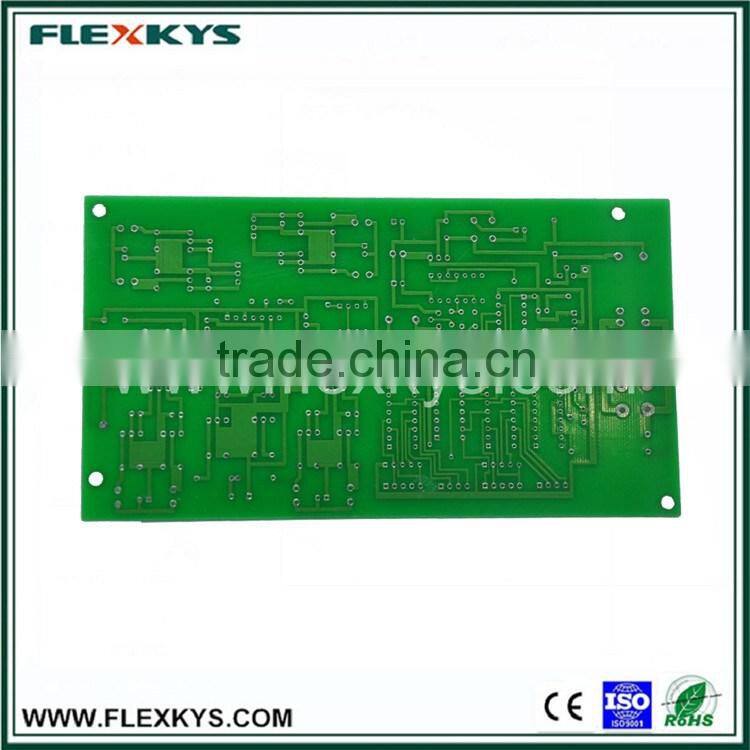

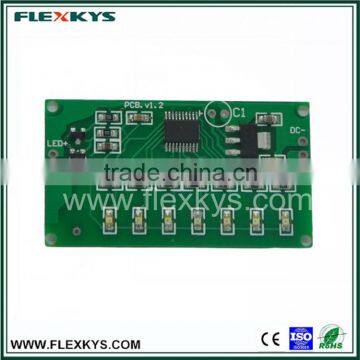

Pictures PCB PCB PCB PCB PCB
Material PCB PCB PCB PCB PCB
| Part | Ordinary Material | ||
| Finish | Specification | ||
| Graphic Overlay | PC | Gloss | 0.175/.25/.35/.5 mm thickness |
| Matt | 0.175/.25/.35/.5 mm thickness | ||
| PET | Fine Texture | 0.15/.20 mm thickness | |
| Valet Texture | 0.15/.20 mm thickness | ||
| Gloss with Hard Coat | 0.18 mm thickness | ||
| Top Adhesive | PET Double-sided adhesive | 0.10/.22/.28 mm thickness | |
| Paper Double-sided Tape | 0.10 mm thickness | ||
| Transfer Tape | 0.06/.12 mm thickness | ||
| Retainer | PET | Gloss | 0.125 mm thickness |
| Spacer | PET Double-sided Tape | 0.225/.275 mm thickness | |
| Circuit Layer | PET | Gloss | 0.1/.125 mm thickness |
| Rear Adhesive | Paper Double-sided Tape | 0.10 mm thickness | |
| Transfer Tape | 0.06/.12 mm thickness | ||
| Connector | Pin | Metal,Male/Female 2.54mm | |
| House | Female,2.54mm | ||
| Conductive Layer | Silver Paste | Acheson ELECTRODA 820B | |
| Carbon Paste | Acheson ELECTRODA 423SS | ||
| Insulation Ink | Acheson ELECTRODA 452SS | ||
Structure membrane switch membrane switch membrane switch membrane switch
Electrical Performances PCB PCB PCB PCB PCB
| Wire Resistance | 0.5mm width,≤1Ω/cm | Rated Current | 25-100mA,0-30V DC |
| Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
| Working Life | >500k times | Working Temperature | -30℃-70℃ |
| Working Humidity | 40℃,98%RH | Withstand Voltage | 1500V DC |
| Feedback Time | 10ms | Tail Folding | R>1,180 |
Quality Control Standard
| Overlay Printing | Spelling mistake | Not allowed |
| Incorrect Font | Not allowed | |
| Dimension error | >0.2mm is Not allowed | |
| Color | Less than 2 levels with the specified Pantone color | |
| Dot impurities | Diameter less than 0.2mm Distance between two impurities is more than 50mm The number of impurities is less than 2 within 100cm² | |
| Linear impurities | Width is less than 0.2mm,length is less 0.4mm in panel surface.Distance between two impurities is more than 50mm | |
| Window impurities | Diameter is less than 0.2mm in the center of the window | |
| Circuit layer Printing | Routing error | Not allowed |
| Circuit Line width | >0.2mm is not allowed | |
| Position offset | >0.2mm is not allowed | |
The key size deviation | >0.2mm is not allowed | |
| Dot impurities | Diameter less than 0.4mm 20mmThe number of impurities is less than 3 within 100cm² | |
| Linear impurities | Width is less than 0.3mm, length is less than 1mm Distance between two impurities is more than 50mm. Impurities can not across two lines. The number of impurities is less than 3 within 100cm² | |
| Loose | Not Allowed | |
| Askew | Obvious, Not Allowed | |
| Appearance | Product layered, the edge cracking | Not allowed |
| Stains | Not allowed | |
| Damage | Not allowed | |
| Performance | Life of single button | With usual operation method,more than 500K times |
Service life of the switch | In the standard environment and operation method, it is more than 1 year. |
First put into a polybag per 50 pcs usually, seperated by cardboard, then paked into a 5-layer carton. According to clients' special requirements.
Delivery Detail:
10-15 days after getting payment.
Shipping: by air, by sea & expressage
Welcome to our Global Sources Electronic Components Show 2016
Name: Global Sources Electronic Components Show
Date: 11th-14th, April 2016
Place : Asia World-Expo, Hong Kong
Booth No.: 9G07
We will wait for you! membrane switch membrane switch membrane switch membrane switch
Welcome to Nanjing Momao(Flexkys) Electronic Technology Co., Ltd
Nanjing Momao (Flexkys)Electronic TechnologyCo., Ltd is a customer focused contract manufacturer with10years of experience in manufacturing qualified membrane switch products, including PCB Membrane Switch, Copper Flex Membrane Switch,Tactile and Non-tactile Membrane Switch, LED Integrated Membrane Switch , Capacitive Touch Switch,Metal Dome Membrane Swwitch, Poly Dome Membrane Switch,FPC Membrane Switch, Graphic Overlays &Panels&Labels, Silicone keypads&Keyboards and Rubber Keyboards&Keypads, Printed Circuits,etc.
With Nanjing Momao (Flexkys)Electronic Technology Co., Ltd as your collaborating partner we can offer development of prototypes customized production flow and volume production. The size of the contributes the benefits of a smaller companies flexibility, combined with the professionalism and competence of a bigger organization.
To a large extent we can offer customized solutions to our customers both concerning products and logistics.
Our most significant clients are represented within the following branches: electronic scales, safety equipment, household appliance, medical,automotive, and industrial control.
Certifications
membrane switch membrane switch membrane switch membrane switch
1. How to make an order?
Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
2. Sample available?
Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
3. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
4. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 10~15 days after payment received.
5. Payment terms:100% T/T in advance.
membrane switch membrane switch membrane switch membrane switch
Our Service &Advantage
ISO9001:2008 Quality Assurance System
Over 10 years customized manufacturing experience.
Sample is free, you just need to bear the shipping cost.
Customized sourcing , purchasing &manufacturing service.
Help clients to upgrade their design &improve the quality of products.
Original Equipment Manufacturing (OEM)&Original Design Manufacturing (ODM) are welcome.
