FPC Copper Flexible Printed Circuit Membrane Switch Made in China

What are Copper Flex Membrane Switches?

FPC Copper Flex membrane switches can be produced using polyester or polyimide as the base material, depending on your interface requirements. A very thin sheet of copper is laminated to the flexible film substrate then chemically etched away, leaving copper traces. The etching process is not environmentally friendly due to the chemicals used, and is also more expensive than screen printing the silver traces used in Silver Flex membrane switches. Copper Flex switches can be constructed as:

• Single-sided – conductive traces one side of the film substrate
• Double-sided – conductive traces both sides of the film substrate
• Multi-Layer flex – a laminated “sandwich” of numerous layers with conductive traces
• Rigid-Flex – a laminated combination of a Copper Flex switch with a rigid FR4 PCB membrane switch

What are the Advantages of Copper Flex Membrane Switches?

Copper Flex membrane switches are ideal for smaller designs where dense circuit patterns or trace routing limitations exist. This design also allows the ability to accommodate the complex circuit patterns of a FR4 rigid printed circuit board with the flexibility of a membrane switch. Copper Flex keypads also have the advantage of being able to hard solder active and passive components into the assembly, making it a good choice in high-vibration, high-reliability environments.

What are the Copper Flex Membrane Switch Design Options & Considerations?

• Single-sided, double-sided, and multi-layer designs available
• Lower electrical resistance and higher conductivity vs. traditional Silver Flex membrane switches
• Tight trace routing capabilities
• Same thin profile and flexibility as Silver Flex Membrane Switches
• Plating options can be tin-lead, nickel, or gold
• Tactile and non-tactile with either metal or polyester tactile domes
• Pillow or rim-embossed graphic overlays
• LEDs and other components can be soldered and are more robust
• Graphic overlays that can be digitally printed, screen printed, or a combination of both
• The graphic overlays can incorporate transparent and tinted display windows, as well as selective textures and UV hardcoat surface finishes

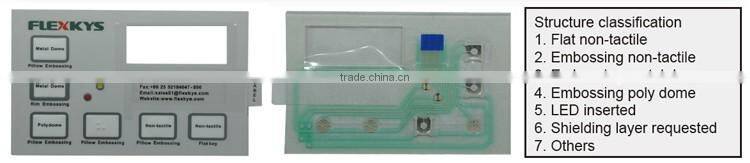

Comparison Chart

Pictures

Our Service & Advantage

ISO9001:2008 Quality Assurance System

Over 10 years customized manufacturing experience.

Sample is free, you just need to bear the shipping cost.

Customized sourcing, purchasing & manufacturing service.

Help clients to upgrade their design & improve the quality of products.

Original Equipment Manufactruing (OEM) & Original Deisgn Manufacturing (ODM)are welcome.

Our sample:

Welcome to Nanjing Momao(Flexkys) Electronic Technology Co., Ltd

    Nanjing Momao Electronic Technology Co., Ltd is a customer-oriented manufacturer with 10 years of experience in manufacturing qualified membrane switch products, including silver flex membrane switch, PCB/FPC/silicone rubber membrane keypad, graphic overlay, display window diaphragm, ect.
    Nanjing Momao Electronic Technology Co., Ltd possesses advanced production equipment, skilled management personnel and well-trained workers. Every production process is in compliance with the standards of IS0 9001: 2008 strictly. We established a complete quality management system, to ensure strictness and close linking from raw material procurement to deliver. We introduced advanced computer testing equipment to ensure our product qualified.

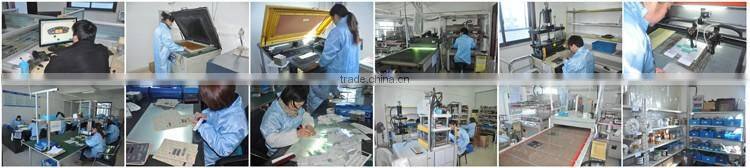

Production View
