OEM flexible Printed Circuit fpc

FOB Price

USD $0.1 - $5 / Piece

500 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

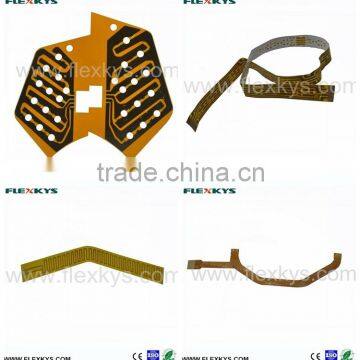

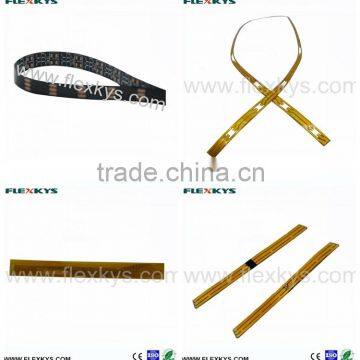

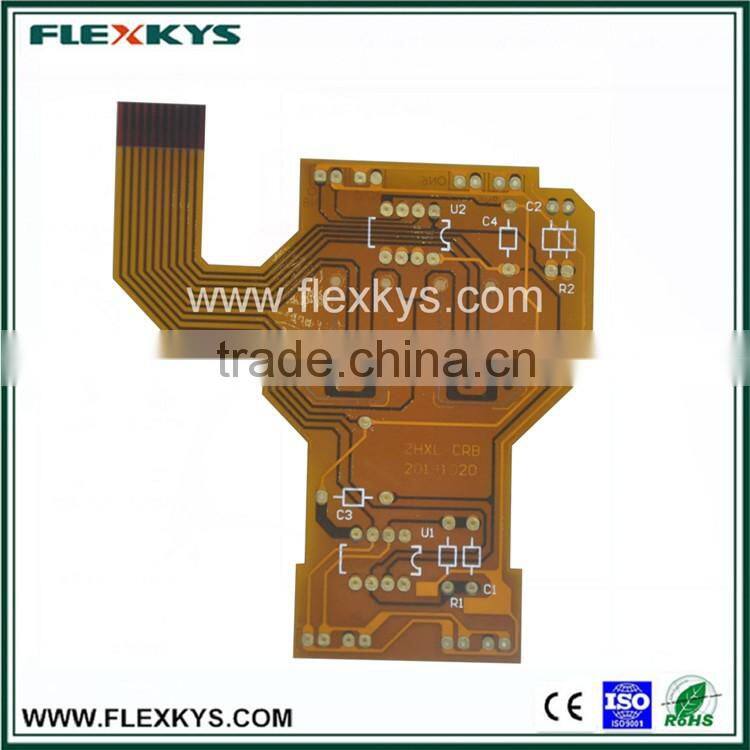

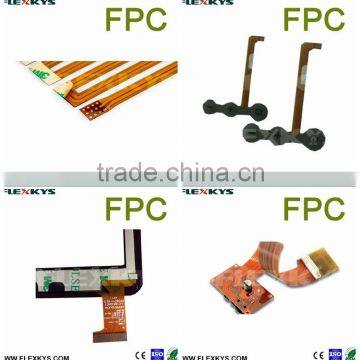

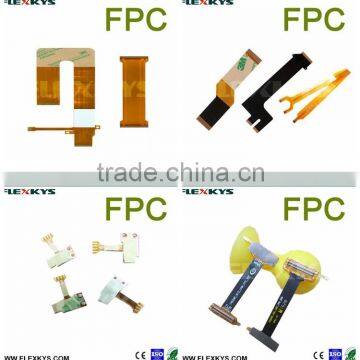

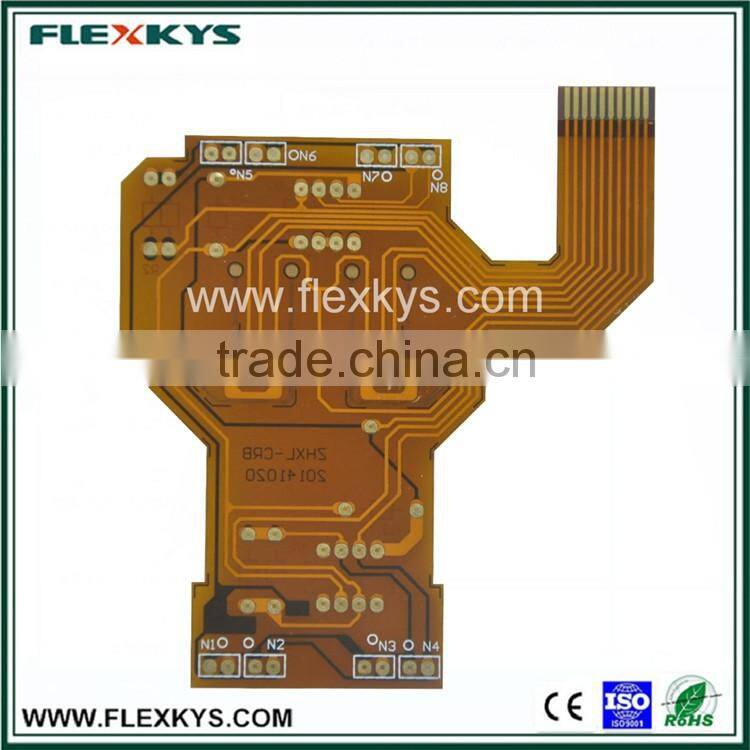

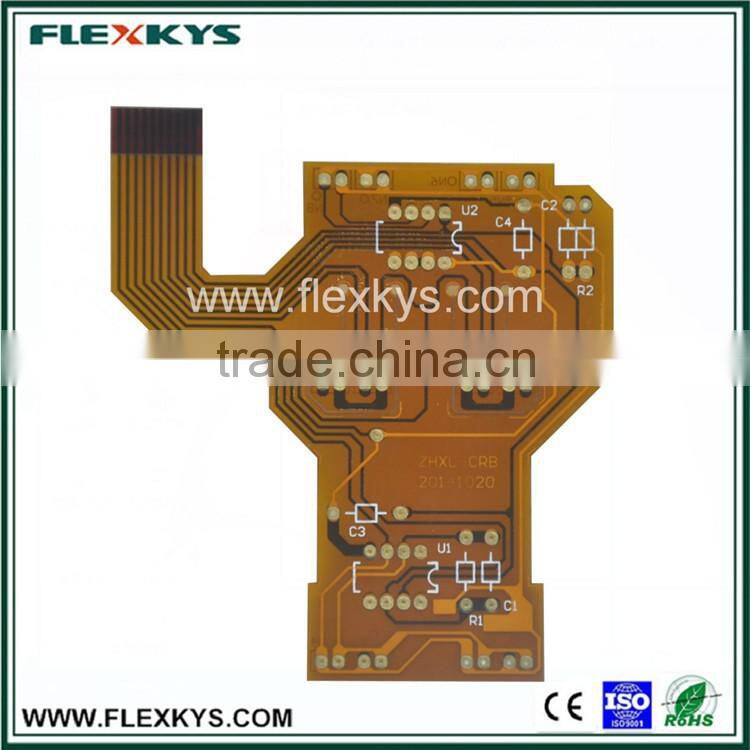

OEM flexible Printed Circuit fpc S mall FPC Flexible Printed Circuit fpc FPC FPC

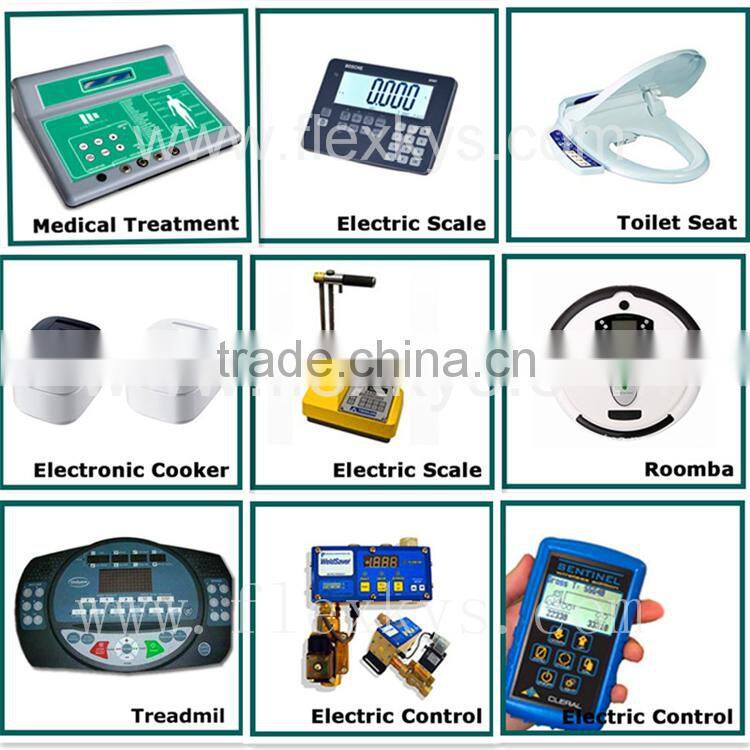

Product Application

Product Applications

QC Standards

Quality Control Standard

Overlay Printing	Spelling mistake	Not allowed
	Incorrect Font	Not allowed
	Dimension error	>0.2mm is Not allowed
	Color	Less than 2 levels with the specified Pantone color
	Dot impurities	Diameter less than 0.2mm Distance between two impurities is more than 50mm The number of impurities is less than 2 within 100cm²
	Linear impurities	Width is less than 0.2mm,length is less 0.4mm in panel surface. Distance between two impurities is more than 50mm
	Window impurities	Diameter is less than 0.2mm in the center of the window
Circuit layer Printing	Routing error	Not allowed
	Circuit Line width	>0.3mm is not allowed
	Position offset	>0.4mm is not allowed
	The key size deviation	>0.2mm is not allowed
	Dot impurities	Diameter less than 0.4mm Distance between two impurities need be more than 20mm The number of impurities is less than 3 within 100cm²
	Linear impurities	Width is less than 0.3mm, length is less than 1mm Distance between two impurities is more than 50mm. Impurities can not across two lines. The number of impurities is less than 3 within 100cm²
Connector	loose	Not Allowed
Connector	askew	Obvious,Not Allowed
Appearance	Product layered, the edge cracking	Not allowed
	stains	Not allowed
	damage	Not allowed
Performance	Life of the single button	With usual operation method,more than 500K times
Performance	Service life of the switch	In the standard environment and operation method, it is more than 1 year.

Packaging & Shipping

Packaging detail

First put into a polybag per 50 pcs usually, seperated by cardboard, then paked into a 5-layer carton.

According to clients' special requirements.

Delivery Detail:

10-15 days after getting payment.

Shipping: by air, by sea & expressage.

Our Services

ISO9001:2008 Quality Assurance System

Over 10 years customized manufacturing experience.

Sample is free, you just need to bear the shipping cost.

Customized sourcing, purchasing & manufacturing service.

Help clients to upgrade their design & improve the quality of products.

Original Equipment Manufactruing (OEM) & Original Deisgn Manufacturing (ODM)are welcome.
